Appendix A - Connector Pin Assignments
Introduction
This appendix provides connector pin assignment tables for the Compaq LTE
Elite and the SmartStation expansion base. For more information on
connectors, refer to Section 1.5 for connectors located on the computer and
to Section 6.5 for connectors located on the expansion base.
NOTE: The signals in all tables of this appendix are considered active high
unless otherwise indicated by an asterisk (*).
A.1 Connector Pin Assignments

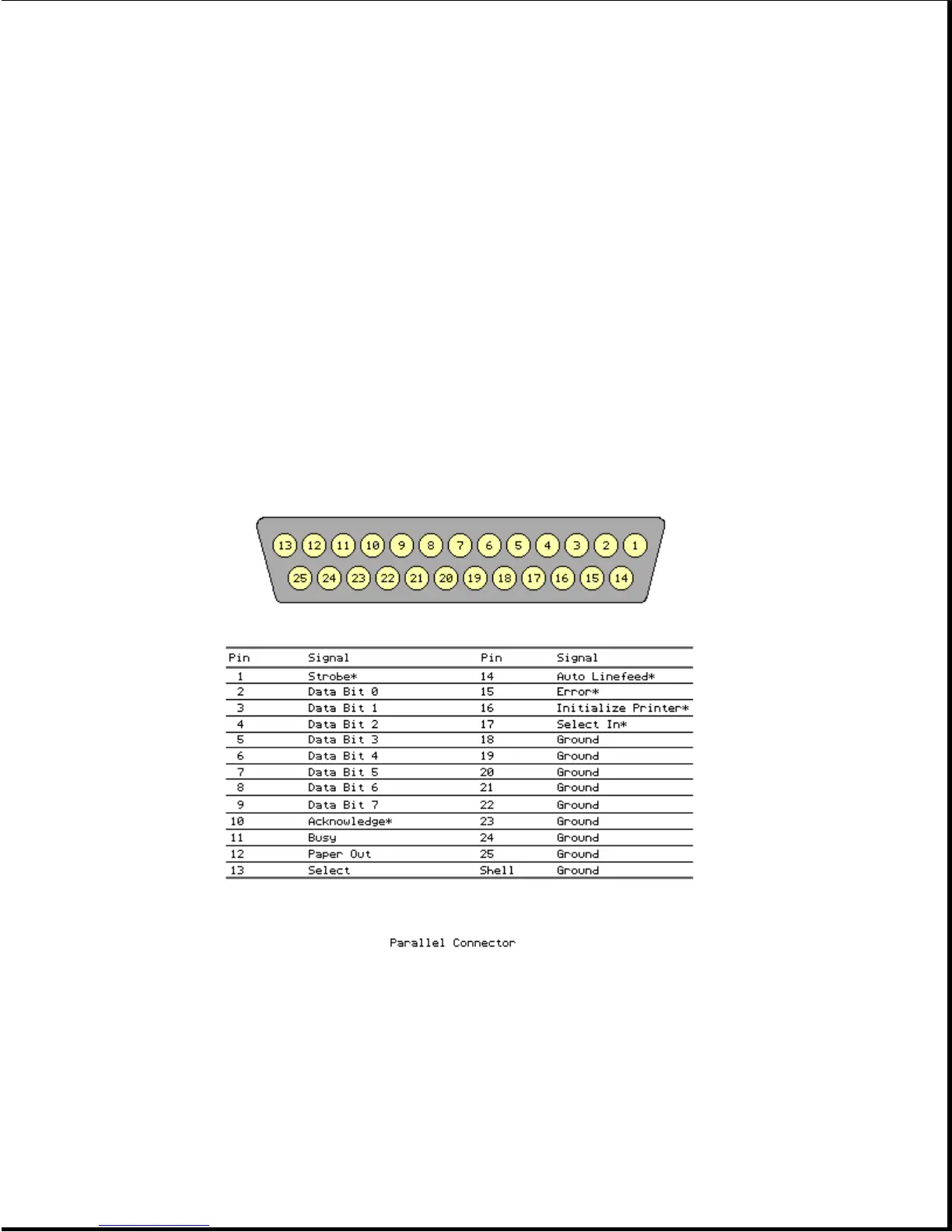

Table A-1. Parallel Connector
===========================================================================
Pin Signal Pin Signal
===========================================================================
1 Strobe * 14 Auto Linefeed *
2 Data Bit 0 15 Error *
