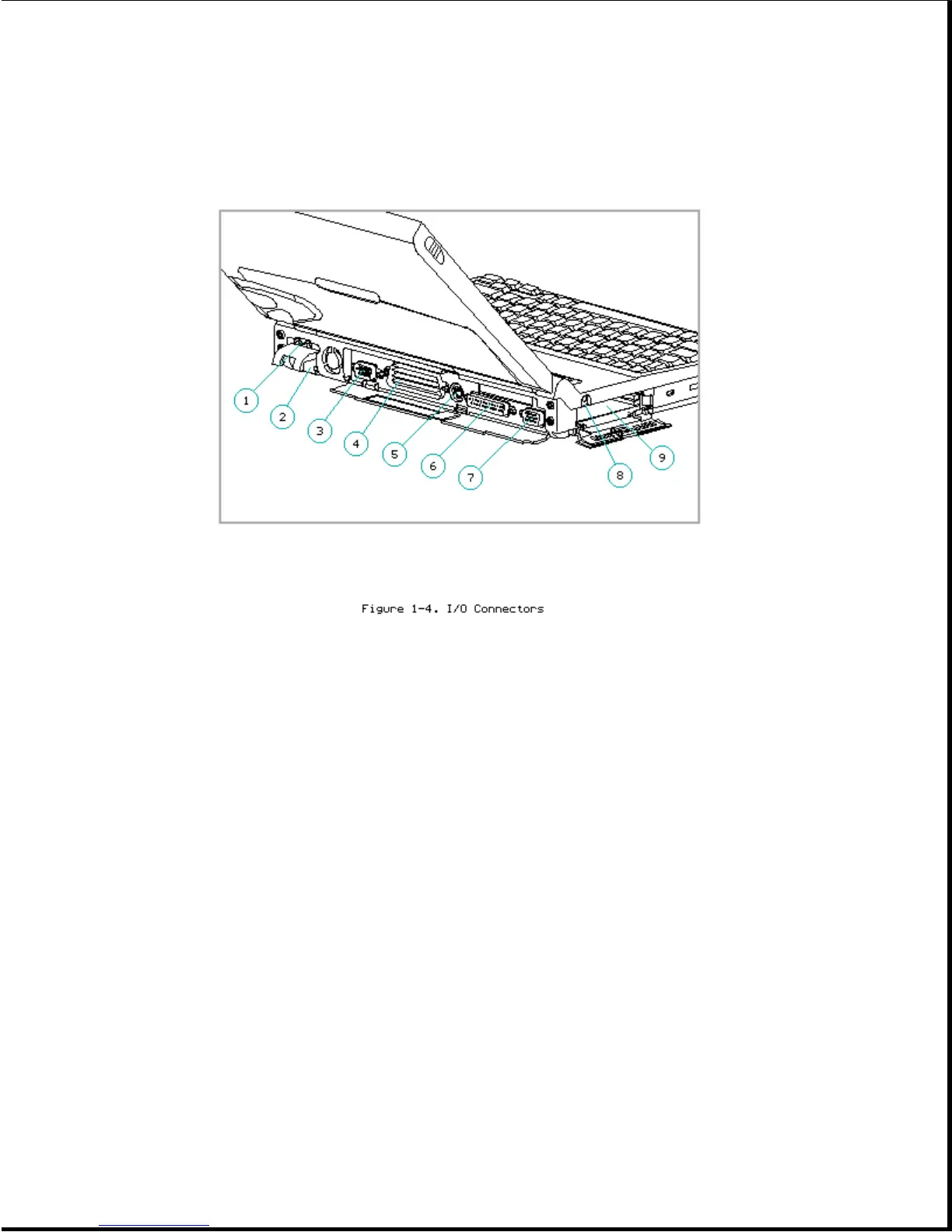

1. AC power
2. Automobile Adapter
3. Serial
4. 198-pin external options
5. Keyboard/mouse
6. Parallel
7. External monitor
8. Numeric keypad
9. PCMCIA
AC Power Connector
When the computer is docked in the convenience base and the convenience
base is turned on, AC power is applied to the computer's AC power
connector. (The 198-pin connector carries all other signals between the two
units.)
Automobile Adapter Connector
The computer has an automobile adapter connector that accepts an 18.5 volt,
1.73 amp DC input from the Automobile Adapter. This connector is covered
by an access door (Figure 1-5).
