Compaq LTE Elite - Compaq Smartstation Drive Power Connector Pin Assignments

To Next Page

To Previous Page

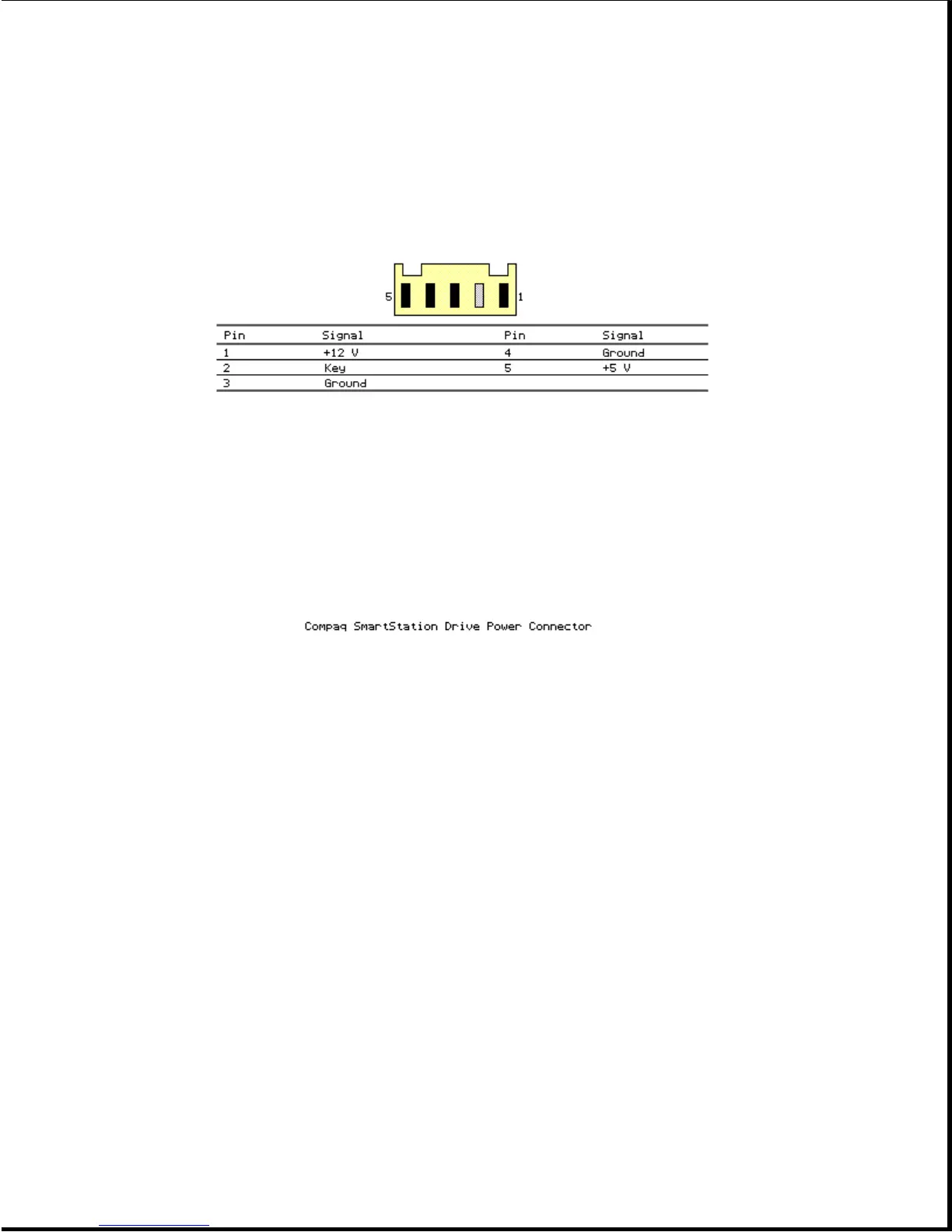

Table A-14. Compaq SmartStation Drive Power Connector

===========================================================================

Pin Signal Pin Signal

===========================================================================

1 +12V 4 Ground

2 Key 5 +5V

3 Ground

===========================================================================
