NOTE: Switch number 6 can be turned off to deactivate the keylock switch
and most of the sensors for troubleshooting purposes.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Be sure to turn configuration switch number 6 back on when troubleshooting
is complete to avoid possible data loss or damage to the system that may
occur during docking or undocking.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
C.3 Changing Logical Drive Designations

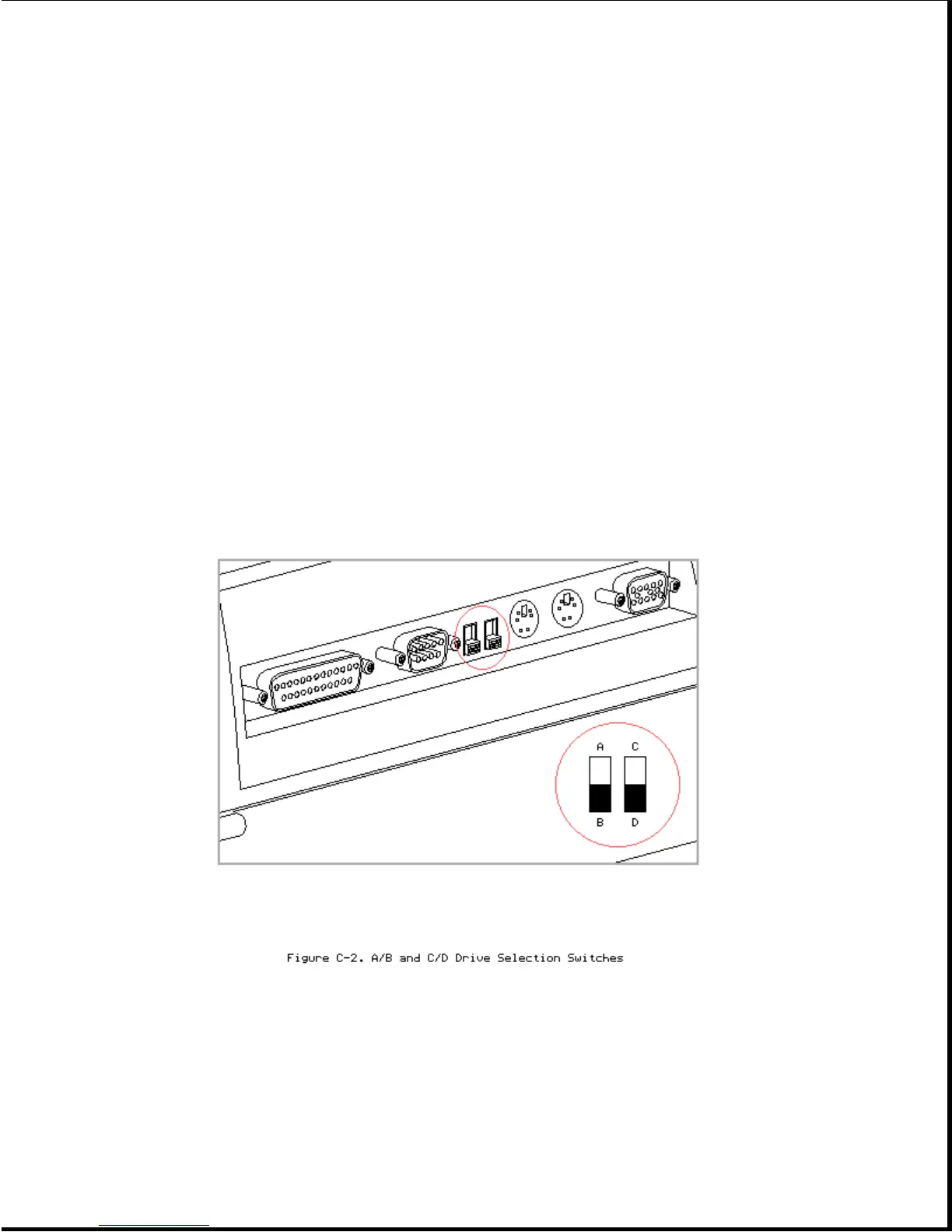

The A/B and C/D drive selection switches are mounted on the system board
and are accessible from the outer rear panel of the expansion base (Figure
C-2).
Designating Logical Drive A
The A/B drive selection switch sets an optional diskette drive in the
expansion base to operate as logical drive A (for using bootable diskettes)
or as logical drive B. The default position for the A/B drive selection
switch is B (the diskette drive in the expansion base is B).
