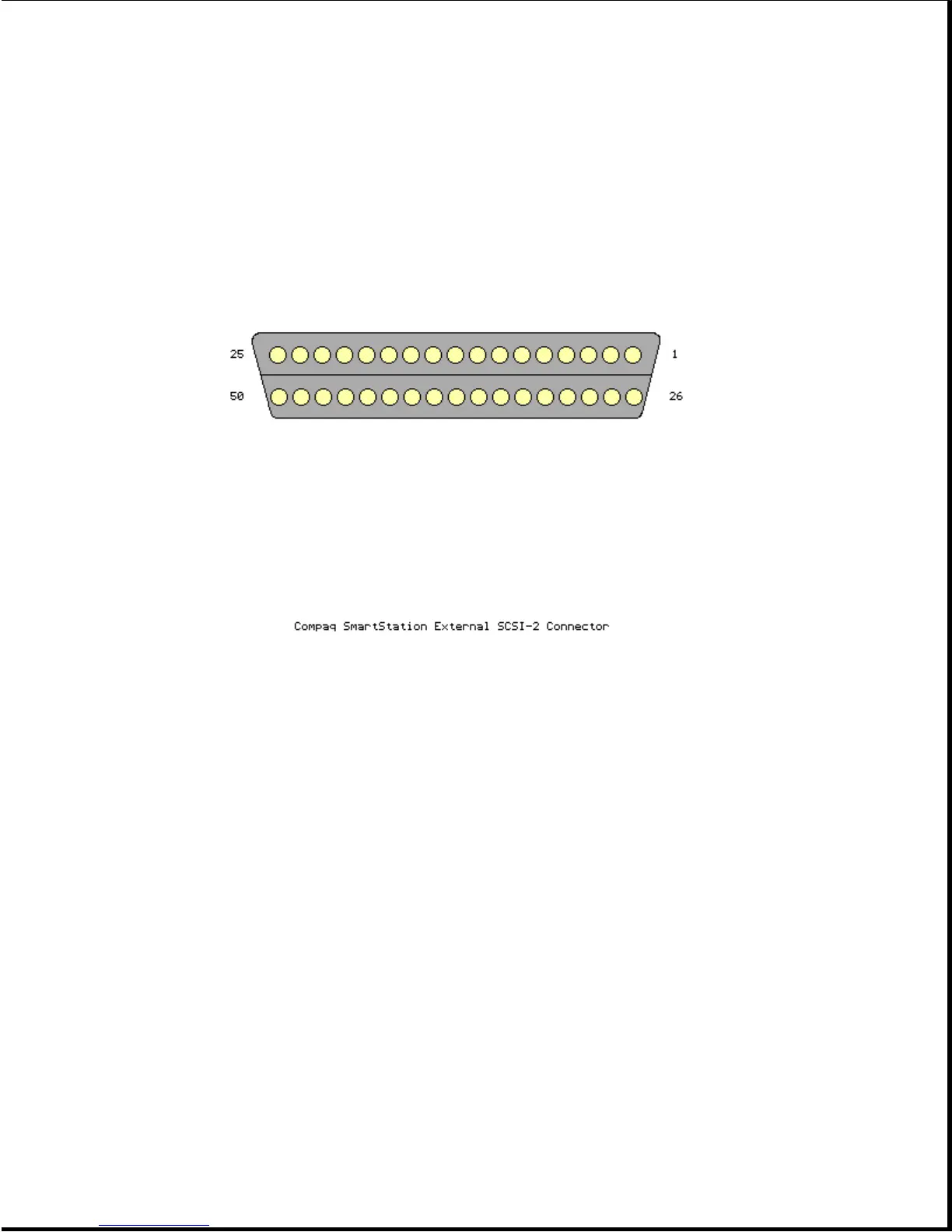

Table A-10. Compaq SmartStation External SCSI-2 Connector
===========================================================================
Pin Signal Pin Signal
===========================================================================
1 Ground 26 SCSI Data Bit 0
2 Ground 27 SCSI Data Bit 1
3 Ground 28 SCSI Data Bit 2
4 Ground 29 SCSI Data Bit 3
5 Ground 30 SCSI Data Bit 4
6 Ground 31 SCSI Data Bit 5
7 Ground 32 SCSI Data Bit 6
8 Ground 33 SCSI Data Bit 7
9 Ground 34 SCSI Data Parity
10 Ground 35 Ground
11 Ground 36 Ground
12 Ground 37 Ground
13 Not connected 38 Term Power
14 Ground 39 Ground
15 Ground 40 Ground
16 Ground 41 Attention *
17 Ground 42 Ground
18 Ground 43 Busy *
19 Ground 44 Acknowledge *
20 Ground 45 Reset *
21 Ground 46 Message *
