o Numeric keypad connector
o Speaker and speaker amplifier
o Power switch
o Standby button
o Display switch
o The following LEDs:
- Power/standby
- Scroll lock
- Caps lock
- Num lock
Refer to Section 1.4 for more information on the controls and LEDs listed
above.

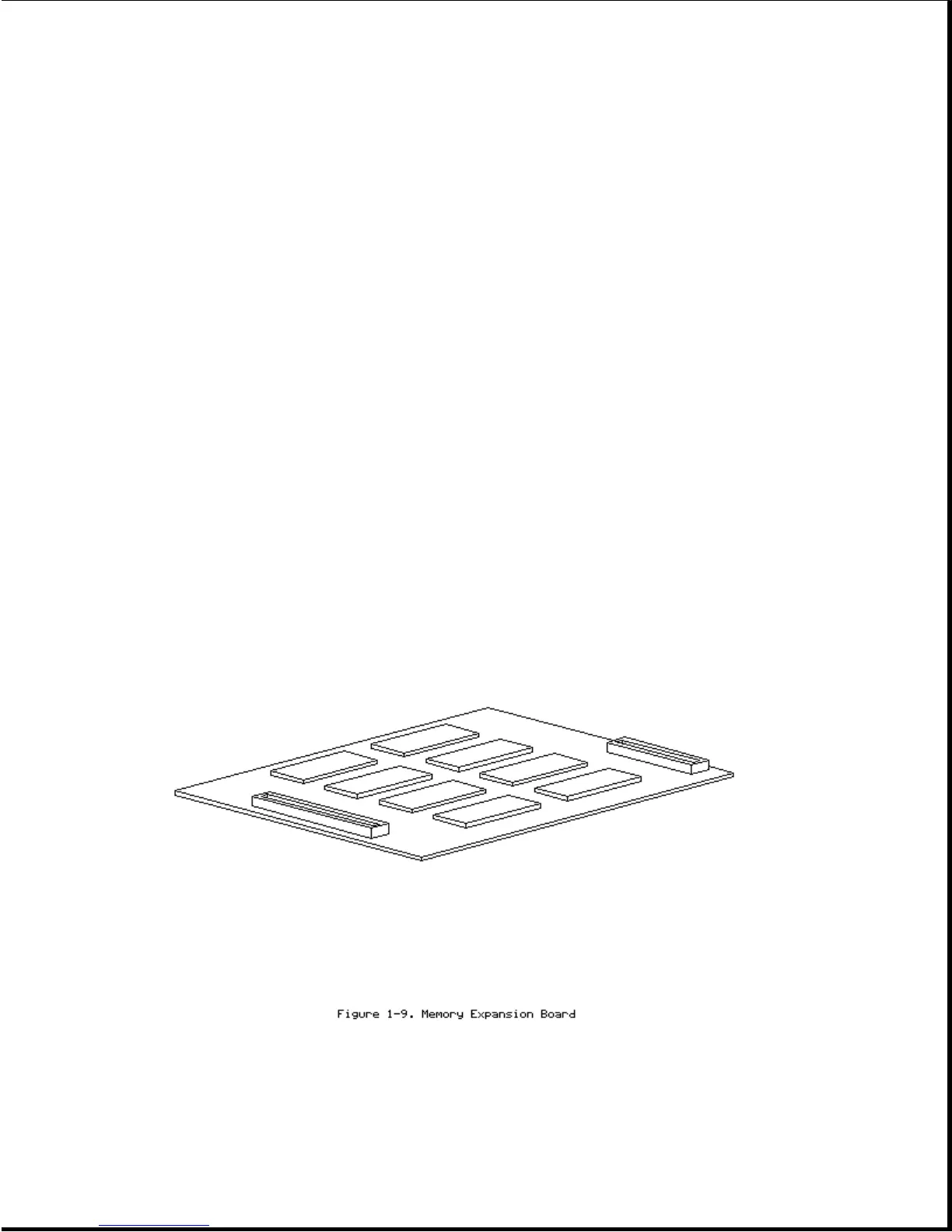

Memory Expansion Board
The 4 or 8 MB base RAM memory (depending on the model) may be increased by
adding an optional memory expansion board (Figure 1-9). The memory
expansion board plugs directly into the back side of the system board
(Section 4.6).
The system supports the following 3.3 volt memory expansion boards (which
operate at 70ns):
