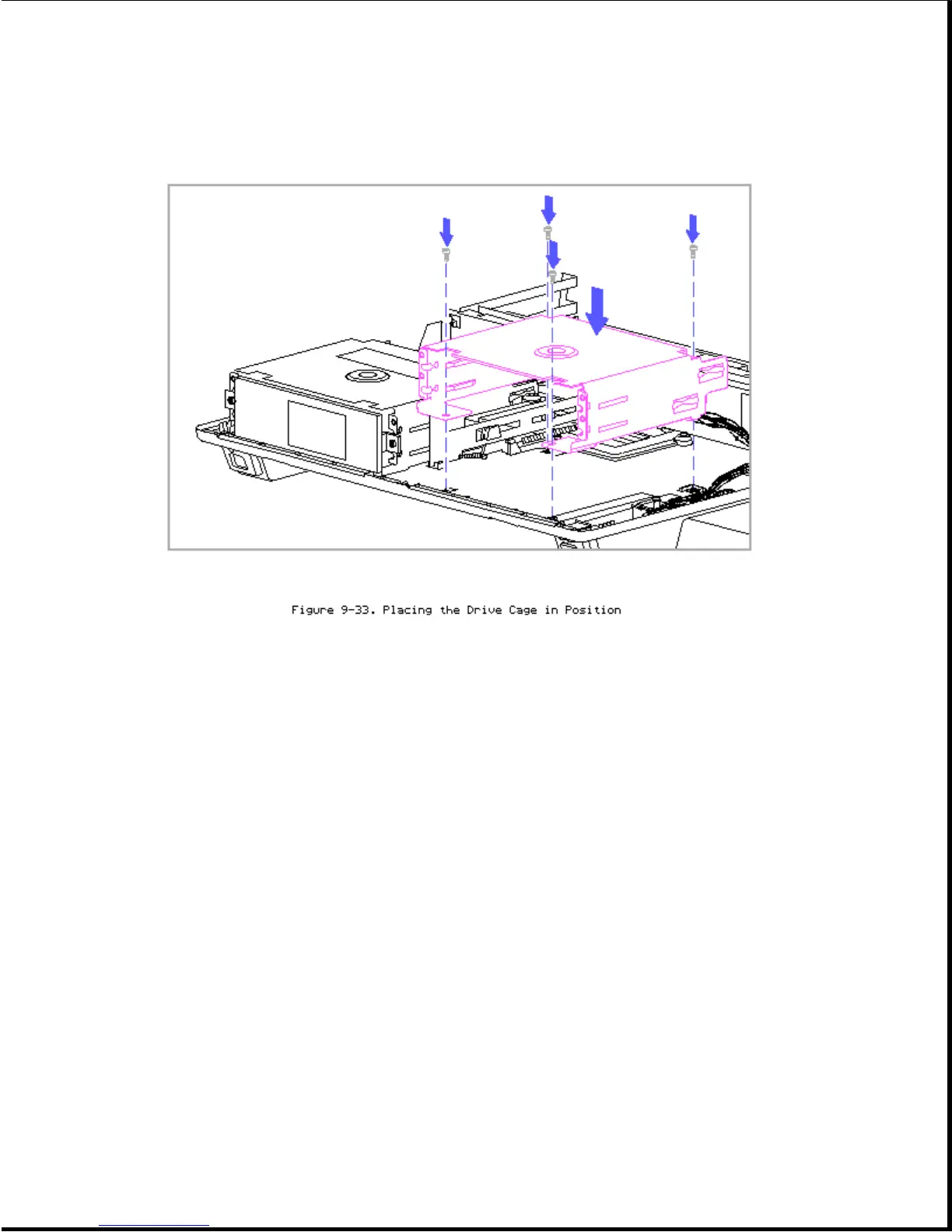

3. If the other drive cage was not removed, loosen its screws.

4. Slide both drive cages toward the center of the top cover as much as the

screw holes allow (Figure 9-34).
