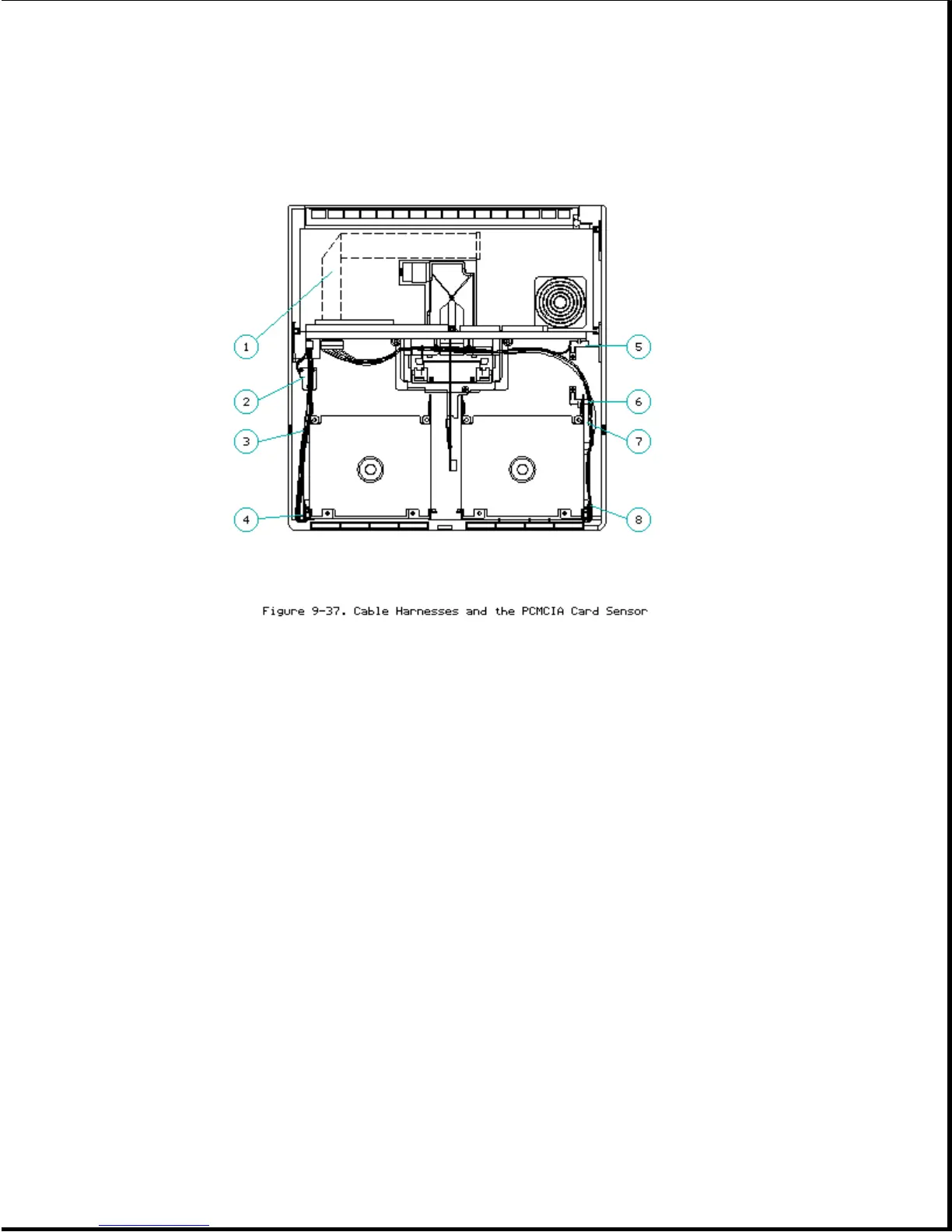

1. Harness extension cable
2. Keylock switch
3. Eject switch cable harness
4. Eject switch
5. PCMCIA card sensor emitter
6. PCMCIA card sensor receiver
7. Power switch cable harness
8. Power switch
NOTE: Refer to Section 9.18 for removal and replacement procedures for
power switch and the eject switch components.
Power Switch Cable Harness
To remove the power switch cable harness, complete the following steps:
1. Remove the bottom cover (Section 9.6).
2. Remove the drive if one is installed in the drive cage above the power
switch (Section 9.15).
3. Remove the drive cage above the power switch (Section 9.16).
