82 System Data Bit 12 181 Byte High Enable *
83 System Data Bit 11 182 Refresh *
84 System Data Bit 10 183 Ground
85 Ground 184 Interrupt Request 15
86 System Data Bit 9 185 Interrupt Request 14
87 System Data Bit 8 186 Interrupt Request 12
88 System Data Bit 7 187 Ground
89 System Data Bit 6 188 Interrupt Request 11
90 Ground 189 Interrupt Request 10
91 System Data Bit 5 190 Interrupt Request 9
92 System Data Bit 4 191 Interrupt Request 7
93 System Data Bit 3 192 Ground
94 Ground 193 Interrupt Request 6
95 System Data Bit 2 194 Interrupt Request 5
96 System Data Bit 1 195 Interrupt Request 4
97 System Data Bit 0 196 Reserved
98 Ground 197 Interrupt Request 3
99 DMA Terminal Count 198 Ground
---------------------------------------------------------------------------
* Active low
===========================================================================

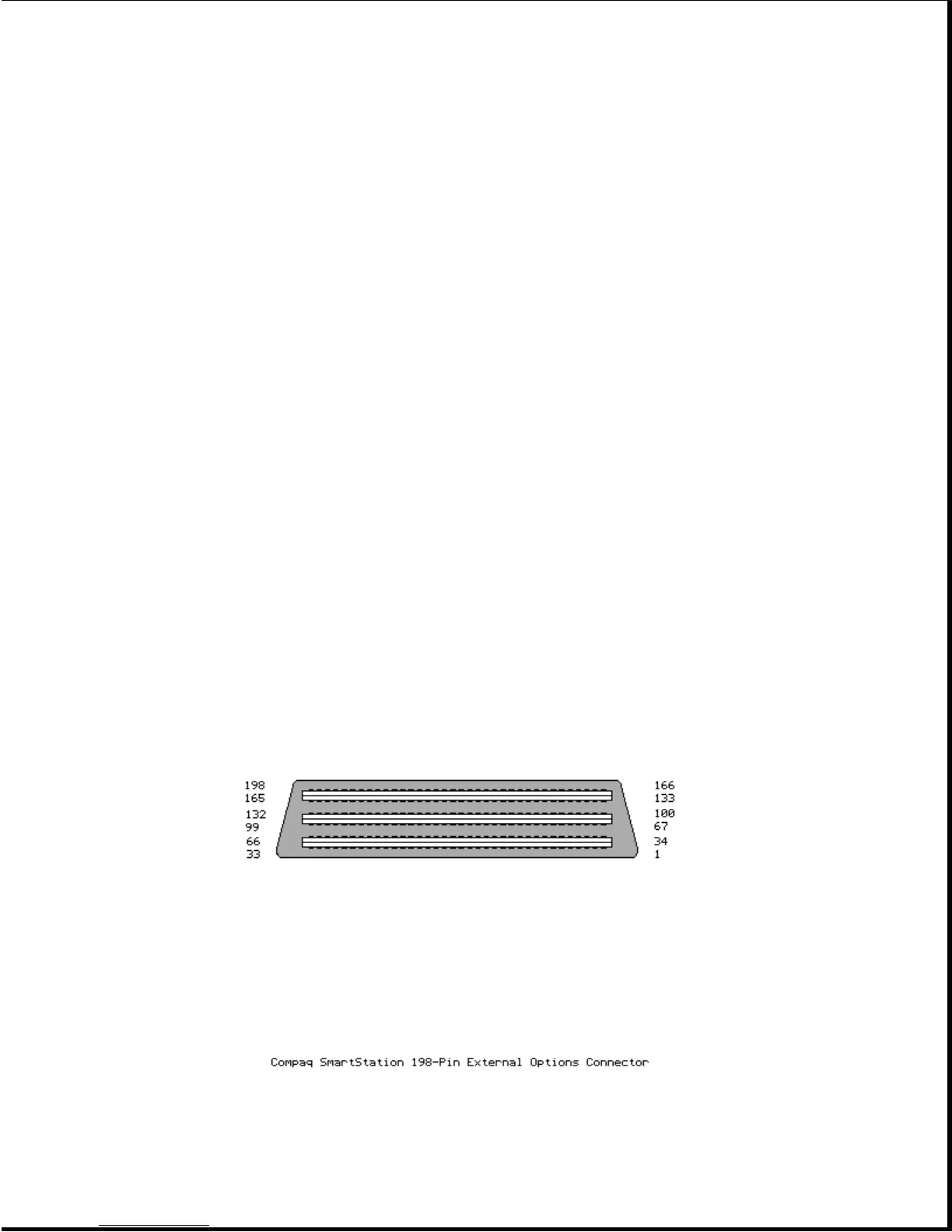

IMPORTANT: There are differences between the pin-outs for the 198-pin
external options connector on the Compaq LTE Elite and the
Compaq SmartStation.
