Applications
4. Click “Next” to create and edit recipes for this recipe definition.

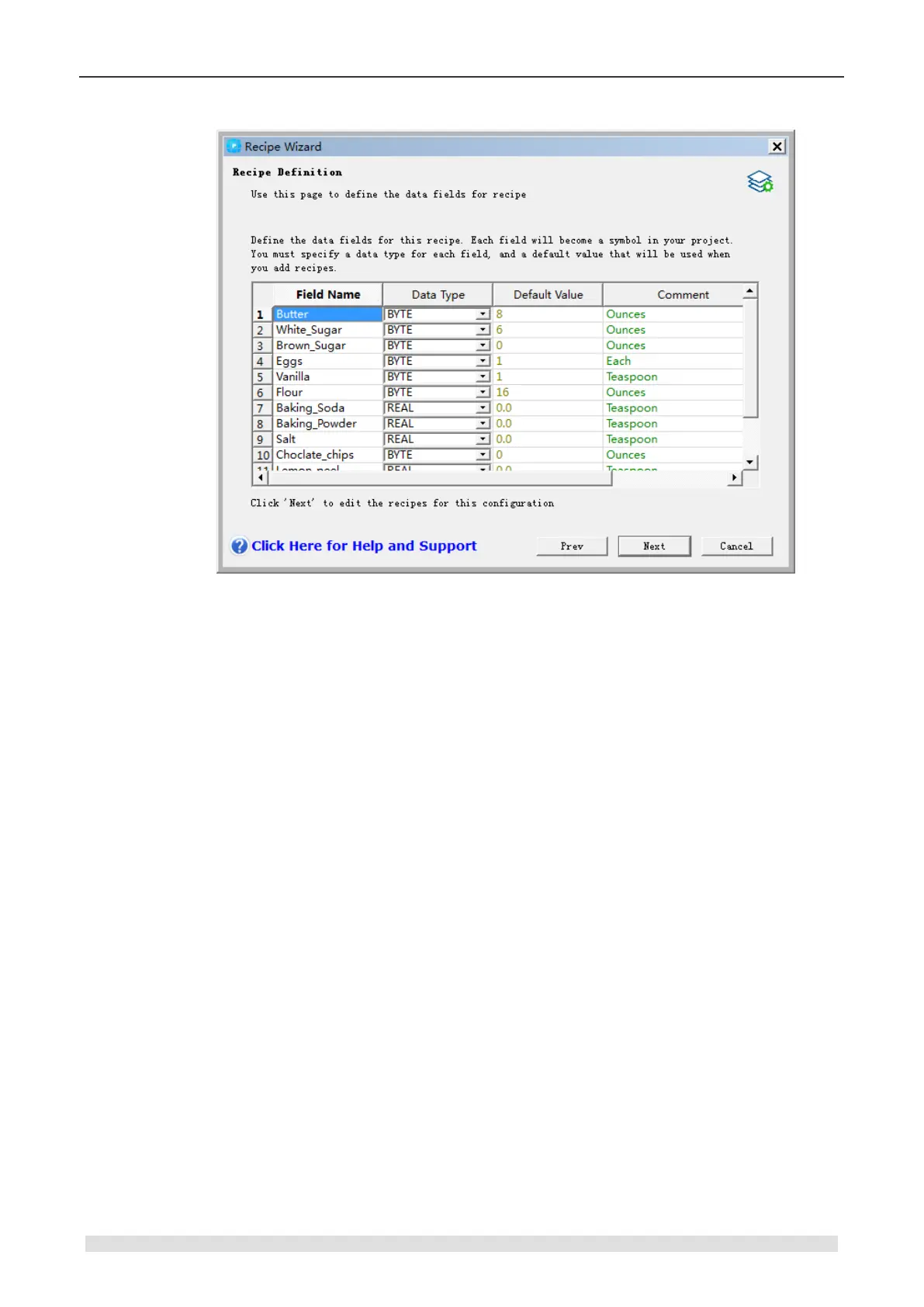

Figure 6-17 Defining Recipes
Use as many rows as necessary to define all data fields in the recipe. You can have up to four
different recipe definitions. The number of recipes for each definition is limited only by the
available space within the memory card.
Creating and Editing Recipes
Window of creating and editing recipes allows you to create single recipe and allocate value for it.
Each editable column represents a unique recipe.
Click “Add Recipe(s)” to add a new one. Each recipe takes the default, which assigned when
creating recipe set, as initial value. Another way to create a new recipe is to right click the
existing recipe column to choose to paste or insert one.
Each new recipe will be given a default name, in form of DEFx_RCPy, refer to the recipe
definition and number.
To create and edit recipes, follow the steps below. See Figure 6-18.
1. Click “Next” to the “Create and Edit Recipe” interface.
2. Select “New” to insert a new recipe.
3. Rename an appropriate name in replace of the default one.
4. Change the values in each recipe data set as needed.
5. Click “Next”.
To Next Page
