Appendix
262

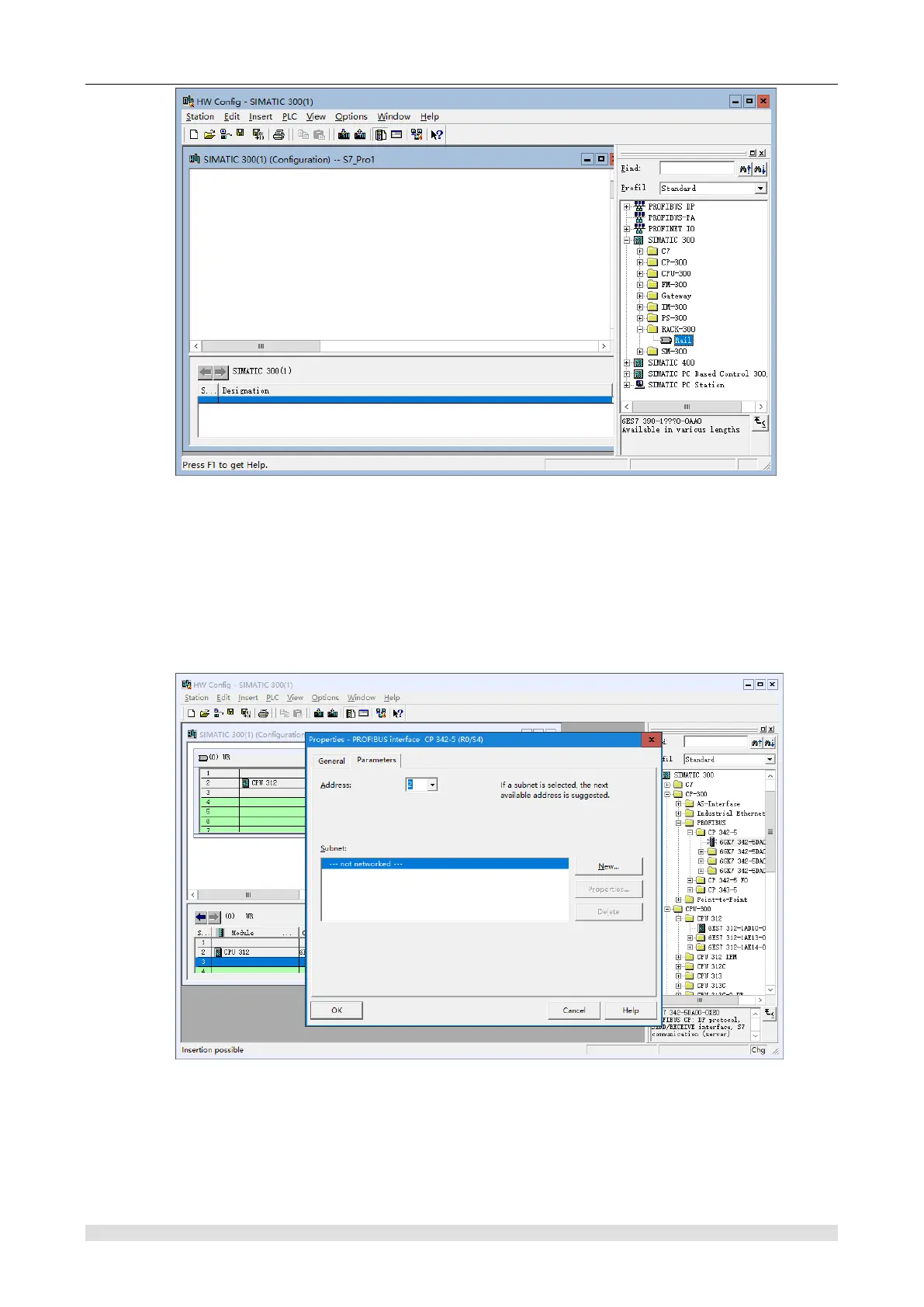

Figure H-6 Add Guide Rail
5) Add Power Supply (optional)
Add power to guide rail. The power can only be placed in the first slot of the rack.
6) Add DP master station CPU and PROFIBUS connection (CP 342-5)
Drag the CPU of the DP master station actually used in the hardware directory to the second slot
of the guide rail or double click to add it, then drag the CP 342-5 actually used in the hardware
directory to the fourth slot of the guide rail, as shown in the figure below:
Figure H-7 Add DP Master Station CPU
In the dialog box above, set the PROFIBUS CP 342-5 interface address (as 2), and click the
"New" to add a PROFIBUS connection for the DP master station. In the "Properties" dialog box,
set the network parameters you need, including the transmission rate (set by default 1.5m by)
and the configuration file (select "DP"), as shown below:
