Paypod™ Embedded Pay Station
Design and Function
Published by CPI
Design and Function3
Read here about
· The main modules and parts the pay station consists of, and
· all functional elements required for the operation of the coin and banknote payment compon-
ents .
3.1 Overview
Operating and maintaining the Paypod™ pay station is easy by means of the:
· Outside operating elements
· Inside operating elements
3.1.1 Overview of Outside Operating Elements

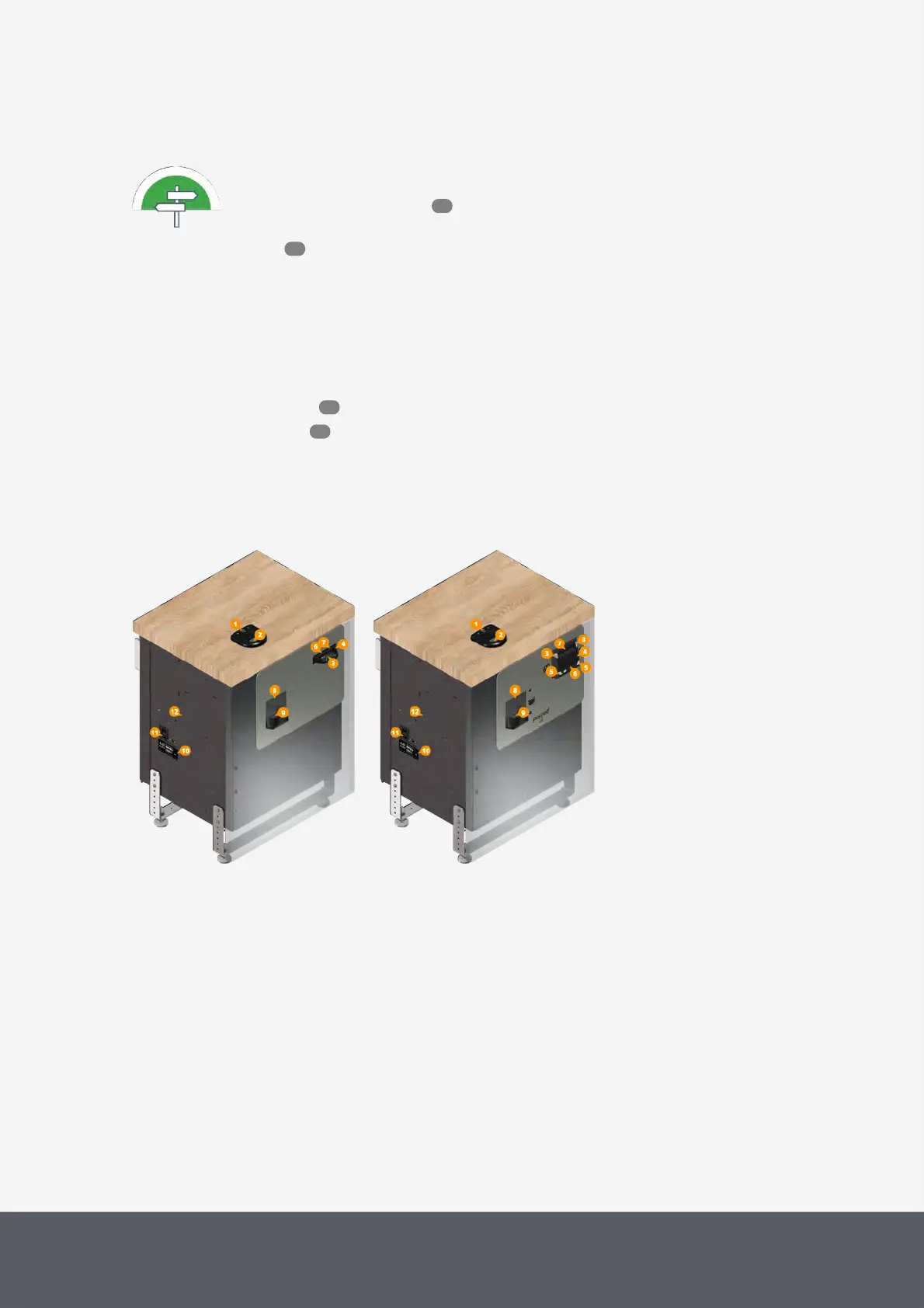

Front view
1 Coin input LED
2 Coin input funnel
3 Banknote insertion LED
4 Banknote bezel
5 Banknote payout LED
6 Banknote payout slot
7 Banknote insertion slot
8 Coin return LED
9 Coin return cup
10 Product label
11 On-off switch
12 Chassis
14
21
14
15
