3.6.2.1 Overview of E22 Banknote Recycler

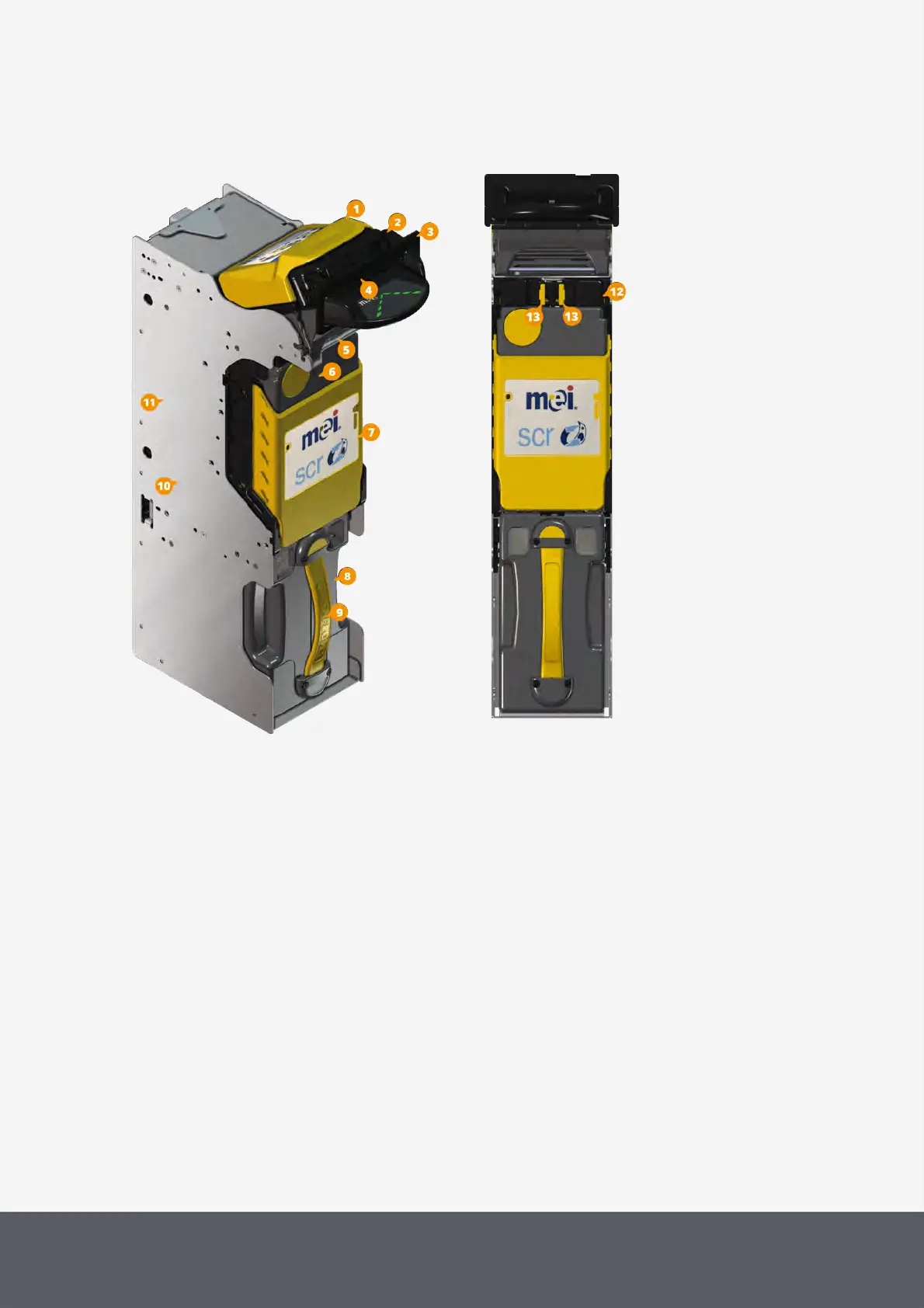

E22 Banknote Recycler Side and Front View
E22 Banknote Recycler Front
View
Side and front view
1 Acceptor latch –
open acceptance unit
2 Banknote acceptance
unit
3 Bezel with banknote
insertion LEDs
4 Banknote insertion
and payout slot
5 Release bar – remove
acceptance unit
6 Transporting unit
7 Transporting unit
latch – unfold trans-
porting unit
8 Cash box
9 Cash box handle –
remove cash box
10 Chassis
11 Recycling unit
(covered)
12 Vault
13 Vault tabs – remove
vault
