3.6.1 Coin Recycler

The coin recycler is designed to validate different coins of

one currency deposited into the coin input funnel for spe-

cific properties. Only valid coins are accepted. Suspicious

coins or coins not programmed will be rejected. Accepted

coins are sorted into coin hoppers in the payout unit and

can be returned to your customers as change.

Please read here to understand the basic functionality and

design of the coin recycler:

· Overview

· Key locks

· Status LEDs

· Coin acceptance unit

· Coin payout unit

Coin Recycler

3.6.1.1 Overview of Coin Recycler

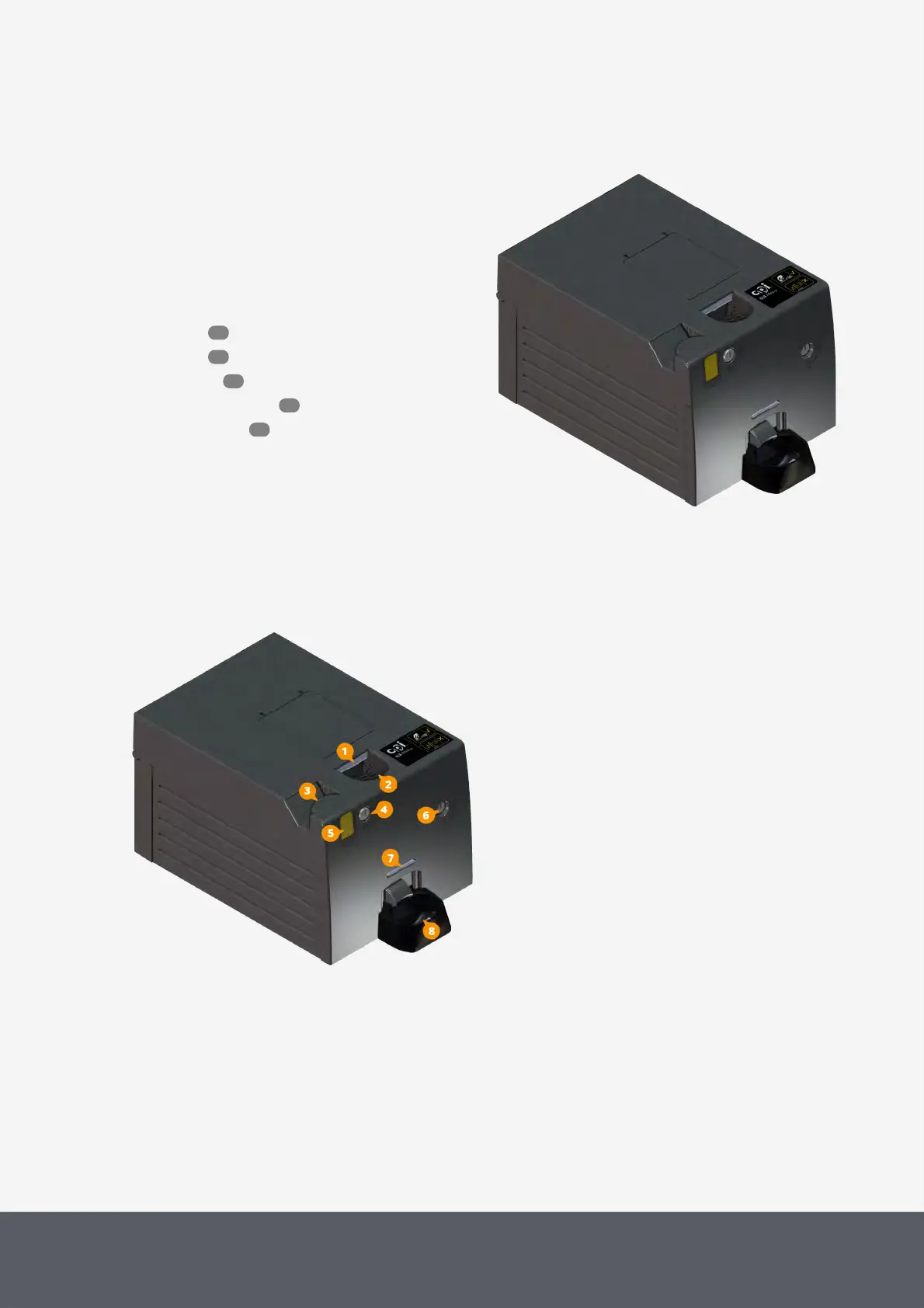

Coin Recycler Front View

Front view

1 Coin input LED

2 Coin input funnel

3 Pull handle – open lid or payout unit

4 Lock – open push-button on lid

5 Push button – open lid

6 Lock – open payout unit

7 Coin return LED

8 Coin return cup
