Operation
Paypod™ Embedded Pay Station
Published by CPI

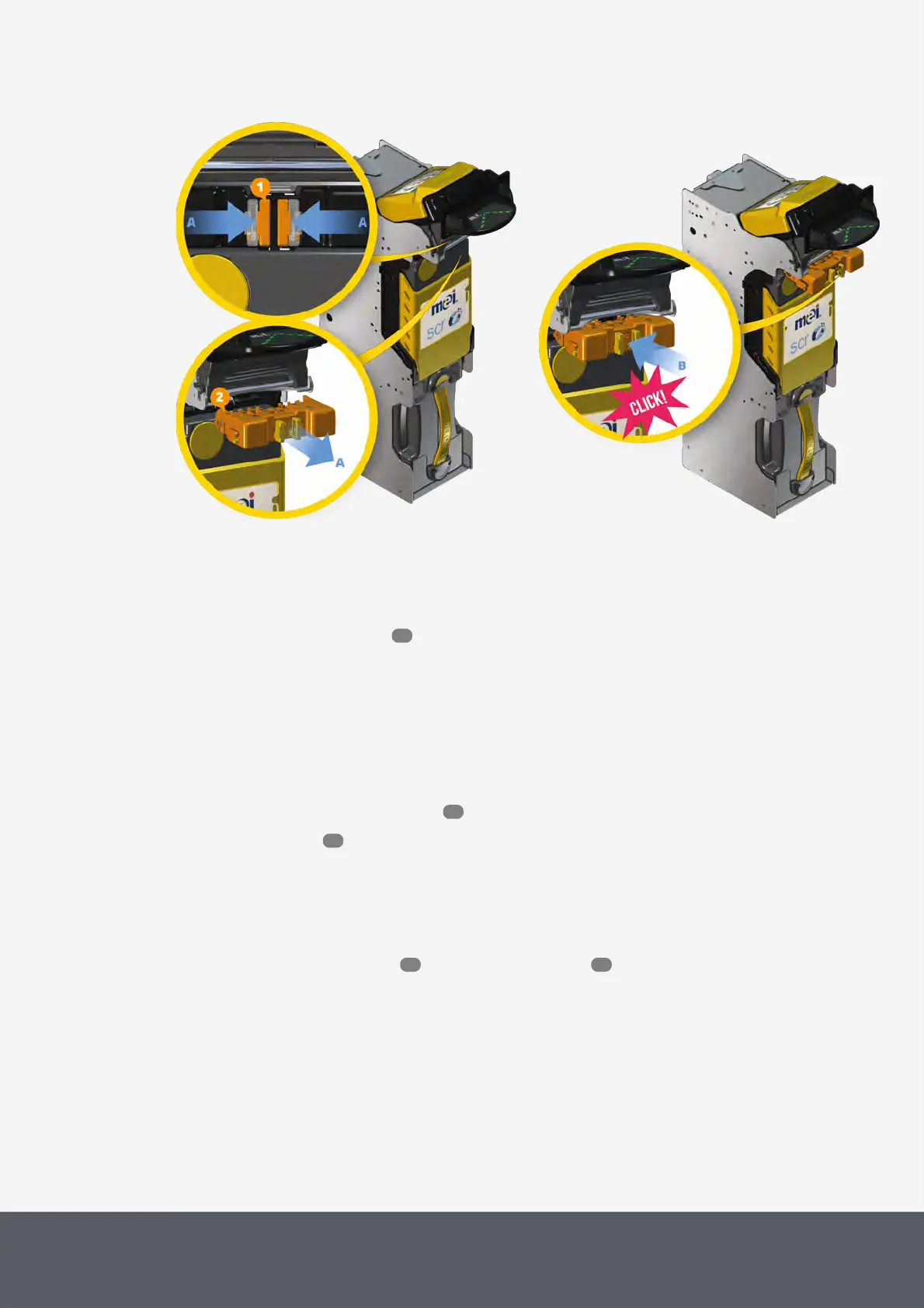

Removing E22 Banknote Recycler Vault
Reinserting E22 Banknote Recycler Vault
To reinstall the vault
6 Reinsert the vault with its stickers facing down and until it clicks into place[B].
7 In case of doubt, push on both sides of the vault to ensure that it cannot move inward any further.
8 Close the Paypod pay station again.
4.10.3 Opening and Closing the E22 Banknote Transporting Unit
To unfold the transporting unit
1 If necessary, wait until a transaction has been finished.
2 Gain access to the banknote recycler .
3 Remove the vault .
4 Grasp both sides of the yellow transporting unit latch[1] and pull it up[A].
The unit is unhinged.
5 Pull the unit out and rotate it downward[B].
You can now access the transport internals and the recycler drums.
6 Continue with cleaning the unit or clearing a banknote jam .
