CHAMP-AV8 (VPX6-462) HARDWARE USER’S MANUAL CURTISS-WRIGHT
A-12 PROPRIETARY 826448 VERSION 5 MARCH 2015
GENERATING PINOUTS
2. To generate a connector pinout table for your CHAMP-AV8, click a Generate Pinout
button. The application displays the corresponding pinout table for your configuration,
as shown in the example in Figure A.7 below.
You may adjust the column widths of the table by dragging the column guides in the
header row.

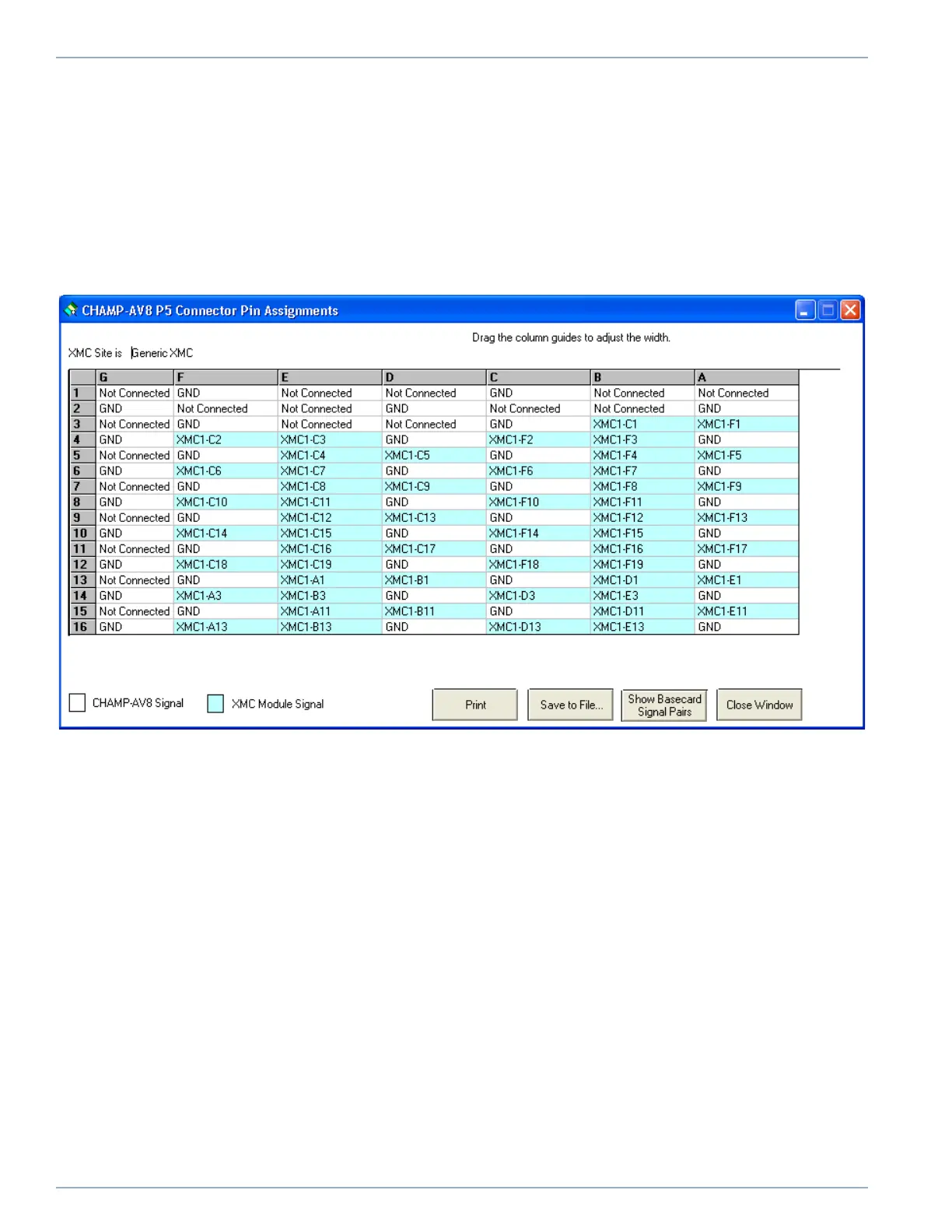

Figure A.7: Sample P5 Pinout Table
