CURTISS-WRIGHT HARDWARE INSTALLATION

826448 VERSION 5 MARCH 2015 PROPRIETARY 3-7

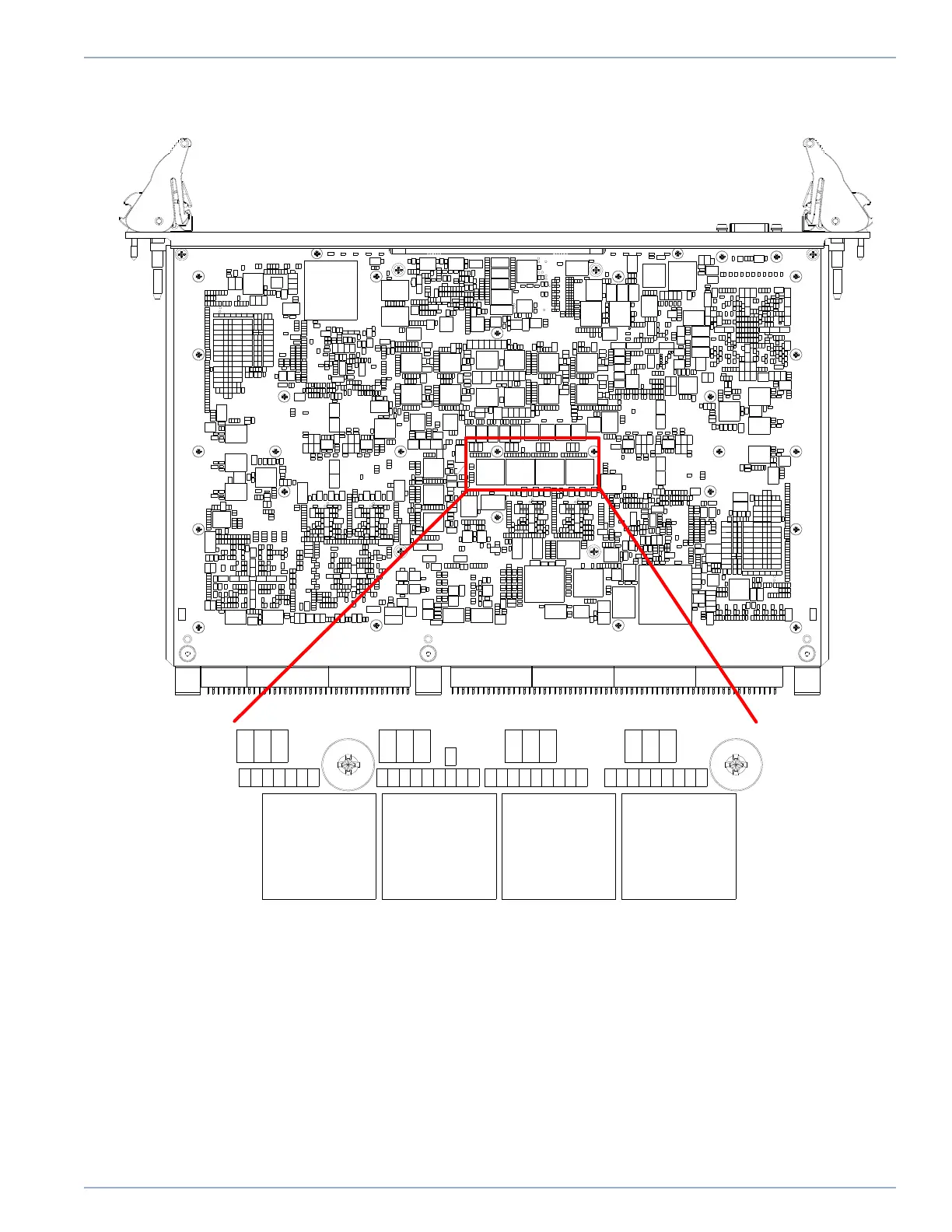

Figure 3.1: Location of CHAMP-AV8 Ethernet Activity LEDs

SOLDER SIDE (SECONDARY) SHOWN

U33

Node A

1000Base-T

U35

Node B

1000Base-T

DS1

DS2

DS3

DS17

DS16

DS15

DS22

DS23

DS24

DS4

DS5

DS6

U36

Node B

1000Base-BX

U34

Node A

1000Base-BX
