CURTISS-WRIGHT PRODUCT OVERVIEW
826448 VERSION 5 MARCH 2015 PROPRIETARY 1-11

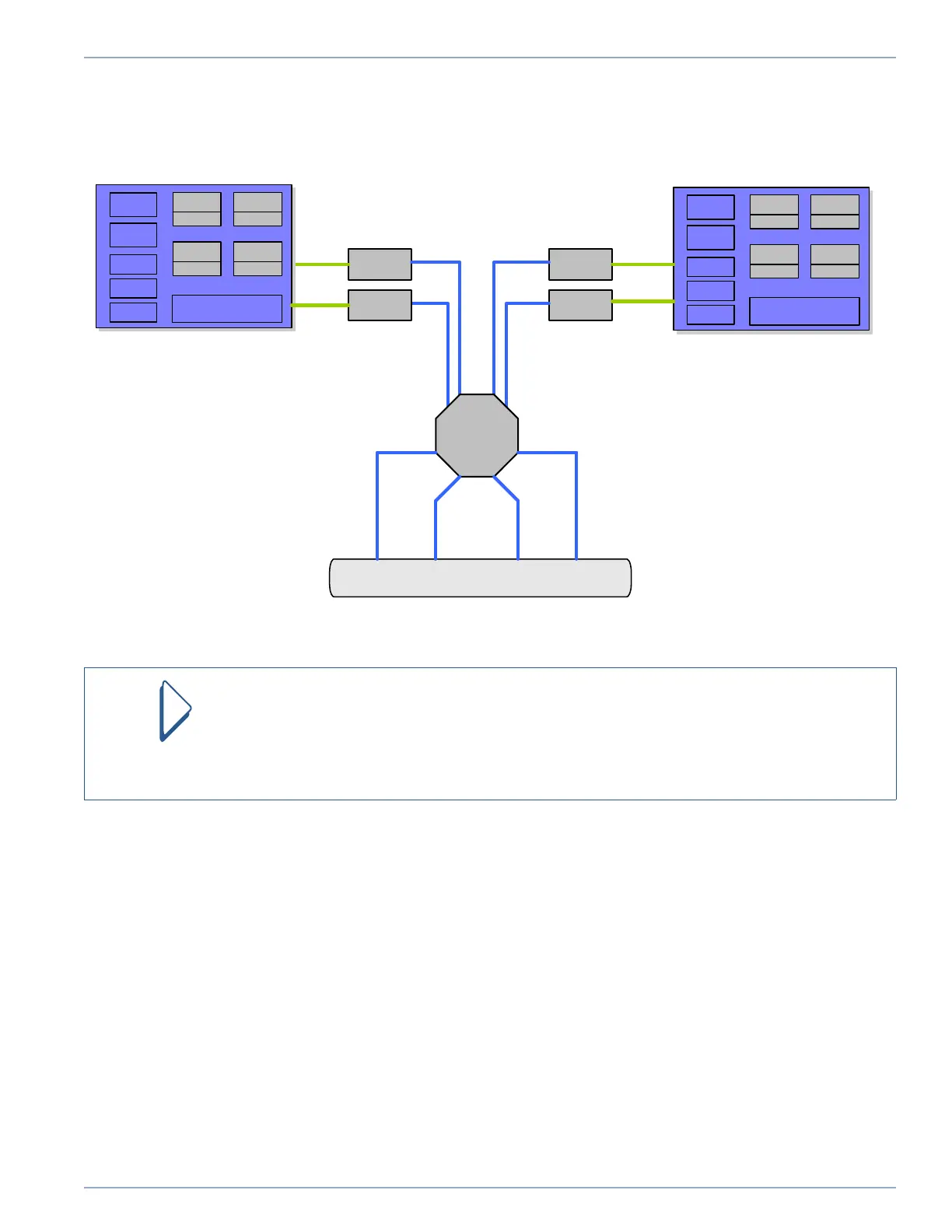

Figure 1.5: CHAMP-AV8 SRIO Port Connections
SRIO connections do NOT auto-negotiate their link operating speed if different generations
of SRIO are mixed. For example, when mixing older hardware boards such as the VPX6-185
or the CHAMP-AV6 (which support Gen 1 speed, 3.125 Gbaud) with the CHAMP-AV8
(defaults to Gen 2, 5.00 Gbaud, but supports 3.125 Gbaud) the off-board SRIO link speed
must be set to values supported on both boards. In this case the CHAMP-AV8 would be
down-graded to the Gen 1 speed. See the BIOS User's Manual, Curtiss-Wright document
826450, for more information.
Node A
Intel Core i7 quad - core
Node A
SDRAM
Control
SDRAM
Control
L3
PCIe
L1 / L2
Core
L1 / L2
Core
L1 / L2
Core
L1 / L2
Core
PCIe
PCIe
P1 Connector
PCIe-
SRIO
PCIe-
SRIO
PCIe-
SRIO
PCIe-
SRIO
SRIO
Gen2
Switch
x4 SRIO
Node A
SDRAM
Control
SDRAM
Control
L3
PCIe
L1 / L2
Core
L1 / L 2
Core
L1 / L2
Core
L1 / L2
Core
PCIe
PCIe
1
Node B
Intel Core i7 quad - core
0
3
7
6
4
P1-PA[0:3]
2
5
x4 PCIe x4 PCIe
#1
#2
#2
#1
P1-PB[0:3] P1-PC[0:3] P1-PD[0:3]
