CURTISS-WRIGHT PRODUCT OVERVIEW
826448 VERSION 5 MARCH 2015 PROPRIETARY 1-23

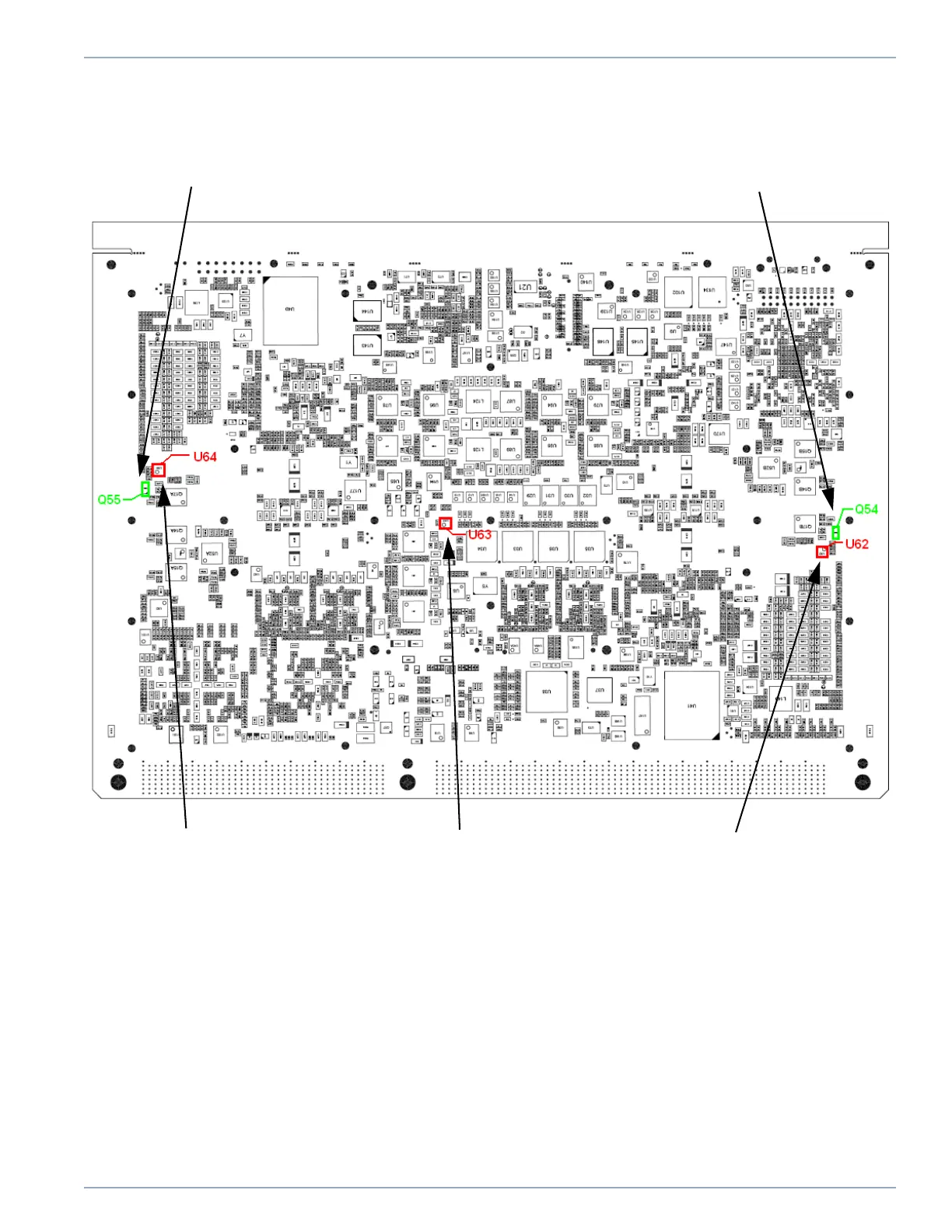

Figure 1.11: Location of Voltage, Current, and Temperature Sensors (Secondary Side)
INDICATOR LEDS
The CHAMP-AV8 provides eight user-controllable green LEDs. These are visible on the front
panel of air-cooled boards or on the back side of conduction-cooled boards. There is an
additional red LED on the front panel of both versions that indicates a failure determined by
the on-board diagnostic firmware. A backplane signal is also asserted in conjunction with the
fail LED. See “LED Diagnostics” on page 3-14 for additional details.
Channel 1 Internal Channel 2 Internal
Channel 3 Internal
Channel 1 External Channel 3 External
