CHAMP-AV8 (VPX6-462) HARDWARE USER’S MANUAL CURTISS-WRIGHT
A-42 PROPRIETARY 826448 VERSION 5 MARCH 2015
XMC J15 AND J16 CONNECTORS
The CHAMP-AV8 incorporates a single width XMC site in accordance with VITA 42.0 and VITA
42.3. The XMC site includes the connectors designated J15 and J16 as shown in Figure A.17.

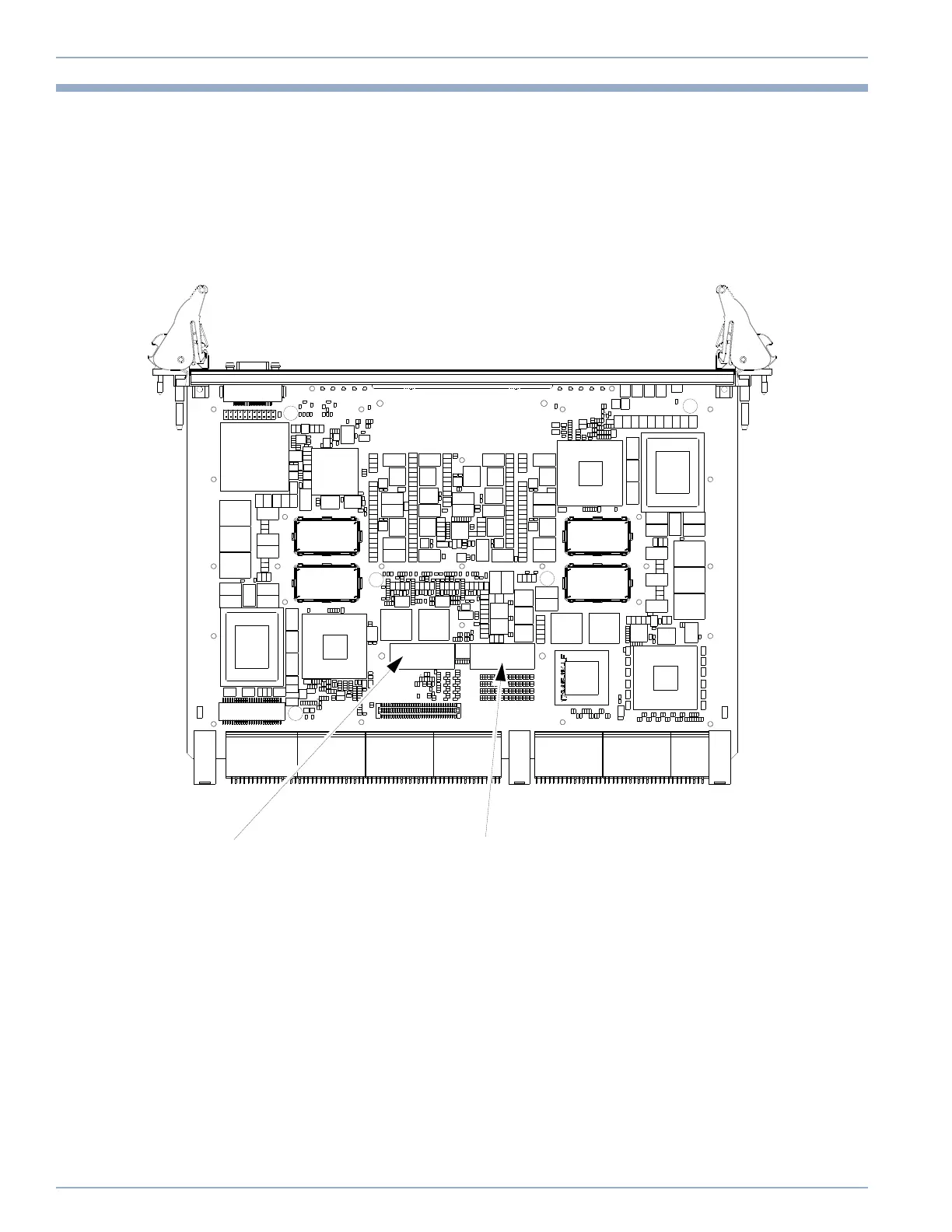

Figure A.17: Location of CHAMP-AV8 XMC J15 and J16 Connectors
XMC J15 CONNECTOR
Table A.26 on page A-43 lists the pin assignments for the XMC J15 connector. The J15
connector is the primary XMC connector as defined in V42.0. The XMC supports a single x8,
x4, x2, or x1 PCI link in accordance with V42.3.
XMC J15 ConnectorXMC J16 Connector
