Danfoss Turbocor TT Series

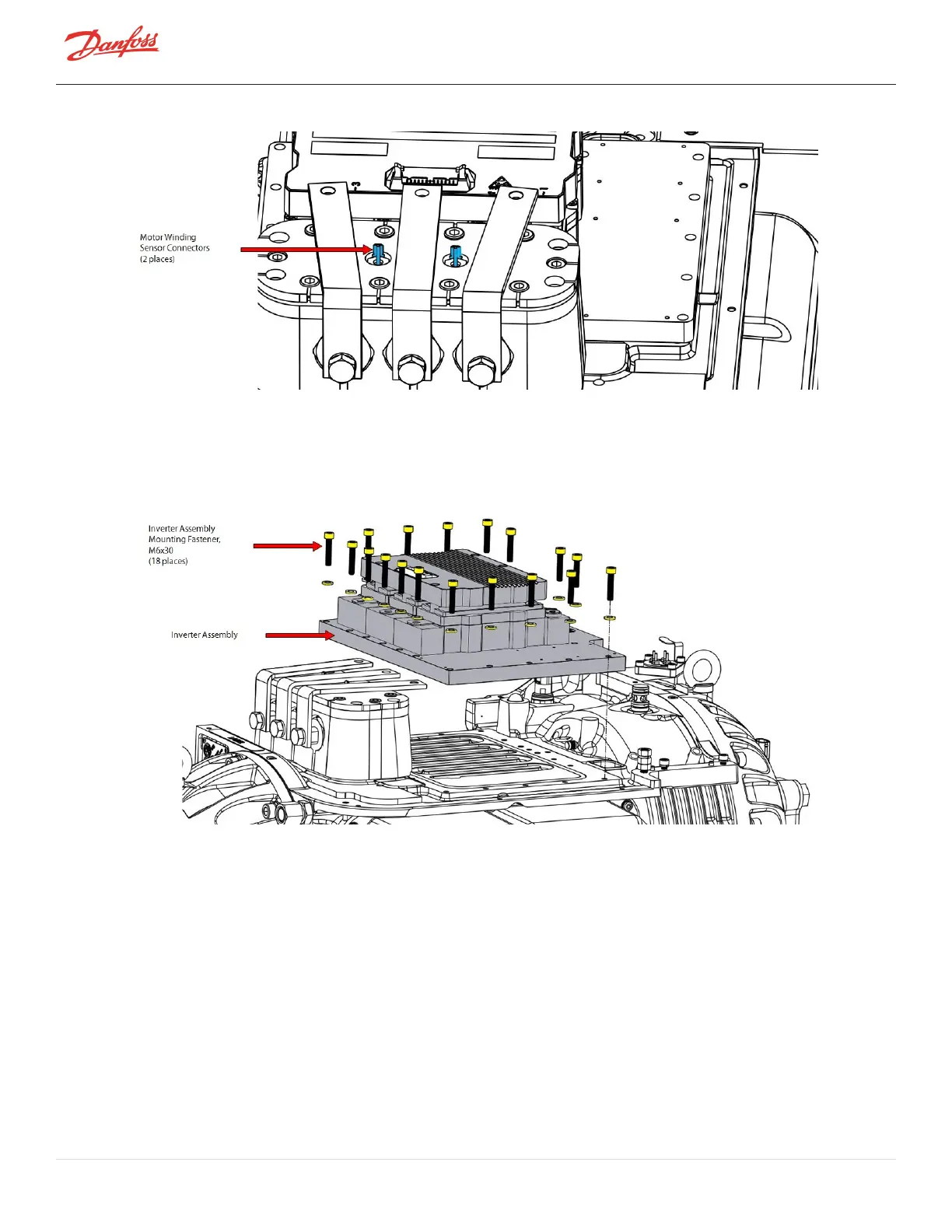

Figure 4-203 Motor Winding Sensor Removal

23. Removethe18M6x30fastenersthatsecuretheInvertertothecompressormainhousing.Referto
Figure4-204InverterRemoval-TTS/TGS/TTH/TGH(ExceptTTS300/TGS230).
Figure 4-204 Inverter Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)

24. RemoveanddiscardthelargeInverterO-ringfromthecompressorhousing.RefertoFigure4-205
InverterO-ringRemoval-TTS/TGS/TTH/TGH(ExceptTTS300/TGS230)onpage185.

Page 184 of 294 - M-SV-001-EN Rev. H 1/23/2023
