Danfoss Turbocor TT Series User Manual

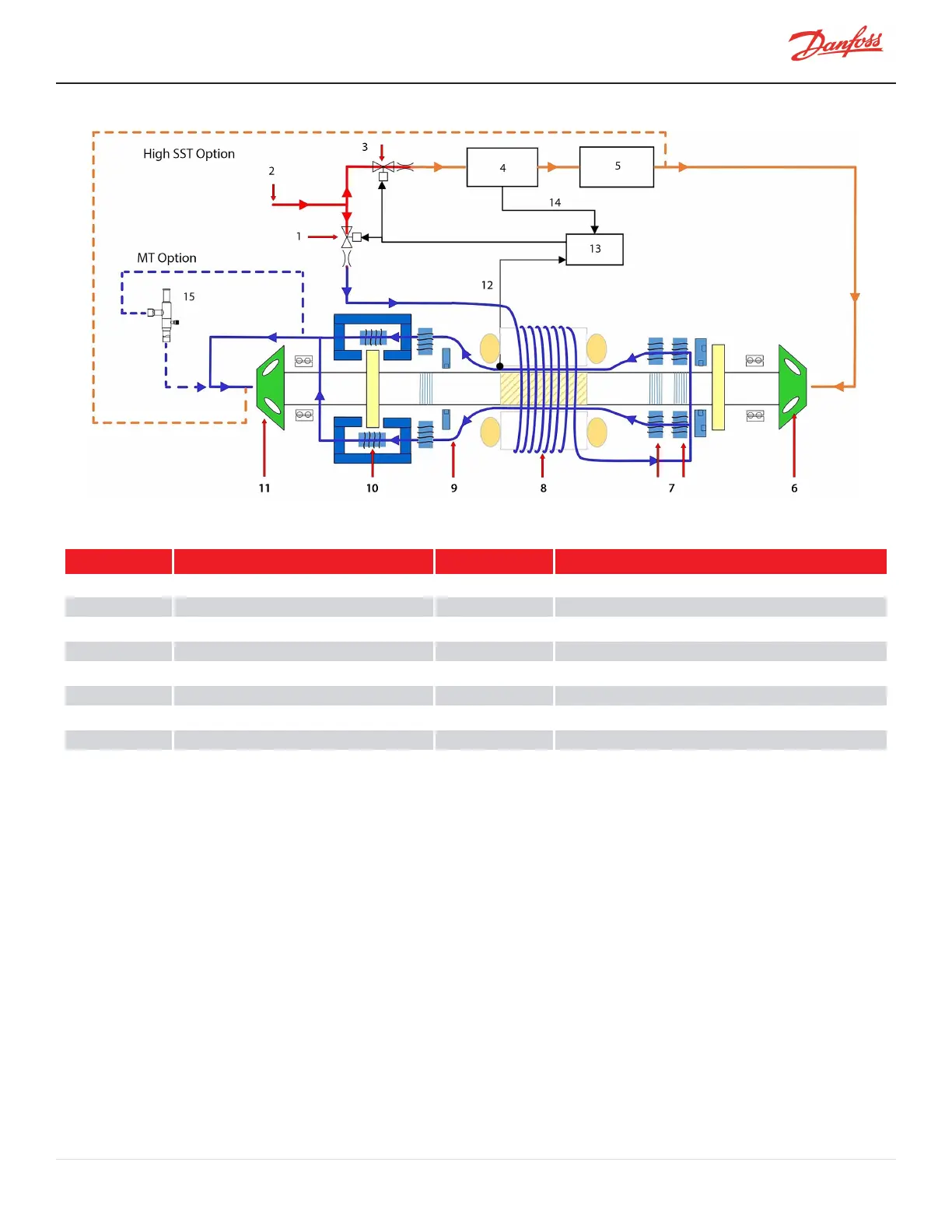

Figure 2-3 Split Cooling Path - TTH375/TGH285

No. Description No. Description
1 SolenoidM 9 RadialBearing
2 LiquidRefrigerantInlet 10 AxialBearing
3 SolenoidE 11 Impeller-1stStage
4 Inverter 12 MotorCavityTemp.Sensor
5 SCR 13 BMCC
6 Impeller-2ndStage 14 InverterTempSensor
7 RadialBearing 15 PRV(pressureregulatingvalve)
8 Stator/Rotor  

M-SV-001-EN Rev. H-1/23/2023 Page 35 of 294
