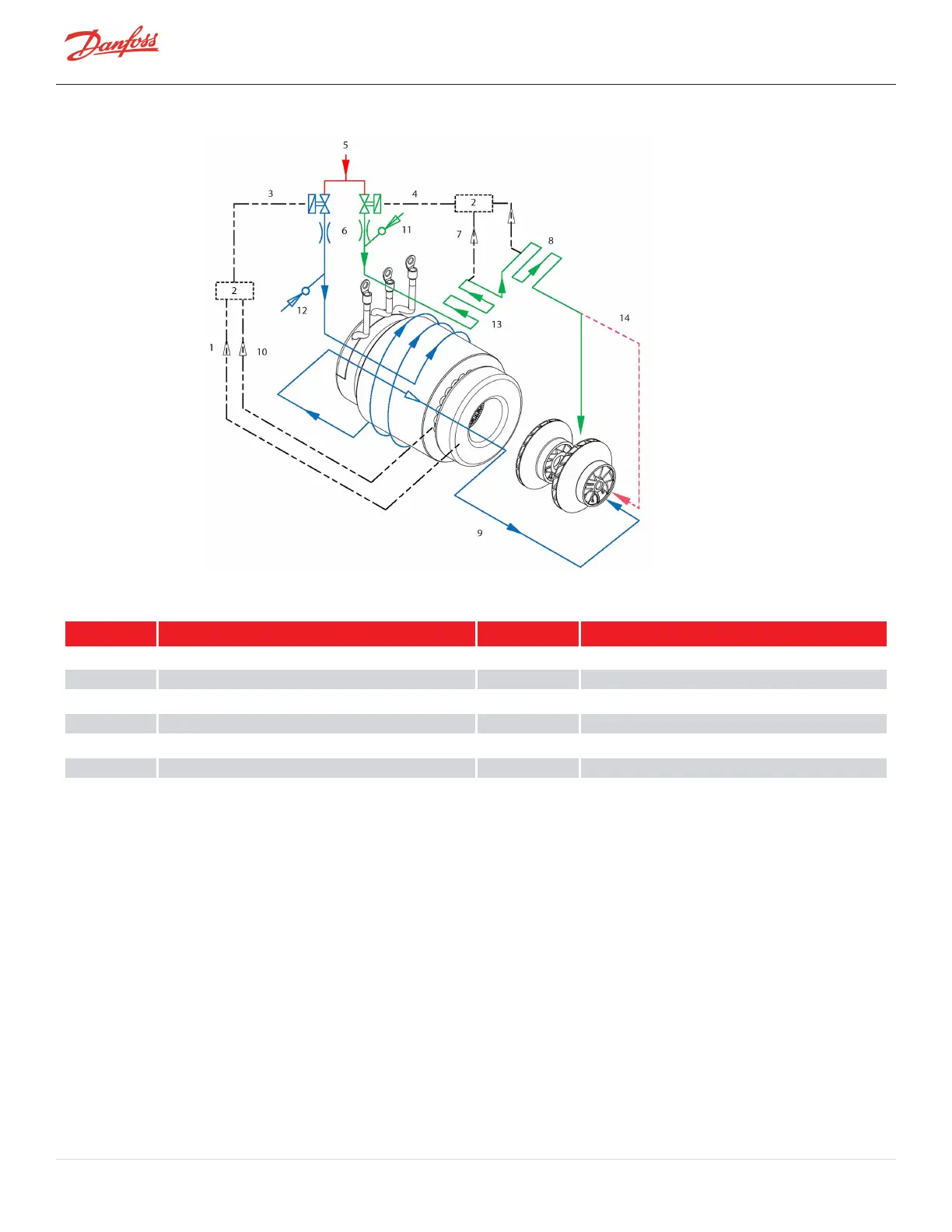

Figure 2-4 Split Cooling Path - (TTS/TGS (Except TTS300/TGS230 Serial Cooling))
Table 2-2 Split Cooling Path - (TTS/TGS (Except TTS300/TGS230 Serial Cooling)
No. Description No. Description
1 FromMotorWindingTempSensor 8 SCRManifold
2 BMCC 9 Motor/RotorCoolingGas
3 SolenoidM 10 FromMotorCavityTemp.Sensor
4 SolenoidE 11 ESchraderValve
5 LiquidRefrigerantInlet 12 MSchraderValve
6 Orifices 13 Inverter
7 InverterTempSensor 14 HighSSTOption



