Capacitor Cover Installation
1. Installthecapacitorreliefmembranewiththefoamsideup.RefertoFigure4-12CapacitorNylonNuts
forthisandthefollowingstep.
2. InstallthenylonnutstothebaseoftheDCCapacitorBusBarAssembly,underthemaincompressor
housingandtorqueto7Nm(62in.lb.).

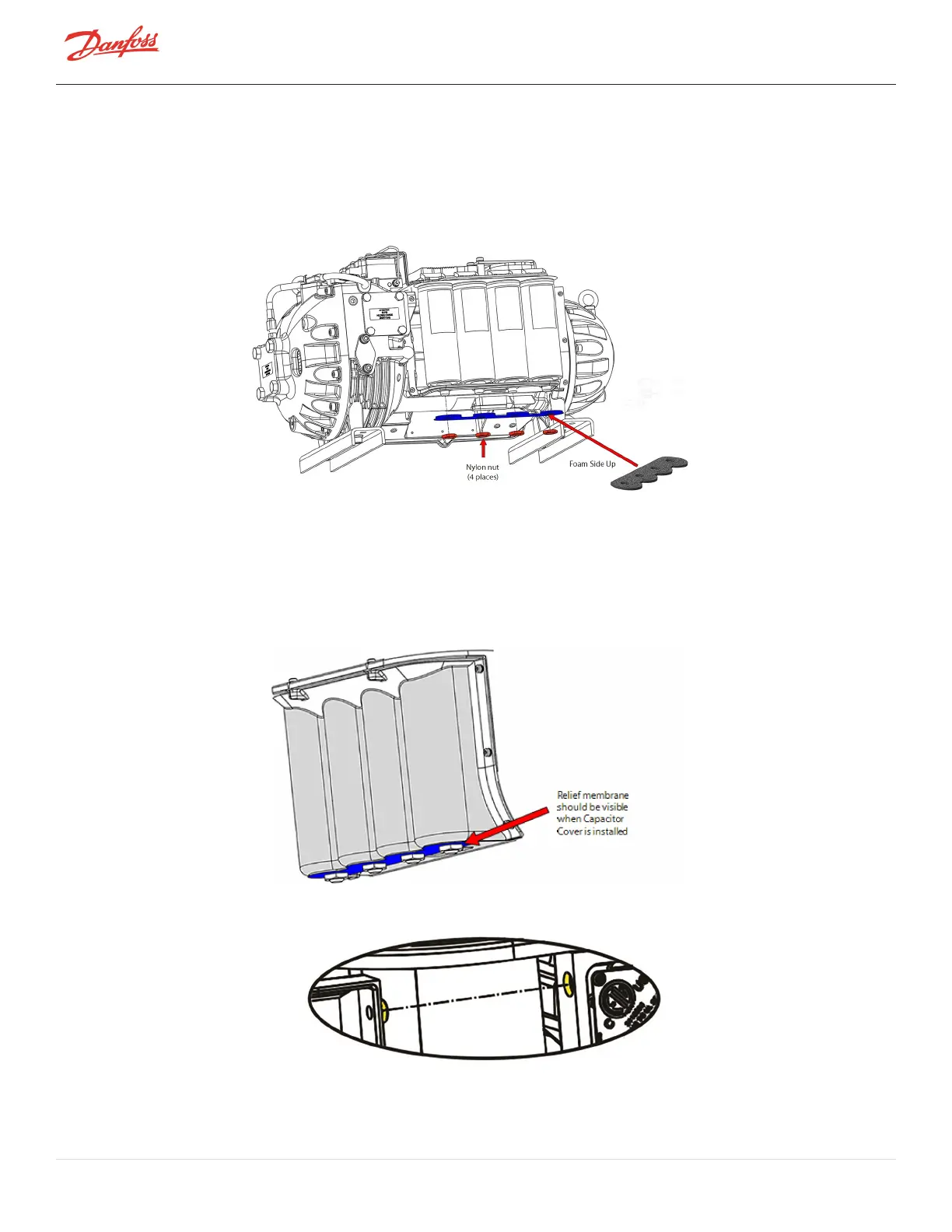

Figure 4-12 Capacitor Nylon Nuts
3. PlacetheCapacitorCoverandsecureitwiththeM5x15fastenersfromtheTopCover.
4. PlacetheCapacitorCoveronthecompressorandlooselysecureitwiththeM5X15fasteners.The
bottomofthecovershouldrestjustabovetheReliefMembrane.RefertoFigure4-13ReliefMembrane
Position.Additionally,thecovershouldlineupandsitintherecessedholesinthecompressorhousing.
RefertoFigure4-14RecessedHoles.
Figure 4-13 Relief Membrane Position
Figure 4-14 Recessed Holes
Page 56 of 294 - M-SV-001-EN Rev. H 1/23/2023
