Datalogic QuickScan Lite QW2100 User Manual

Symbologies
100 QuickScan
TM
Lite QW2100

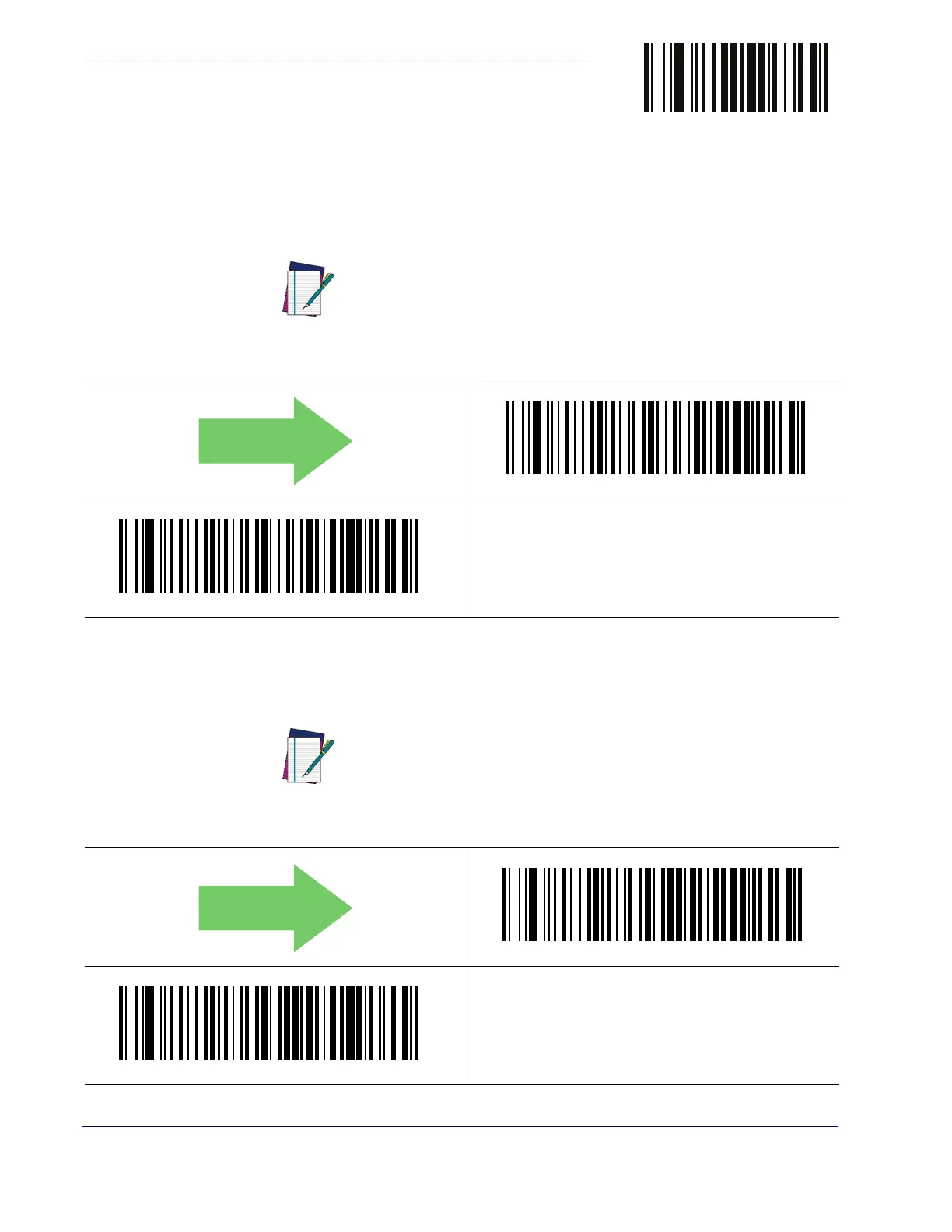

ENTER/EXIT PROGRAMMING MODE
EAN 8 — cont.
EAN 8 Stitch Exact Label Halves
Enables/disables the abiliy to stitch exact EAN 8 label halves with no overlapping characters.
EAN 8 Stitch Unlike Label Halves
Enables/disables the abiliy to stitch EAN 8 label halves together which may have differing char-
acters in them.
NOTE
The label halves being stitched together to assemble a complete
label must have the structure GddddC and CddddG.
$C8BSE00
EAN 8 Stitch Exact Label Halves = Disable
$C8BSE01

EAN 8 Stitch Exact Label Halves = Enable
DEFAULT
NOTE
The label structure must be GddddCd... and ..dCddddG. The charac-
ters dCd must match between the two segments.
$C8BSU00
EAN 8 Stitch Unlike Label Halves = Disable
$C8BSU01

EAN 8 Stitch Unlike Label Halves = Enable
DEFAULT

Datalogic QuickScan Lite QW2100 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	Laser
Read rate (max)	400 reads/s
Yaw reading angle	-70 - 70 °
Tilt reading angle	-45 - 45 °
Pitch reading angle	-65 - 65 °
Linear (1D) barcodes supported	EAN 5, EAN-13, EAN-8, GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	340 mA
Power source type	DC
Product color	Black
Housing material	-
International Protection (IP) code	IP42
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	65 mm
Width	170 mm
Height	70 mm
Weight	119 g
