Datalogic QuickScan Lite QW2100

Setting Up the Reader
Product Reference Guide 7
USB Connection — Connect the reader to a USB port on the terminal/PC using the
correct USB cable for the interface type you ordered. Reference Figure 2.
Keyboard Wedge Connection — The Keyboard Wedge cable has a ‘Y’ connection
from the reader. Connect the female to the male end from the keyboard and the remain-
ing end at the keyboard port at the terminal/PC. Reference Figure 2.

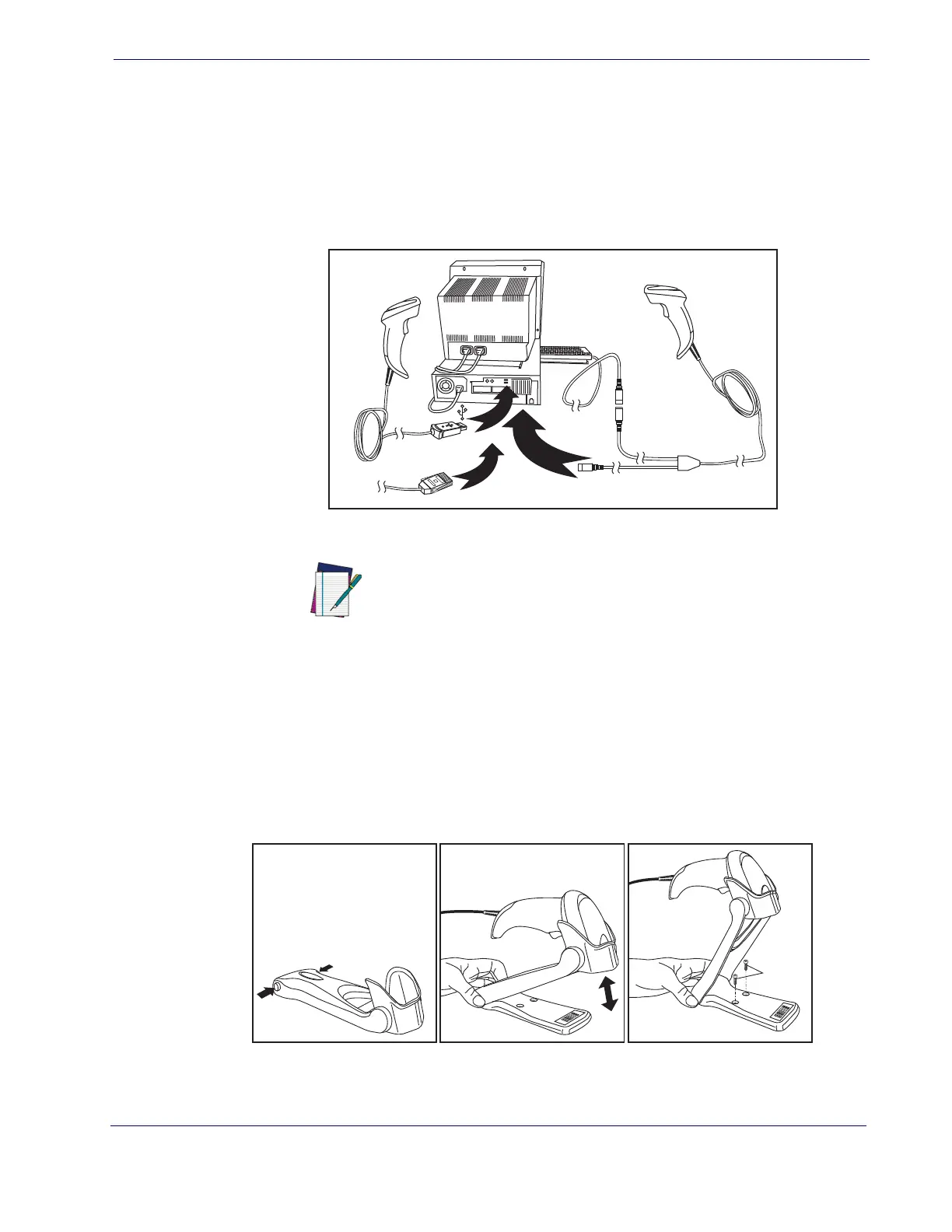

Figure 2. Other Interface Connections
Hands Free Stand
An accessory is available which holds the reader at a convenient angle, allowing hands
free scanning of items. Press in on the release buttons on both sides of the stand to raise
the arm of the stand as shown in
Figure 4. The stand can optionally be attached to a
counter or table using self-tapping screws or double-sided tape.
Figure 3. Adjusting the Stand Arm
NOTE
Specific cables are required for connection to different hosts. The
connectors illustrated above are examples only. Actual connectors
may vary from those illustrated, but the steps to connect the reader
remain the same.
U
S
B
I
B
M
K
e
y
b
o
a
r
d
W
e
d
g
e
or...
or...
Optional
abc
