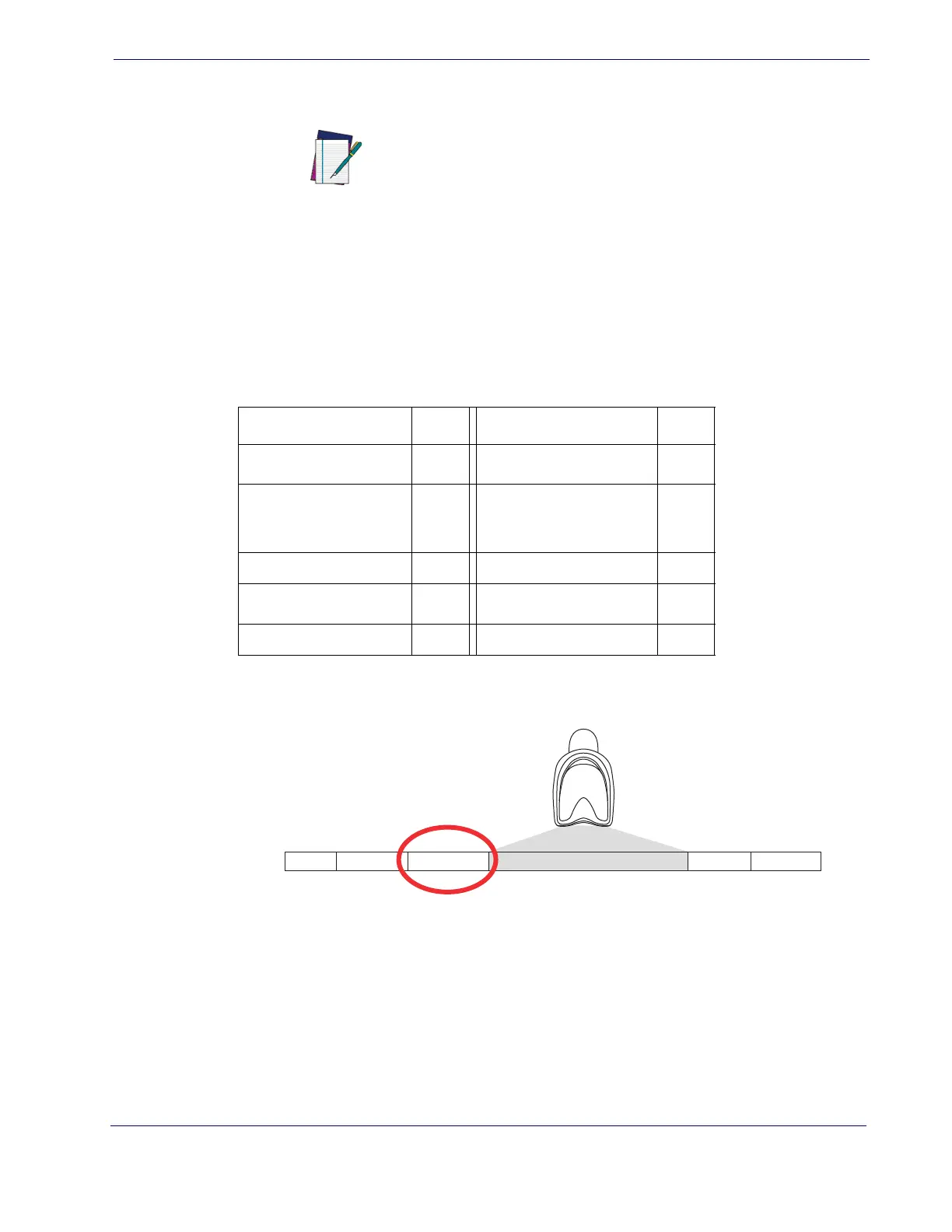

Datalogic QuickScan Lite QW2100 User Manual

Global AIM ID
Product Reference Guide 261
Global AIM ID
AIM label identifiers (as opposed to custom characters you select yourself as with label identifi-
ers) can be included with scanned bar code data. AIM label identifiers consist of three characters
as follows:
• A close brace character (ASCII ‘]’), followed by...
• A code character (see the table below), followed by...
• A modifier character (the modifier character is symbol dependent).
Figure 8. AIM ID
NOTE
This feature enables/disables addition of AIM IDs for all symbology
types.
SYMBOLOGY CHAR SYMBOLOGY CHAR
UPC/EAN
E
a
a. UPC-A and UPC-E labels are converted to EAN 13 when adding AIM IDs.
Code 128/GS1-128 C
Code 39 and
Code 32
A
GS1 DataBar Omnidirec-
tional, GS1 DataBar
Expanded
e
Codabar F Standard 2 of 5 S
Interleaved 2 of 5 I ISBN
X
b
b. ISBN (X with a 0 modifier character)
Code 93 G Code 11 H
Prefix SuffixLabel ID Label IDBar Code DataAIM ID

Datalogic QuickScan Lite QW2100 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	Laser
Read rate (max)	400 reads/s
Yaw reading angle	-70 - 70 °
Tilt reading angle	-45 - 45 °
Pitch reading angle	-65 - 65 °
Linear (1D) barcodes supported	EAN 5, EAN-13, EAN-8, GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	340 mA
Power source type	DC
Product color	Black
Housing material	-
International Protection (IP) code	IP42
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	65 mm
Width	170 mm
Height	70 mm
Weight	119 g
