Datalogic QuickScan Lite QW2100 User Manual

UPC/EAN Global Settings
Product Reference Guide 107

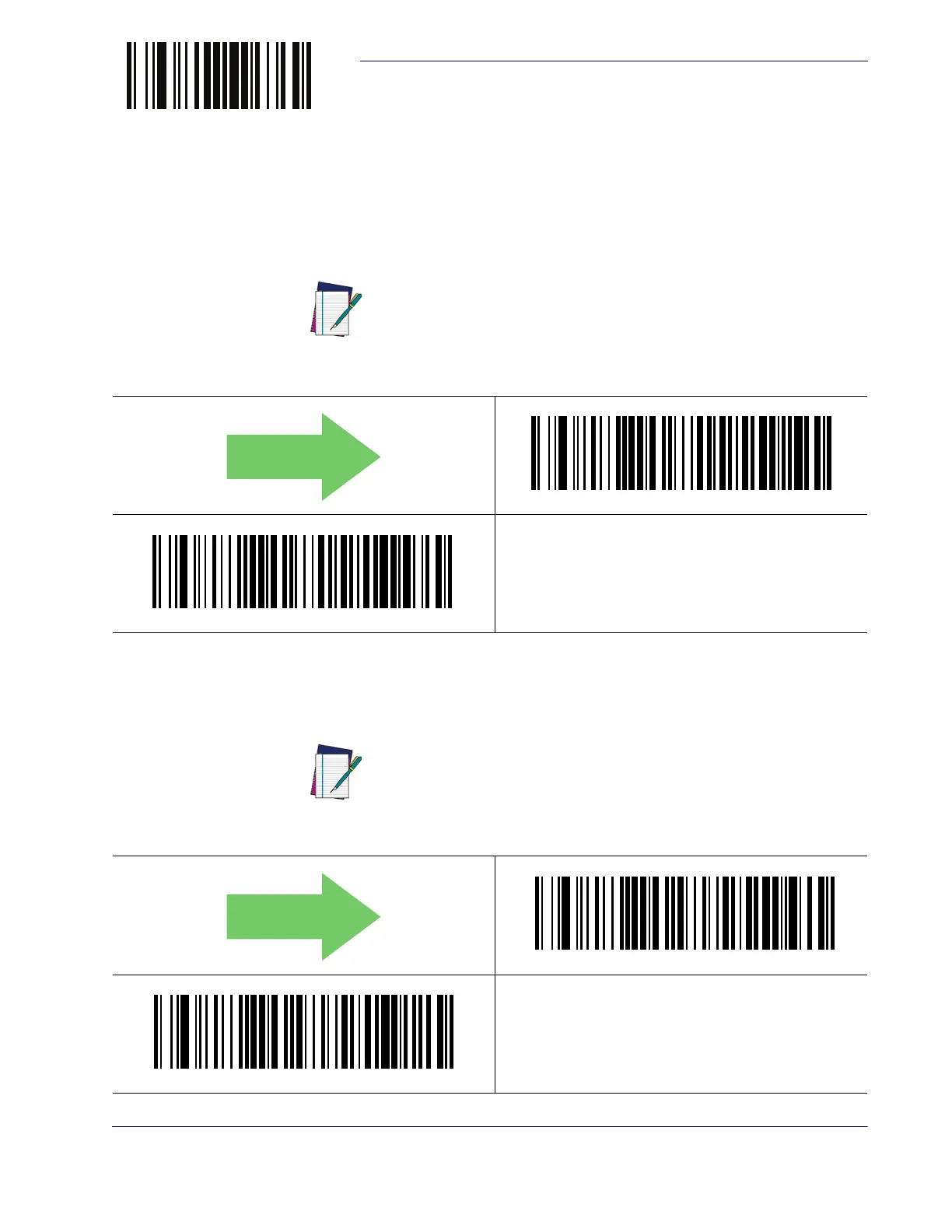

ENTER/EXIT PROGRAMMING MODE
UPC/EAN Global Settings — cont.
UPC/EAN Guard Insertion
Enables/disables the ability to insert either a missing leading or trailing guard on an otherwise
complete UPC-A/EAN-13 segment.
UPC/EAN Stitch Exact Label Halves
Enables/disables the ability to stitch exact UPC-A/EAN 13 label halves with no overlapping
characters.
NOTE
The segment must have the structure GddddddCdddddd or
ddddddCddddddG.
$CUNG100
UPC/EAN Guard Insertion = Disable
$CUNG101

UPC/EAN Guard Insertion = Enable
DEFAULT
NOTE
The label halves being stitched together to assemble a complete
label must have the structure GddddddC and CddddddG.
$CUNSE00
UPC/EAN Stitch Exact Label Halves = Disable
$CUNSE01

UPC/EAN Stitch Exact Label Halves = Enable
DEFAULT

Datalogic QuickScan Lite QW2100 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	Laser
Read rate (max)	400 reads/s
Yaw reading angle	-70 - 70 °
Tilt reading angle	-45 - 45 °
Pitch reading angle	-65 - 65 °
Linear (1D) barcodes supported	EAN 5, EAN-13, EAN-8, GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	340 mA
Power source type	DC
Product color	Black
Housing material	-
International Protection (IP) code	IP42
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	65 mm
Width	170 mm
Height	70 mm
Weight	119 g
