Symbologies
196 QuickScan
TM
Lite QW2100
ENTER/EXIT PROGRAMMING MODE
Code 11 — cont.
Code 11 Character Correlation
When correlation is enabled, the bar code reader will combine label data from multiple scans
when decoding. Enabling correlation will help the reader read labels that have some spots and/or
voids. It may also help read labels that have damaged areas. Enabling correlation will also
increase the chances that a label will be read incorrectly.
Code 11 Stitching
This option enables/disables stitching for Code 11 labels. When parts of a Code 11 bar code are
presented to the reader with this feature enabled, the bar code parts will be assembled by the
reader’s software, and the data will be decoded if all bar code proofing requirements are met.

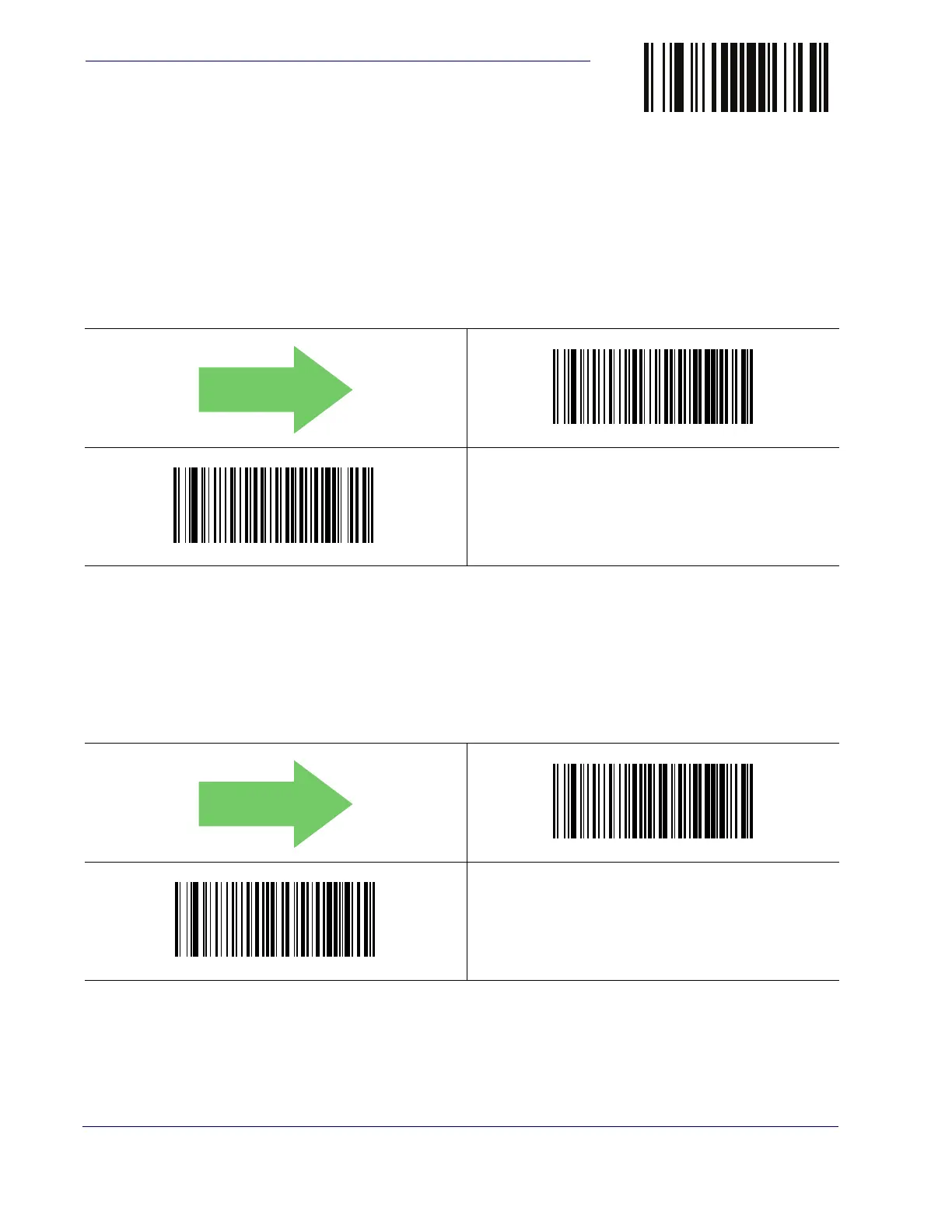

$CC1CO00
Code 11 Character Correlation = Disable
$CC1CO01

Code 11 Character Correlation = Enable
DEFAULT
$CC1ST00
Code 11 Stitching = Disable
$CC1ST01

Code 11 Stitching = Enable
DEFAULT

Datalogic QuickScan Lite QW2100 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	Laser
Read rate (max)	400 reads/s
Yaw reading angle	-70 - 70 °
Tilt reading angle	-45 - 45 °
Pitch reading angle	-65 - 65 °
Linear (1D) barcodes supported	EAN 5, EAN-13, EAN-8, GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	340 mA
Power source type	DC
Product color	Black
Housing material	-
International Protection (IP) code	IP42
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	65 mm
Width	170 mm
Height	70 mm
Weight	119 g
