Data Editing
70 QuickScan
TM
Lite QW2100
ENTER/EXIT PROGRAMMING MODE
Label ID
A Label ID is a customizable code of up to three ASCII characters (each can be one of hex
0x01-0xFF), used to identify a bar code (symbology) type. It can be appended previous to or fol-
lowing the transmitted bar code data depending upon how this option is enabled. This feature
provides options for configuring custom Label IDs as a pre-loaded set (see Label ID: Pre-
loaded Sets on page 70) or individually per symbology (see Label ID: Set Individually
Per Symbology on page 71). If you wish to program the reader to always include an indus-
try standard label identifier for ALL symbology types, see the previous feature Global AIM ID
on page 69.

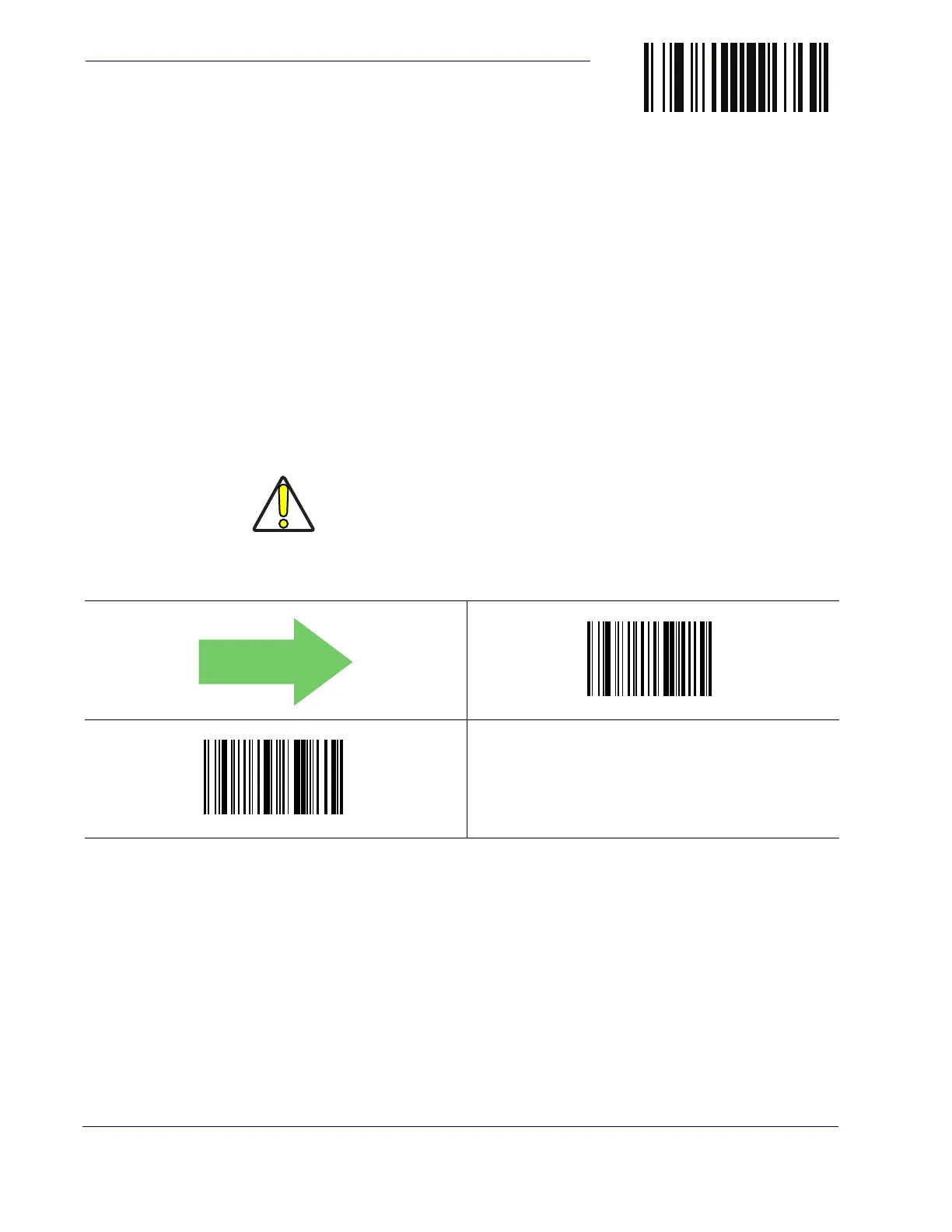

Label ID: Pre-loaded Sets
The reader supports two pre-loaded sets of Label IDs. shows the USA set and the EU set. See
Label ID: Pre-loaded Sets on page 262 for more information concerning the pre-loaded
sets that are provided.
CAUTION
When changing from one Label ID set to another, all other reader configura-
tion settings, including the host interface type, will be erased and set to the
factory defaults. Any custom configuration or custom defaults will be lost.
$AE
Label ID Pre-loaded Set = USA Set
$Ae

Label ID Pre-loaded Set = EU Set
DEFAULT

Datalogic QuickScan Lite QW2100 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	Laser
Read rate (max)	400 reads/s
Yaw reading angle	-70 - 70 °
Tilt reading angle	-45 - 45 °
Pitch reading angle	-65 - 65 °
Linear (1D) barcodes supported	EAN 5, EAN-13, EAN-8, GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	340 mA
Power source type	DC
Product color	Black
Housing material	-
International Protection (IP) code	IP42
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	65 mm
Width	170 mm
Height	70 mm
Weight	119 g
