Standard Cable Pinouts
Figure 10 and Table 2 provide standard pinout information for the reader’s cable.

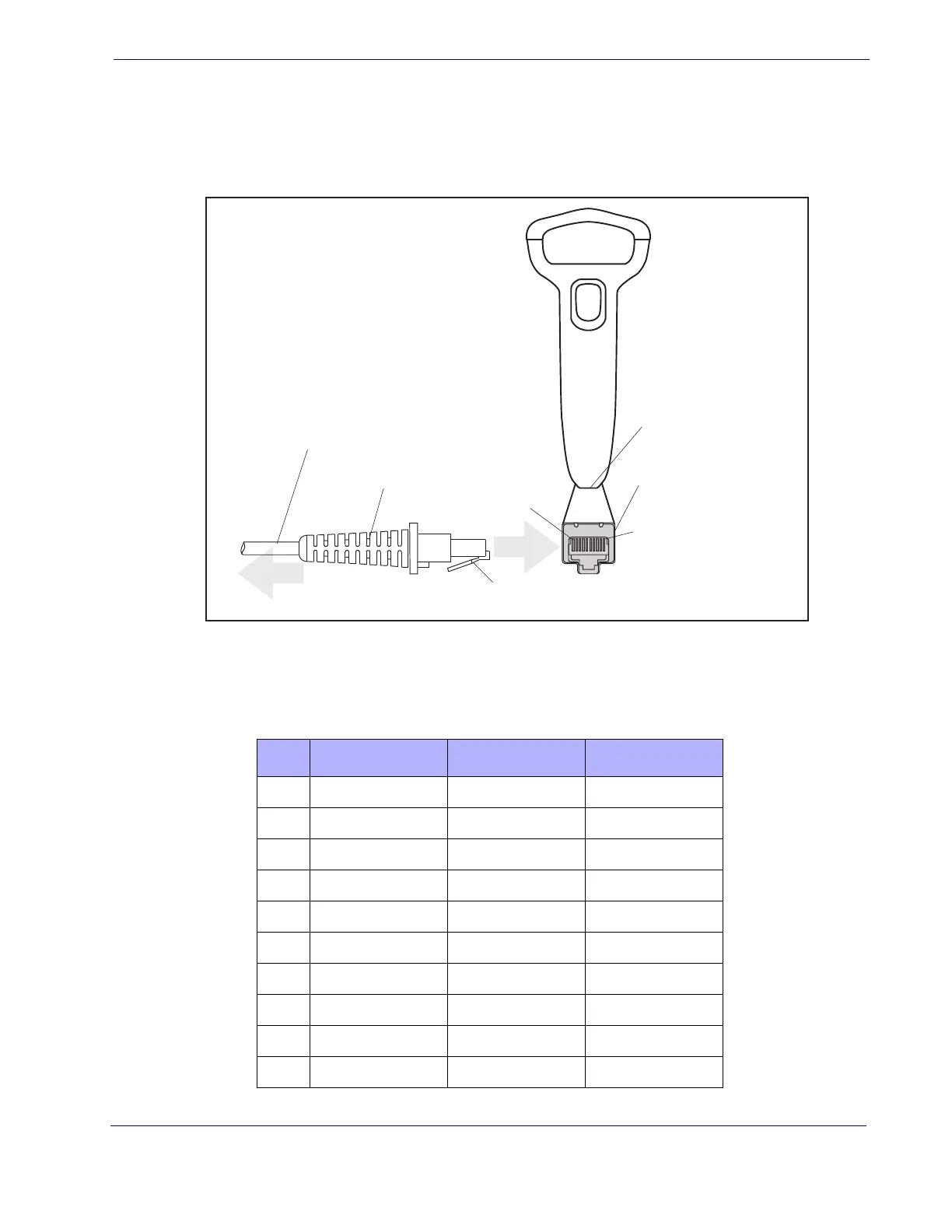

Figure 10. Standard Cable Pinouts
The signal descriptions in Table 2 apply to the connector on the reader and are for ref-
erence only.
Table 2. Standard Cable Pinouts — Reader Side
Cable Clip (Latch)
To Host
Cable
Cable Strain Relief
Bottom of Imager
Interface Cable Port
Pin 1
Pin 10
Pin RS-232 USB Keyboard Wedge
1 RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4GND GND GND
5RX
6TX
7 VCC VCC VCC
8 CLKOUT (PC side)
9 DATAOUT (PC side)
10 CTS (in)
