Description Function Comment
6101 Running time Offset adjustment of the total running hours
counter.
Counting when the running feedback
is present.
6102 Running time Offset adjustment of the total running thou-
sand hours counter.
Counting when the running feedback
is present.
6103 GB opera-
tions
Offset adjustment of the number of genera-
tor breaker operations.
Counting at each GB close command.
6104 MB opera-
tions
Offset adjustment of the number of mains
breaker operations.
Counting at each MB close command.
6105 kWh reset Resets the kWh counter. Automatically resets to OFF after the
reset. The reset function cannot be left
active.
6106 Start at-
tempts
Offset adjustment of the number of start at-
tempts.
Counting at each start attempt.
Additional counters for "Running hours" and "Energy" can be read out from the PC utility soft-
ware.
6.27 Pulse input counters
Two configurable digital inputs can be used for counter input. The two counters can be used for e.g. fuel con-
sumption or heat flow. The two digital inputs can ONLY be configured for pulse inputs via M-Logic, as shown

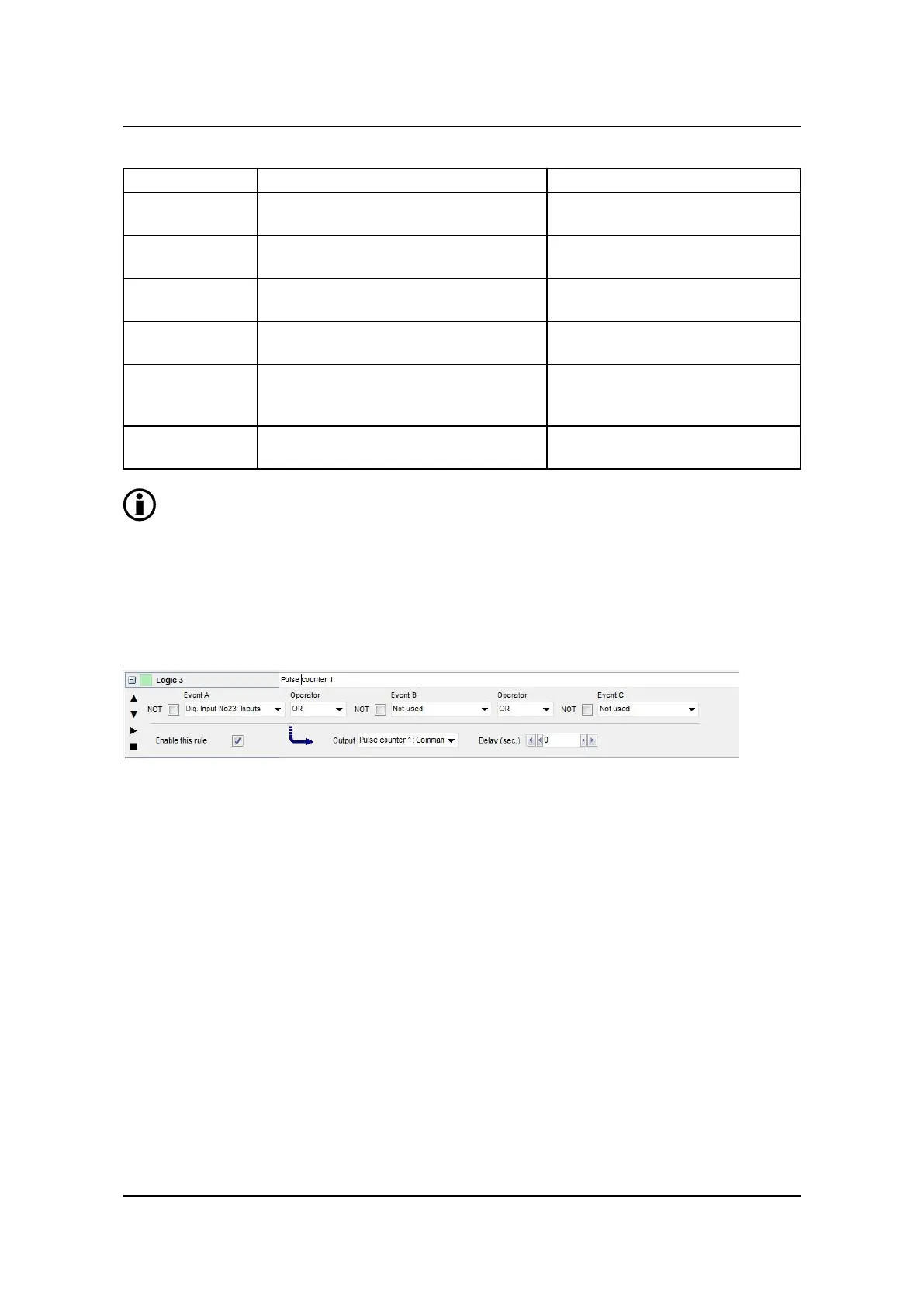

in the example below.
Scaling of pulse input can be set in menu 6851/6861. It is possible to determine the scale value to be pulse/
unit or unit/pulse.
Counter values can be read out in display, and the number of decimals can be adjusted in menu 6853/6863.
6.28 M-Logic
The M-Logic functionality is included in the unit and is not an option-dependent function.
M-Logic is used to execute different commands at predefined conditions. M-Logic is not a PLC but substitutes
one, if only very simple commands are needed.
M-Logic is a simple tool based on logic events. One or more input conditions are defined, and at the activa-
tion of those inputs, the defined output will occur. A great variety of inputs can be selected, such as digital
inputs, alarm conditions and running conditions. A variety of the outputs can also be selected, such as relay
outputs, change of genset modes and change of running modes.
AGC 100 Designer's Reference Handbook
4189340766 UK
Additional functions
DEIF A/S Page 91 of 152
