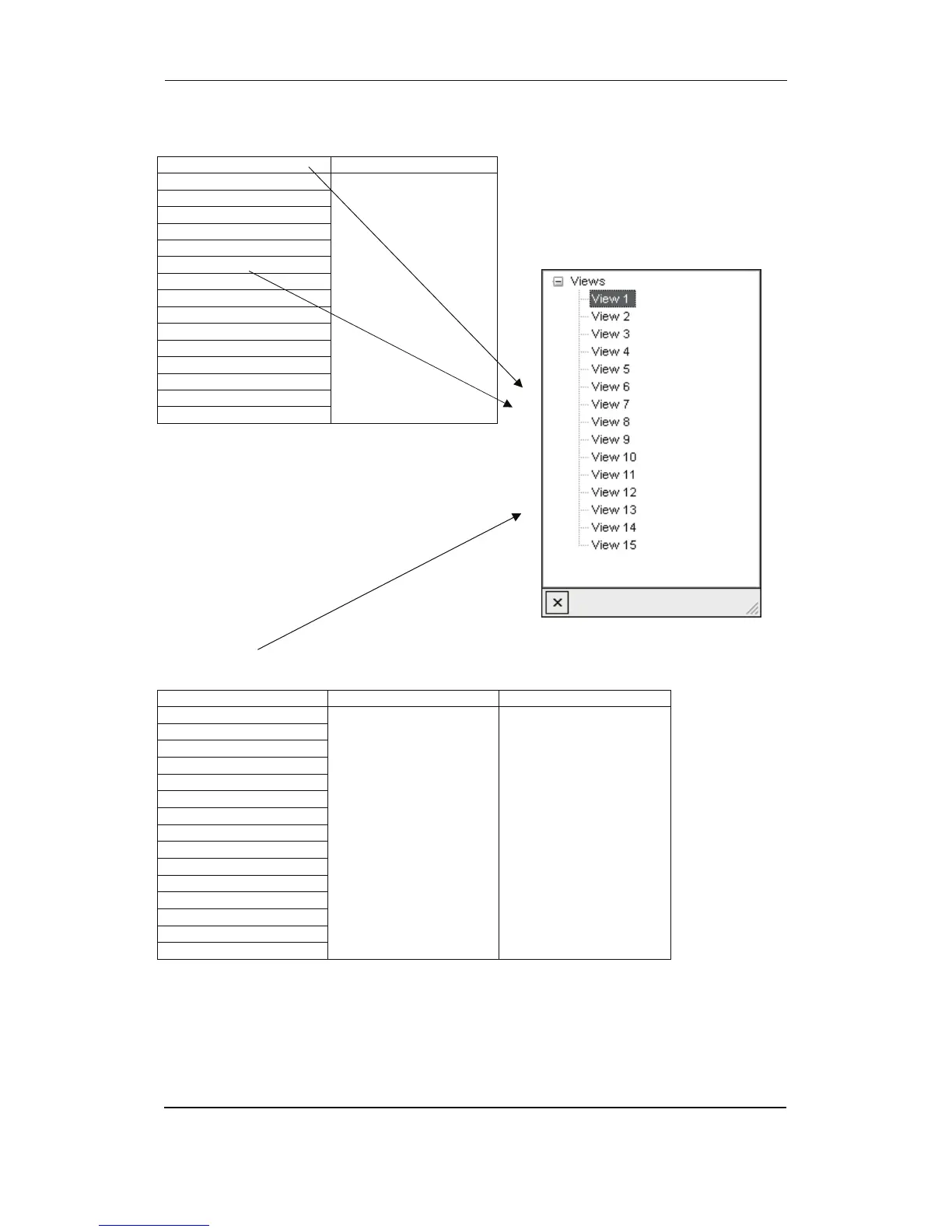

View window overview
* The default window is automatically selected after the generator breaker closure when the
gen-set is in normal operation, e.g. fixed power mode after the ramping up.
Windows V1
View 1
View 2
View 3
View 4
View 5
View 6
View 7
View 8
View 9
View 10
View 11
View 12
View 13
View 14
View 15
Manual selection with key
UP or key DOWN push-
buttons
Windows V 2 V 3
View 1
View 2
View 3
View 4
View 5
Changes automatically be-
tween the 5 first views:
1. View 1 (Start prepare)
2. View 2 (Sync.)
3. View 3 (Ramp up/down)
4. View 4
5. View 5 (Default*)
No manual selection.
All three lines show
measuring values.
Changes automatically be-
tween the 5 first views:
1. View 1 (Start prepare)
2. View 2 (Sync.)
3. View 3 (Ramp up/down)
4. View 4
5. View 5 (Default*)
No manual selection.
Line 1 shows the text 1…5
(above).
Line 2 and line 3 show
measurements.
