Deif Multi-line 2 User Manual

AGC Designer’s Reference Handbook
DEIF A/S Page 72 of 168
Optional PCBs

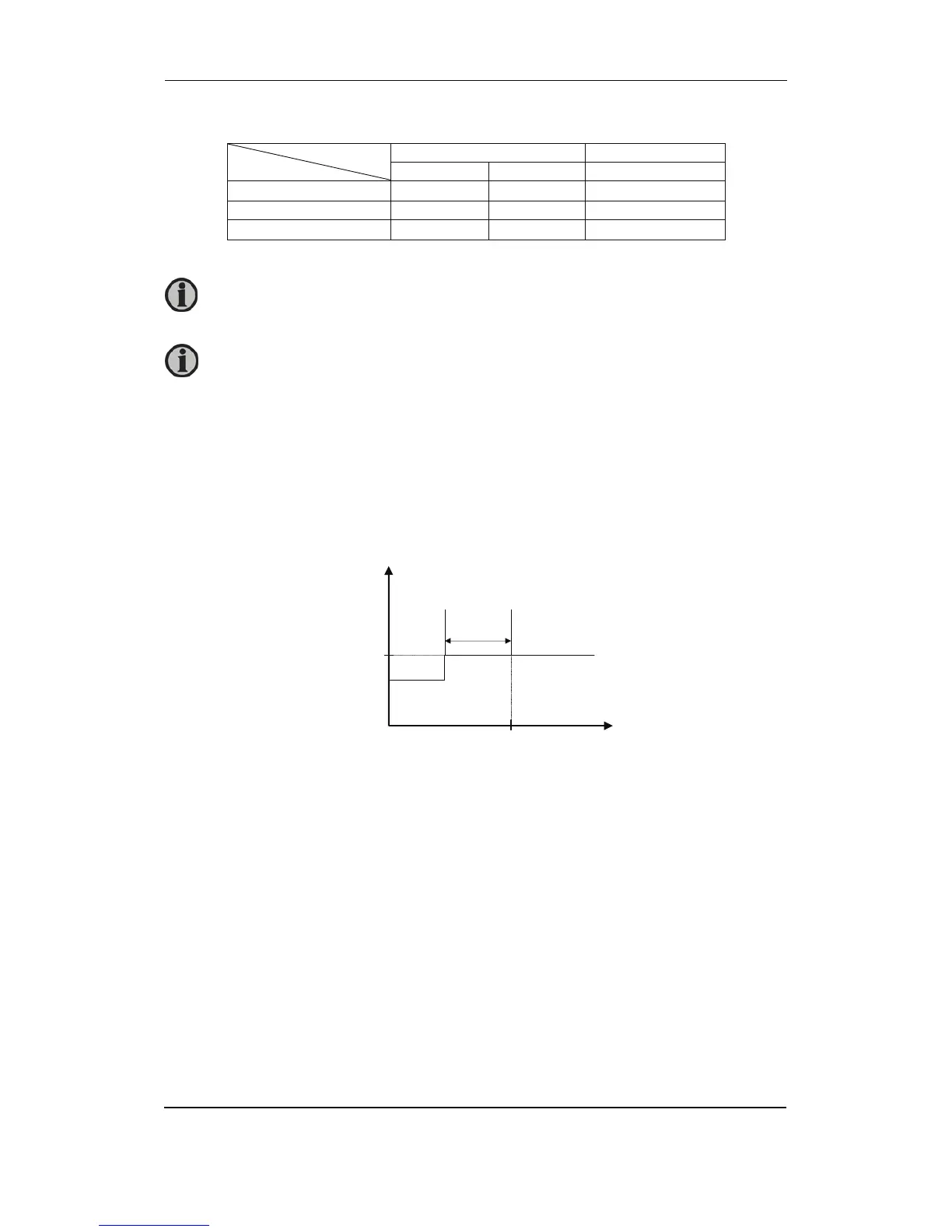

Automatic RUN status
Alarms can be adjusted to activate only when the running feedback is active and a specific time
delay has expired.
The diagram below illustrates that after activation of the running feedback, a run status delay will
expire. When the delay expires, alarms with
RUN status will be activated.
Alarm inhibit input 23
Input
Input ON Input OFF Comment
Option M12 -
Active Digital inputs
Option M13 -
Active Digital inputs
Option M15 -
Active 4-20mA inputs
t
t
R
U
N
Run. feedback
Alarms active
Function inputs such as running feedback, remote start or access lock are never
inhibited. Only alarm inputs can be inhibited.
If an alarm is configured to activate a limit relay the relay will activate despite
that the inhibit input is ON.
