Note: A full-height tape drive must be installed in the lowest bay of the module.
2. Align and slowly insert the new tape drive into the drive bay along the alignment rails (▌1▐ in
Figure 60) while the drive assembly is supported. The tape drive must be flush with the back panel of
the library.
3. Tighten the captive thumbscrews (▌1▐ in Figure 61 on page 108) with your fingers until the tape drive
is secure.

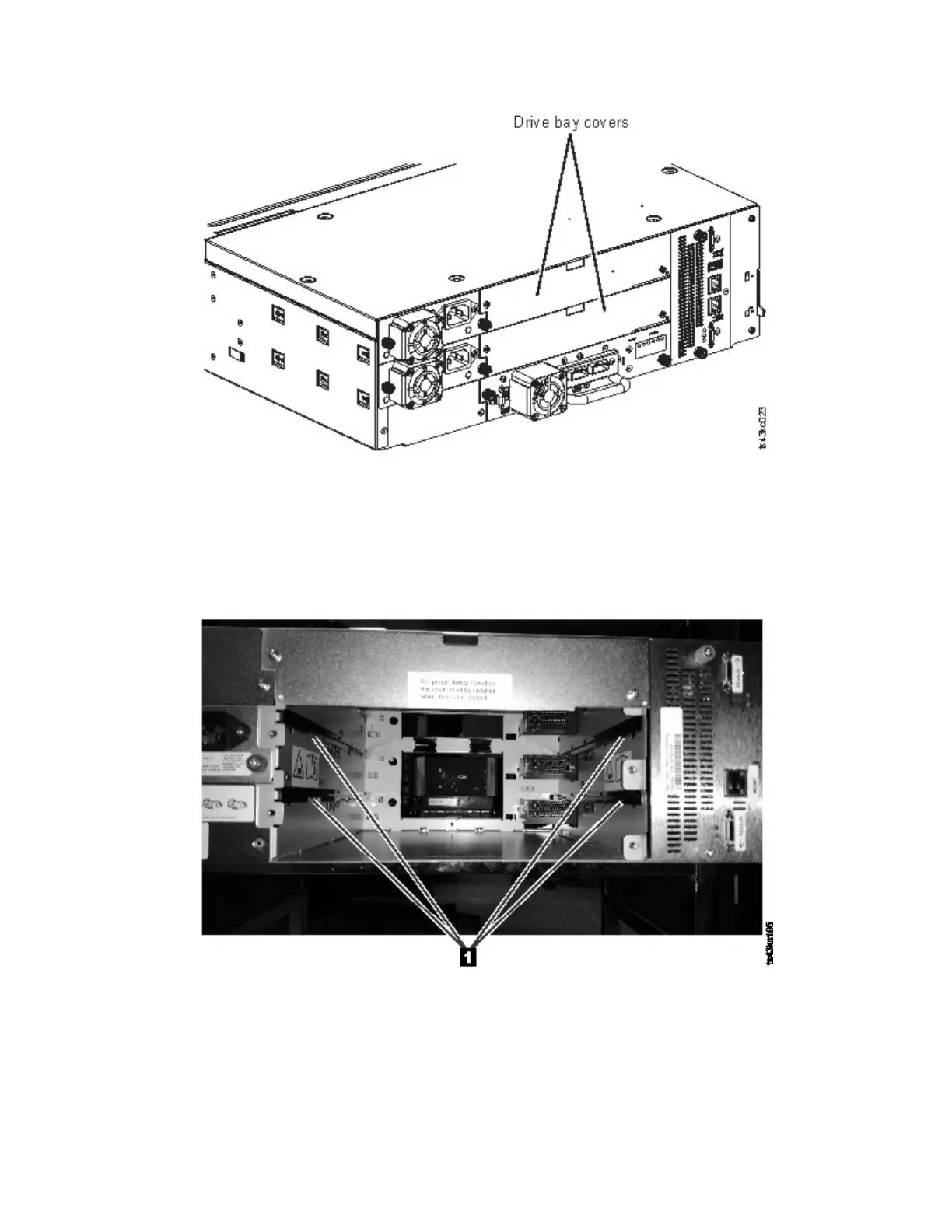

Figure 59. Drive bay covers
Figure 60. Alignment rails
Upgrading and servicing 107
