3. Place the library at the front of the rack on the support angles of the rails and push it into the rack to
the back stop.
4. If you are installing multiple modules, verify that this module is installed directly above or below its
adjacent module and is contained within the correct 3U volume. Remove the tape that is covering the
alignment pin lock/unlock lever on the rear of each module. The gap between modules must be less
than 4 mm.

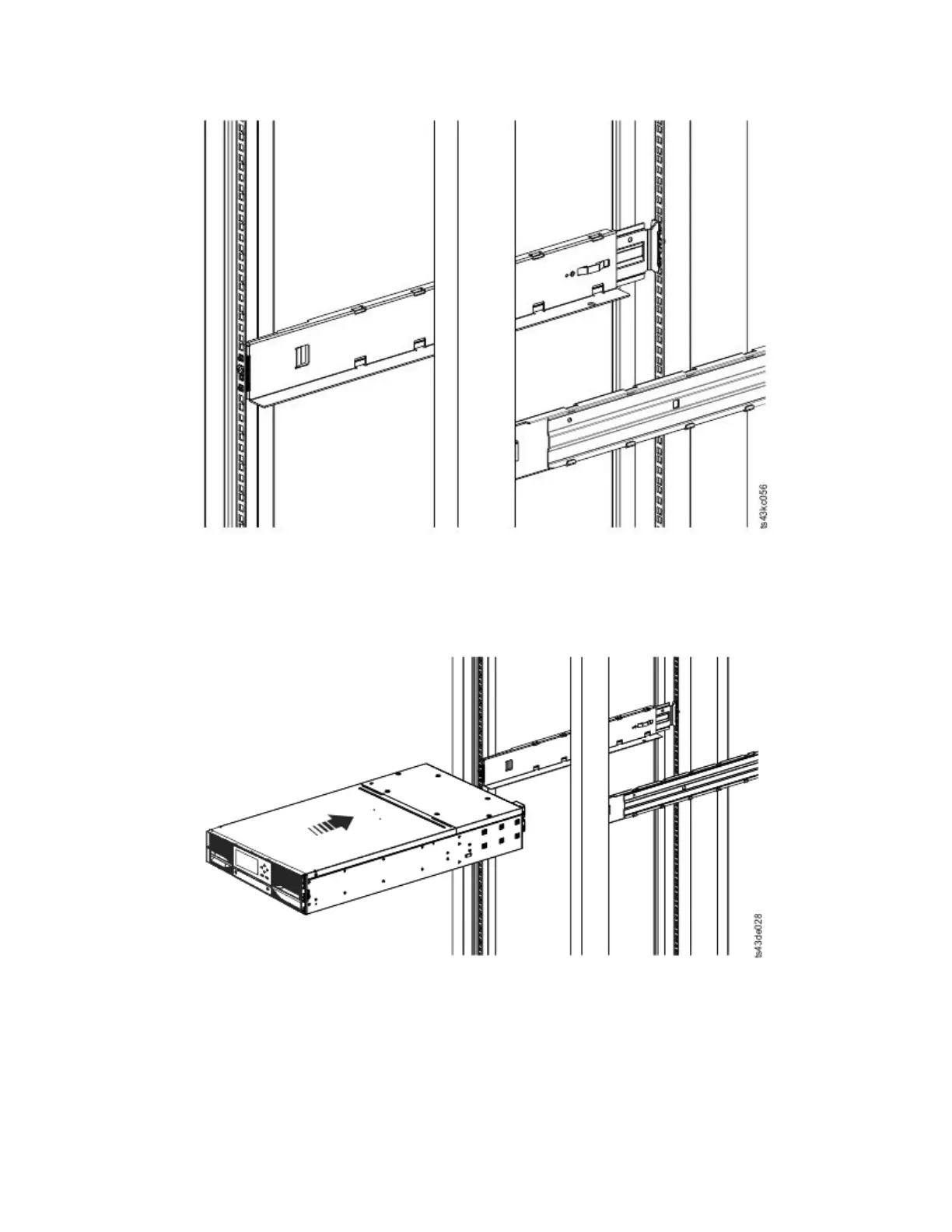

Figure 41. Side rails installed
Figure 42. Sliding the library into the rack
Installing 45
