7. Reverse the steps to replace the failed spooling mechanism with the new unit.
8. Follow the steps in “Installing the accessor into the Base Module” on page 124 and “After the accessor
and spooling mechanism installation” on page 126 to put the library back into service.
Removing or replacing a magazine
It is recommended that you unlock the magazine with the Operator Panel, Management GUI, or the
release button on the front panel. If these methods fail, or if a magazine needs to be removed when the
power to the device is off, you can release the magazine manually. Only one magazine or I/O station can
be open at a time.
Note: This procedure is completed more effectively while applications are idle. While the magazine is
extended, the library robotic assembly cannot move media.
1. Log in as an administrator.
2. Go to Library > Modules and Magazines.

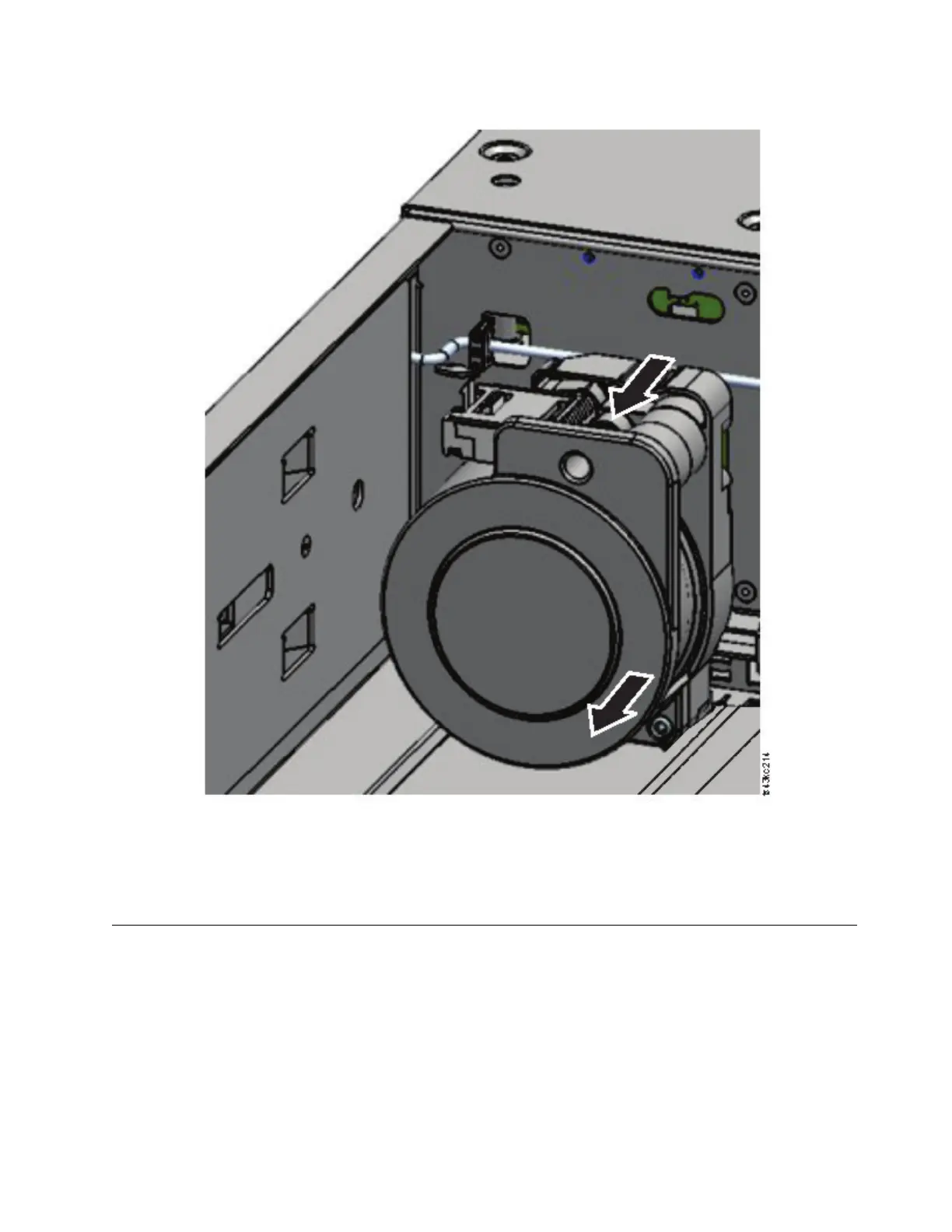

Figure 83. Removing the spooling mechanism
Upgrading and servicing 133

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dell EMC ML3 and is the answer not in the manual?

Dell EMC ML3 Specifications

General IconGeneral
Number of Drives1
CategoryTape Library
Drive TechnologyLTO
Humidity20% to 80% (non-condensing)
Drive TypeLTO Ultrium
Maximum Capacity15 TB (compressed)
Interface6Gb/s SAS
Max Data Transfer Rateup to 750 MB/s (with compression)
Operating Temperature10°C to 35°C
Non-operating Temperature-40°F to 140°F (-40°C to 60°C)
