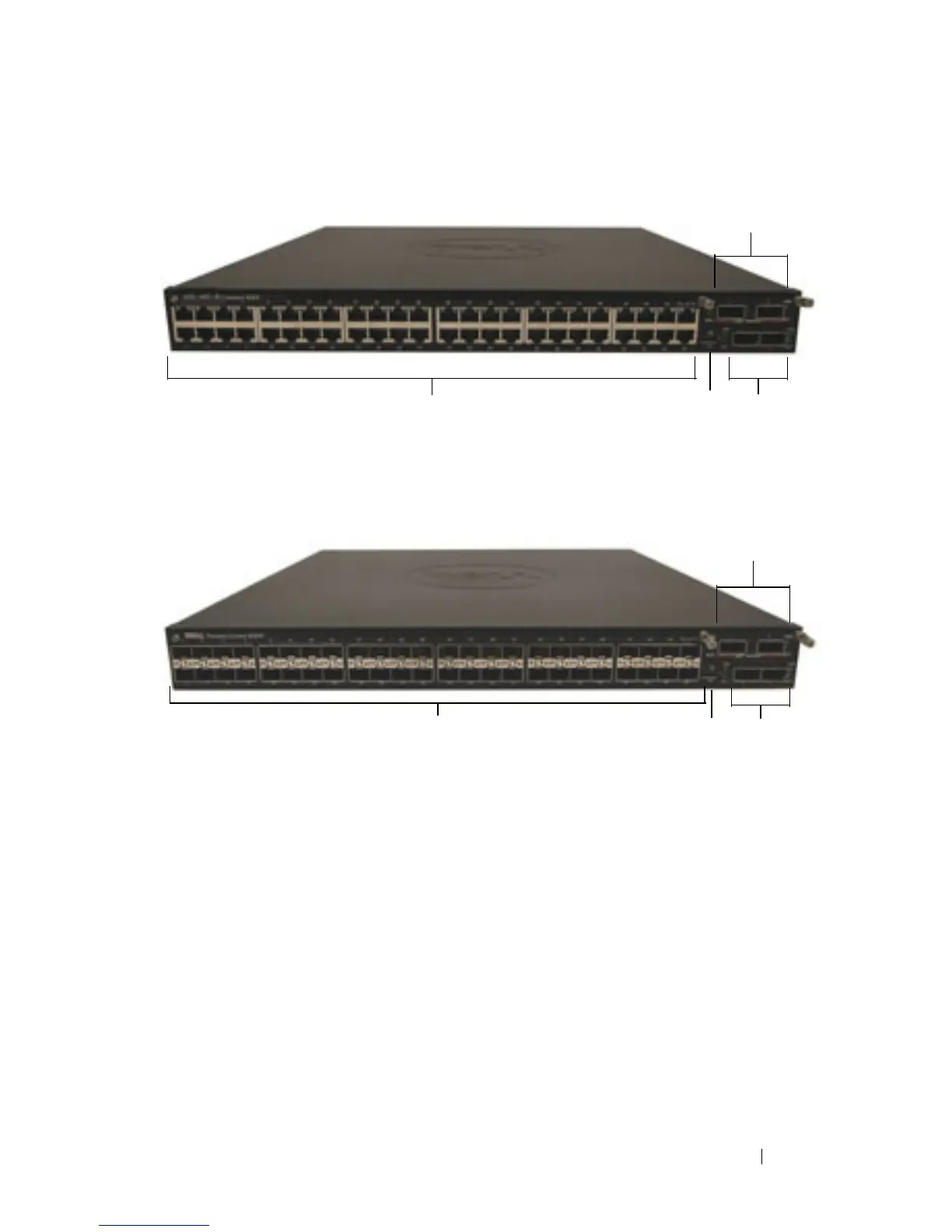

Figure 3-17. N4064 Front Panel
Figure 3-18. N4064F Front Panel
The N4064 and N4064F switches can be stacked with other N4000 switches
using the 10G or 40G SFP+ or QSFP modules in the module bay or fixed
QSFP ports.
Hot-Pluggable Interface Modules
The N4032, N4032F, N4064, and N4064F switches support the following hot-
pluggable interface modules:
•
N4000
-QSFP — 2 x 40G QSFP port module - defaults to 2 x 40G
•
N4000
-SFP+ — 4 x SFP+ port module - defaults to 4 x 10G mode
•
N4000
-10GBT — 4 x 10GBase-T ports module - defaults to 4 x 10G mode
• Blank module — defaults to 10G mode
10GbE Copper Ports
USB port
Fixed QSFP
ports
Module bay
10GbE Fiber Ports Fixed QSFP
ports
Module bay
USB port
