Dell Networking N4000 Series User Manual

Configuring Port and System Security 553

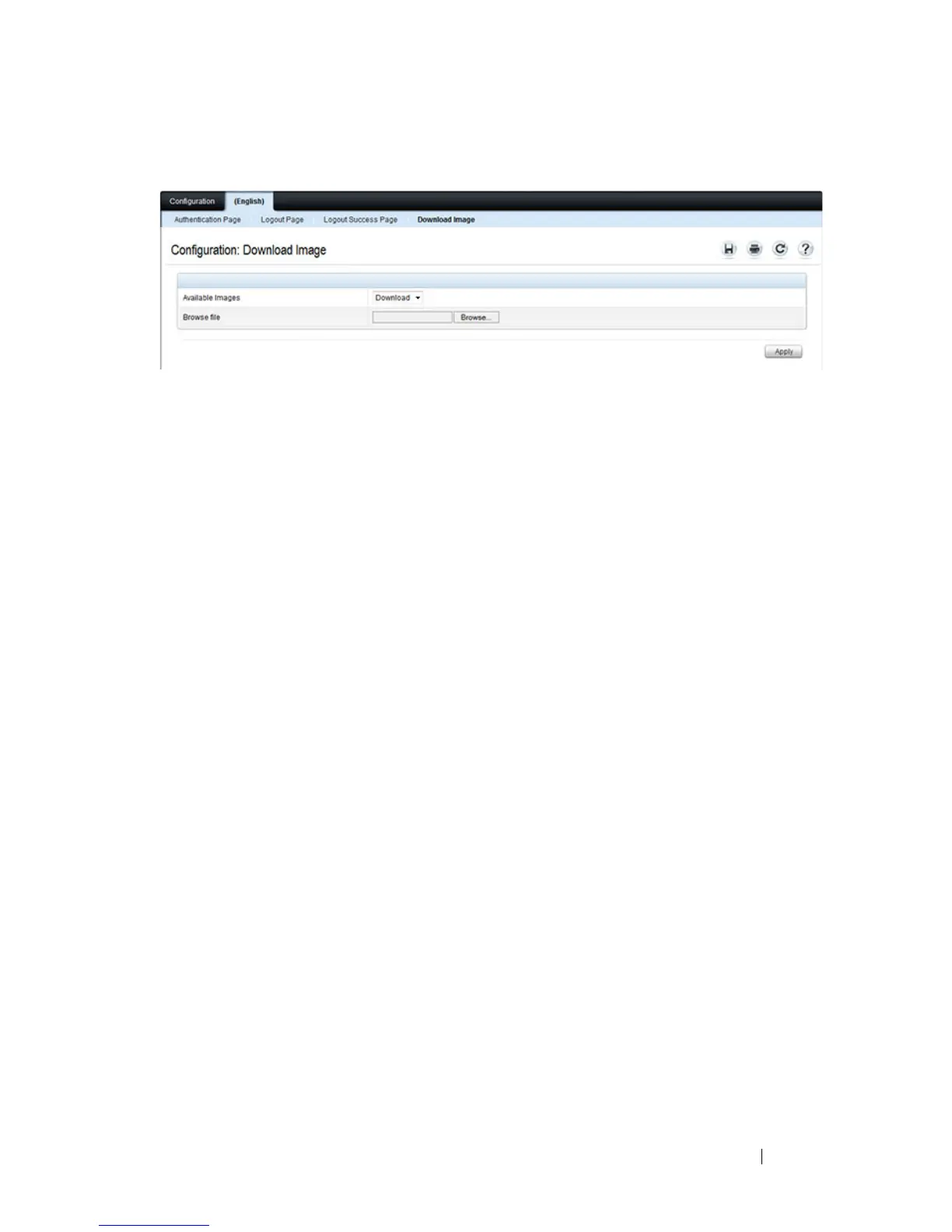

Figure 19-20. Captive Portal Download Image Page
3 Make sure Download is selected in the Available Images menu, and click
Browse .
4 Browse to the directory where the image to be downloaded is located and
select the image.
5 Click Apply to download the selected file to the switch.
6 To customize the Authentication Page, which is the page that a user sees
upon attempting to connect to the network, click the
Authentication Page
link.

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
