Dell Networking N4000 Series User Manual

554 Configuring Port and System Security

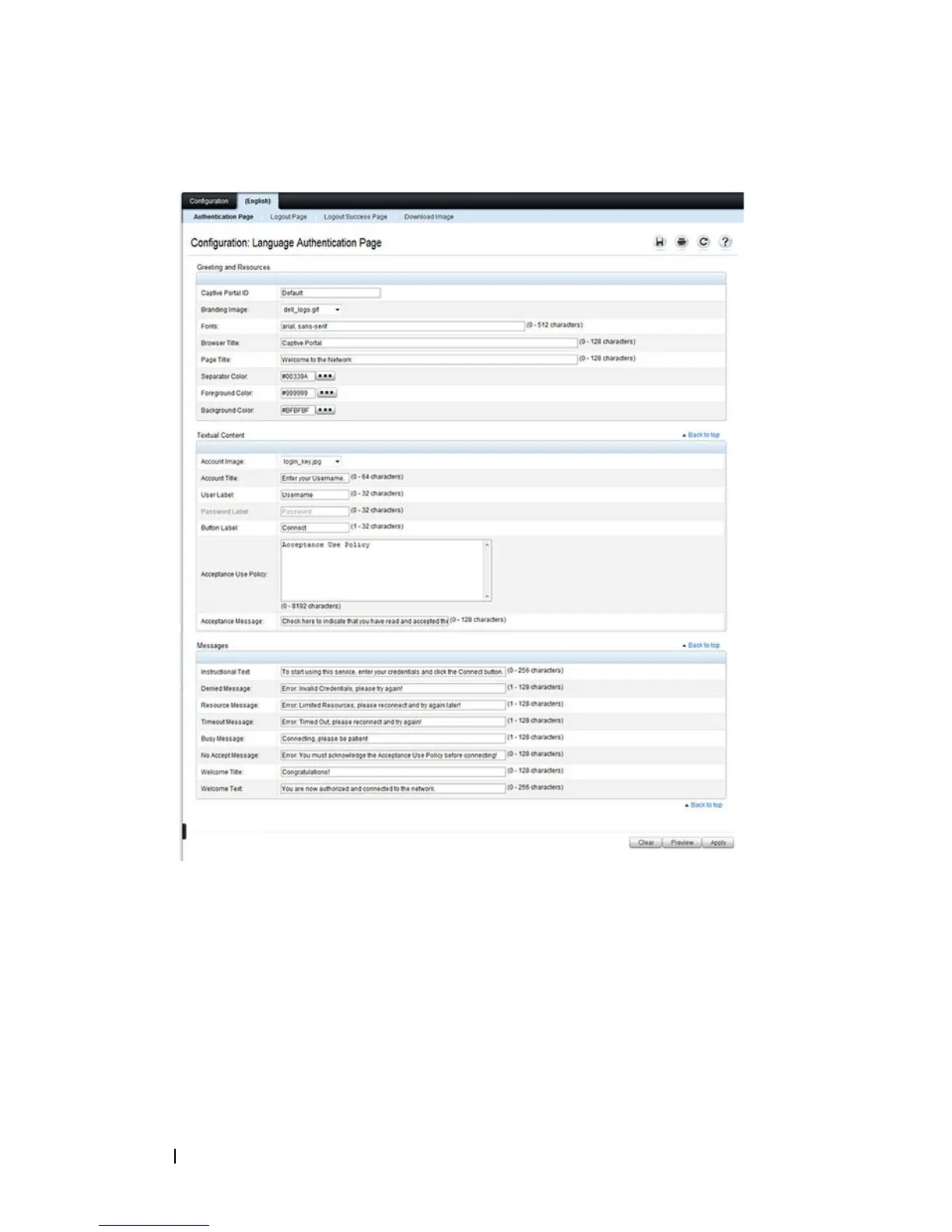

Figure 19-21. Captive Portal Authentication Page
7 Select the branding image to use and customize other page components
such as the font for all text the page displays, the page title, and the
acceptance use policy.
8 Click Apply to save the settings to the running configuration or click
Preview to view what the user will see. To return to the default views, click
Clear .

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
