Deprag AST11-1 User Manual

108
17.5 Toolbox
The toolbox increases the application possibilities of the AST11 sequence controller on
manual stations, as well as in connection with a PLC-controller. The toolbox allows the use
of 7 different bits/sockets with a diameter of up to 24mm (AF 19 mm), which can be in-
serted into 7 individual cavities. The selection of the screwdriving program on the AST11 is
automatically adapted to the corresponding bit/socket.
Designation Part no.
Toolbox 398097 B
Connector cable AST11 to Toolbox (with power supply 24 V/45 W) 385451 A
17.6 Standfuß
Base to use AST11 as a tabletop unit.
Designation Part no.
Base 405278 A
17.7 Barcode scanners
The barcode scanner cannot be used in conjunction with the printer or with the fieldbus
module.
All barcode scanners, which process up to 24 characters and deliver exactly one end-of-
code character, are supported. Scanners with two end-of-code characters are not sup-
ported. The end-of-code character can be between 0x0A and 0x0F (corresponding to
decimal values of between 10 and 15).

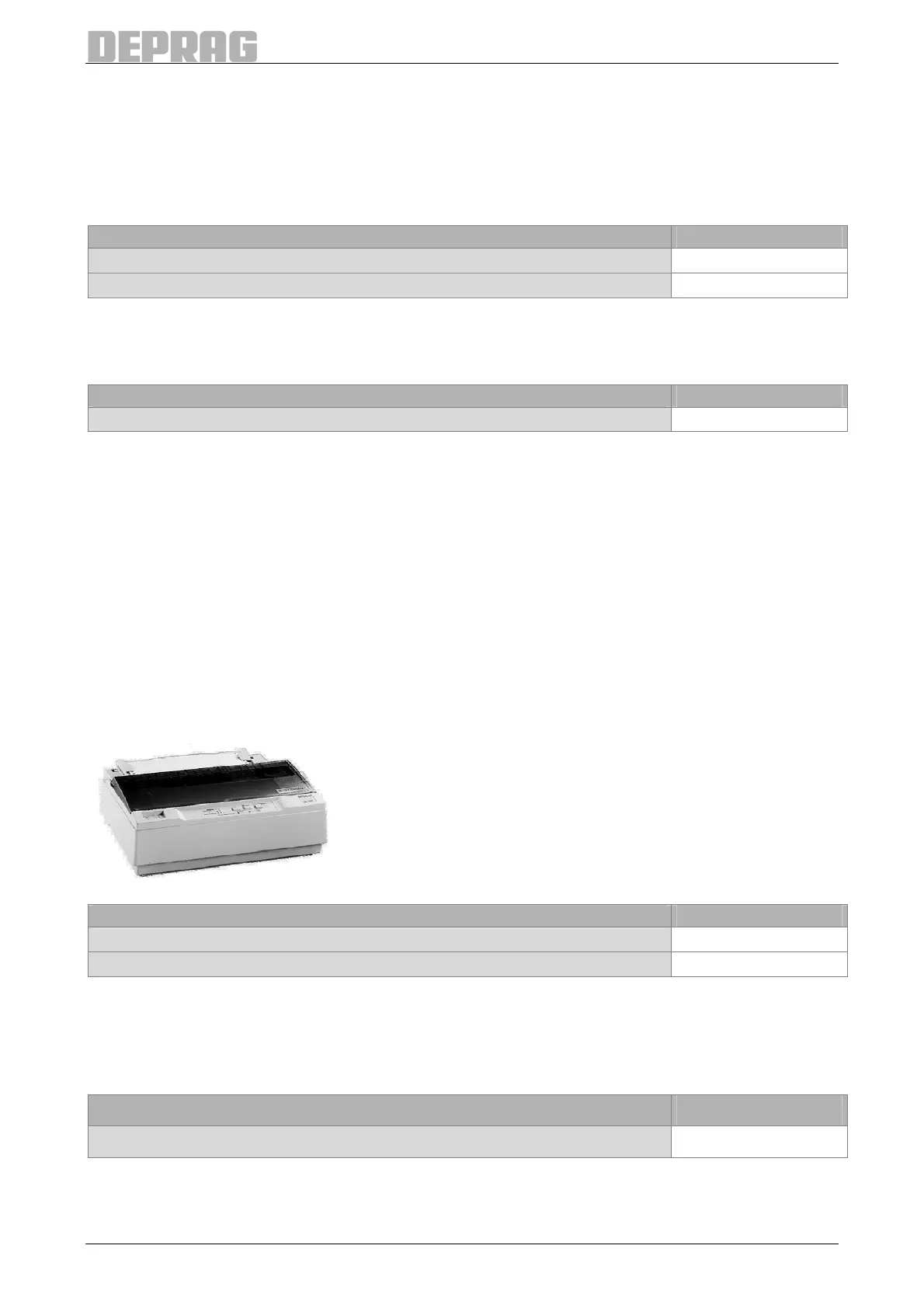

17.8 Printer connector
The printer cannot be used in conjunction with the barcode scanner or with the fieldbus
module.
Designation Part no.
ND100 printer 823476
Connection cable 349938 A
17.9 Hardware-Module
Only for type AST11-1 and AST11-2.
Safe stop without rebooting system
Designation Part no.
EMERGENCY-STOP-Module
385521 A
