Deprag AST11-1 - Process Data  Screwdriving Sequences; Figure 18: System Data, Lower Part of the Page

55

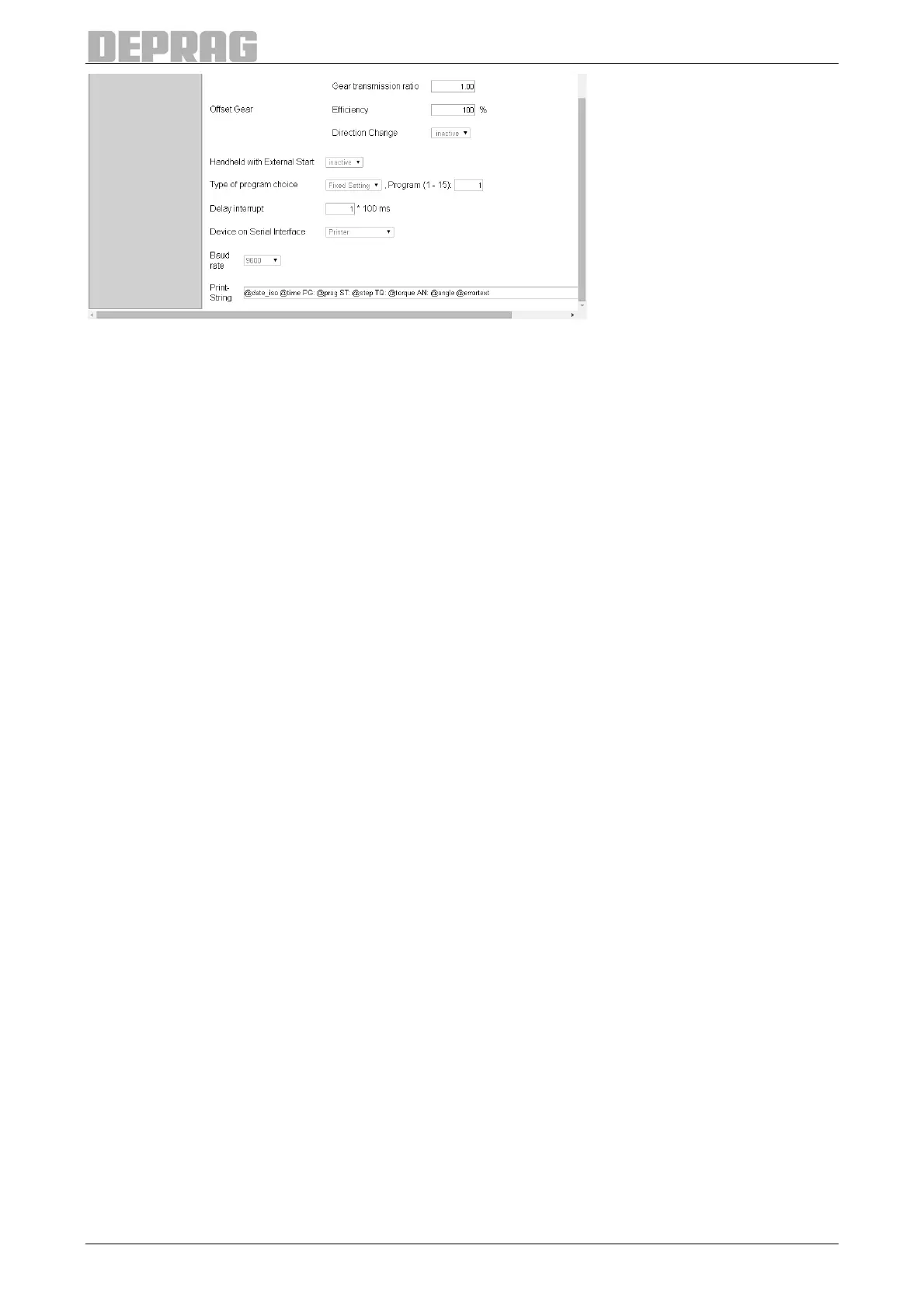

Figure 18: System data, lower part of the page
• Print options
o values of O.K. and NOT O.K. assemblies
o only values of O.K. assemblies
o only values of NOT O.K. assemblies
• Offset gear: If the screwdriver is equipped with an external ancillary transmission, this
area indicates the corresponding values for the offset gearing; otherwise, the stan-
dard values are displayed.
o Gear ratio: the offset ratio of the eventual integrated offset gearing
o Efficiency: the efficiency grade of the offset gear in reference to the torque
o Direction change: this option indicates whether the offset gear reverses the
turn direction of the screwdriver
• Handheld with External Start: displays if handheld screwdriver will be started by a
higher level controller (only visible for handheld screwdrivers)
• Type of program choice: indicates via which interface program selection is controlled
• Delay interrupt: delay interrupt set for the handheld screwdriver
• Device for the serial interface: device into which the serial interface is connected
o printer
o barcode scanner
o fieldbus
• Additional data displayed according to the selected device
8.3.4.4 Process Data  Screwdriving Sequences
This page indicates the available screwdriving programs and their parameters.
