8.3.4.15 Tools  Manuals

On this page you can transfer and read all available manuals for the sequence controller

AST11.

If your browser has a pdf plug in, then you can read the manuals directly in the browser.

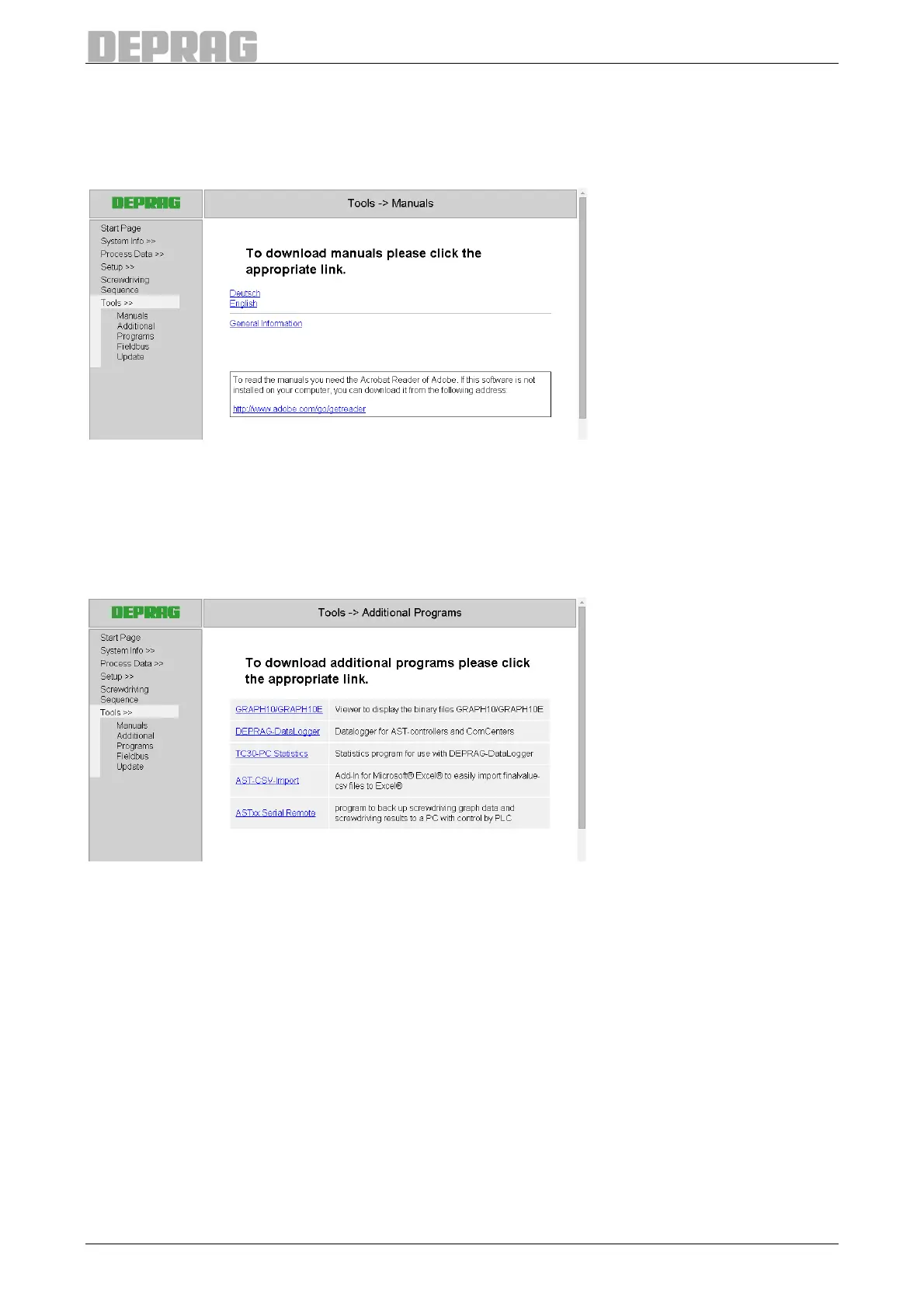

Figure 39: Manuals

8.3.4.16 Tools  Additional Programs

On this page you can download all programs which are available for the controller AST11.

Usage of the software is partly liable to pay costs. Please consider the notes regarding the

activation in the respective programs.

Figure 40: Additional programs
