113

17.10.4 TC30-PC Statistics

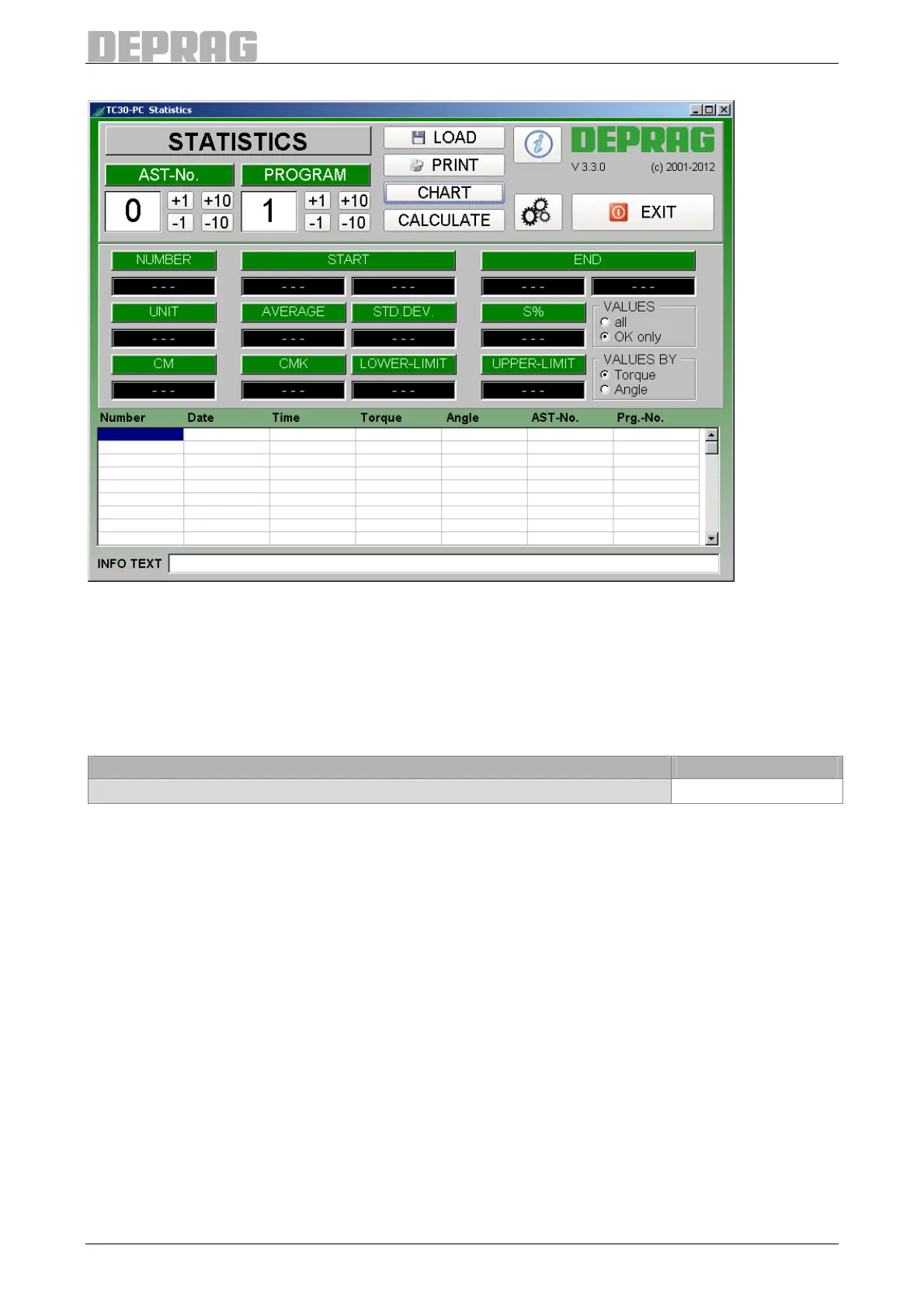

Figure 56: TC30-PC Statistics

TC30-PC Statistics is a statistics programme for use in combination with DEPRAG-

DataLogger. This software is for evaluation of the screwdriving data and calculation of av-

erage value, standard deviation and cmk value. For the graphic display several alterna-

tives may be selected.

The programme TC30-PC Statistics can be downloaded free of charge via the web inter-

face. However, the use of the program is subject to cost.

Designation Part no.

TC30-PC Statistics release key

206081
