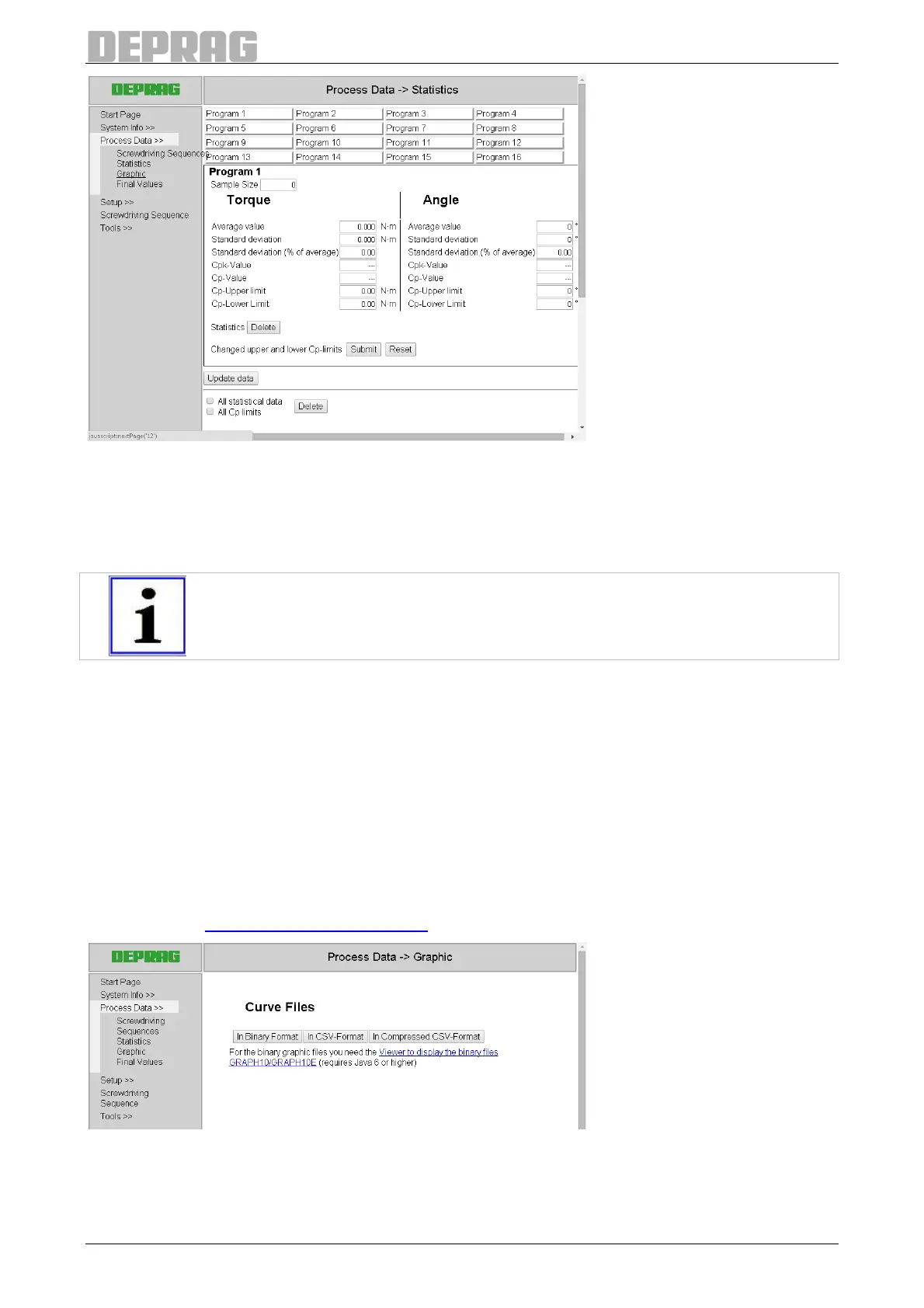

Figure 21: Statistics
Click on “Refresh data”, if further screw assemblies have been carried out whilst the statis-
tics page has been open.
In the lower half of the page the statistics data and the limit values of all programs can be
deleted.
IMPORTANT
Statistic values are only saved and analyzed if the "statistic" command in
the screwing sequence is open.
8.3.4.6 Process Data Graphic
This page provides the possibility to load the data of the last screwing application as a da-
ta from the sequence controller AST11. In principle, all screwing applications are recorded.
The record will be available until the sequence controller AST11 is switched off or a new
screw connection is established. It is furthermore possible to download, free of charge,
the viewing program GRAPH10(E) for the binary curve data.
If you click the blue note on the "Viewer for the display of binary data" then you will first
receive a detailed description of the installation of the GRAPH10 viewer. At the end of the
description you will find information to load the program onto your PC.
(Also refer to 12.2 Curve Representation)
Figure 22: Downloading curve data
