17.10.5 DEPRAG ASTxx Serial Remote

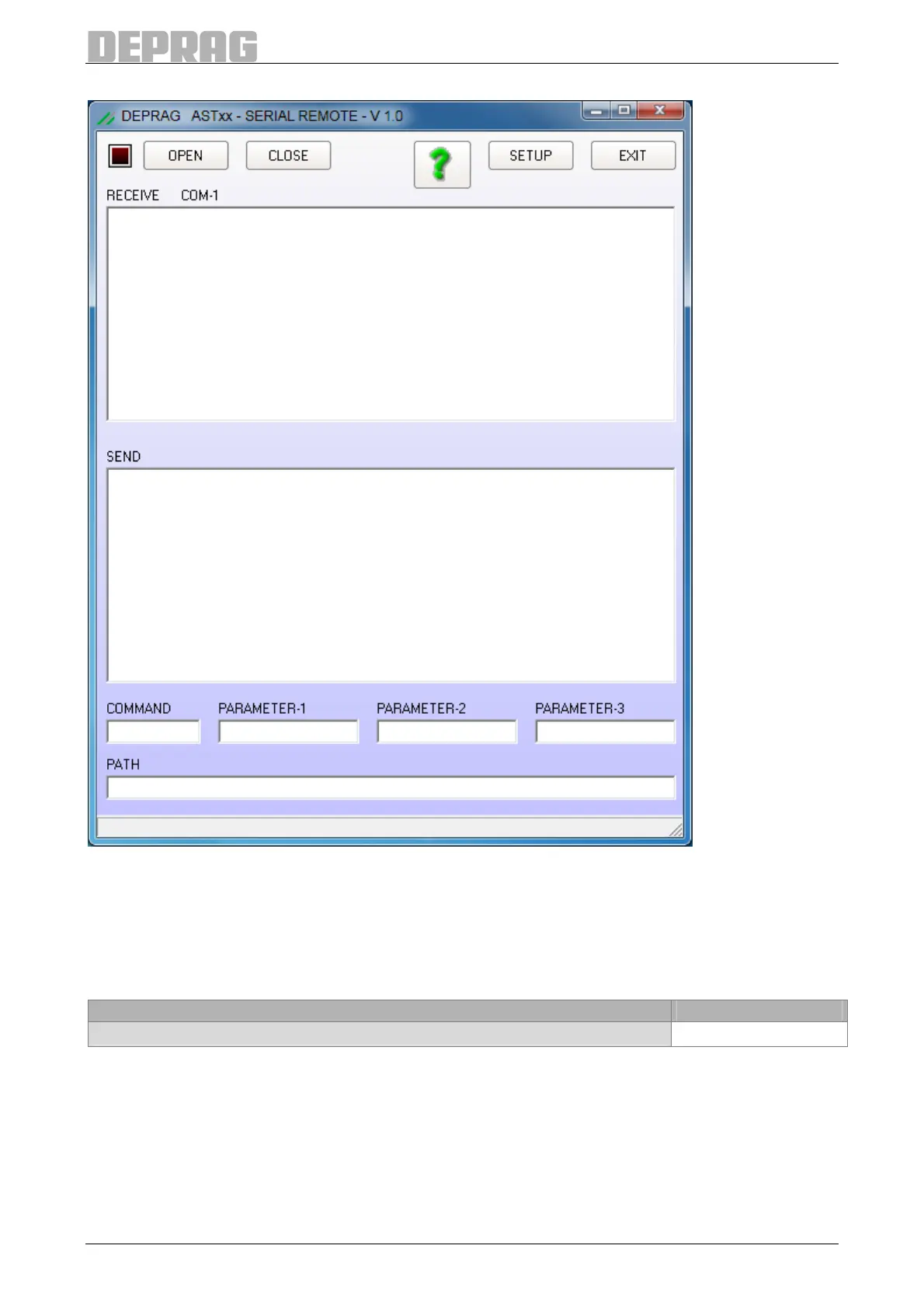

Figure 57: DEPRAG ASTxx Serial Remote

The ASTxx Serial Remote provides the possibility to save screwdriving graphs and end

value data sets from a sequence controller to a computer. The supervision, when and

which data should be saved, is done by a PLC.

The ASTxx Serial Remote program can be downloaded free of charge via the web inter-

face. However, the use of the program is subject to cost.

Designation Part no.

DEPRAG ASTxx Serial Remote release key 206565

Default Chapter2
