• Angle supervision: active / inactive
Monitoring of the angle with a window angle if the angle monitoring is switched on,
the following parameters are added:
◦ Threshold torque
Input of the torque from when the angle monitoring should be started (compare
point 1 in the previous figure).
◦ Angle upper limit
Upper limit of the end angle
◦ Angle lower limit
Lower limit of the end angle
11.1.5.3 Fasten dependent on friction value
The screwing sample friction dependent screwing connects the screwing sample friction
measurement and the screwing to differential moment.
Sequence of the screwing sample:

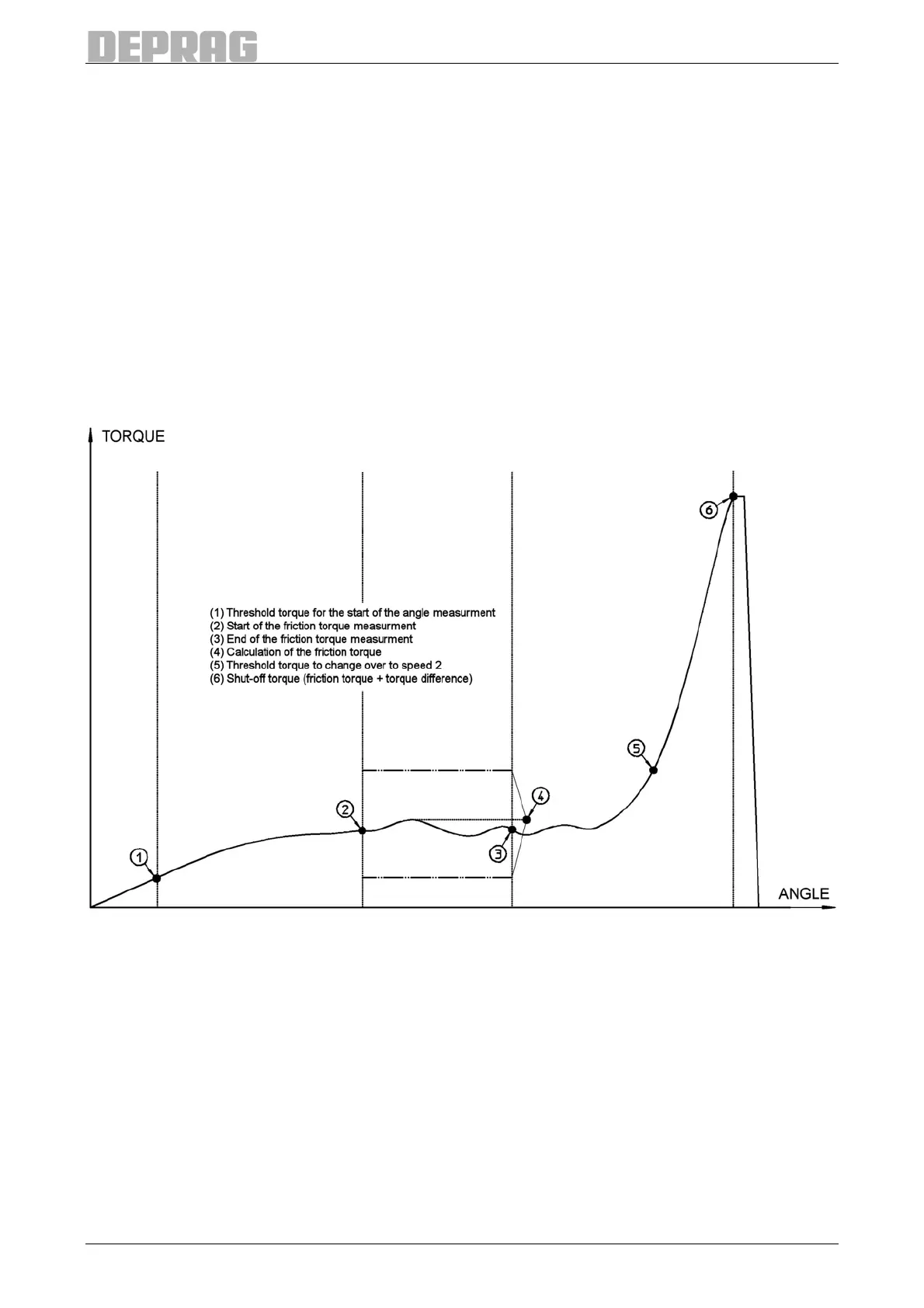

Figure 50: Screwing applications depending on friction
Switching off criteria:
The screwing process is ended once the
• cut-out torque is reached
• a monitoring criteria is reached
• the maximum screwing time (monitoring time) is expired
