20

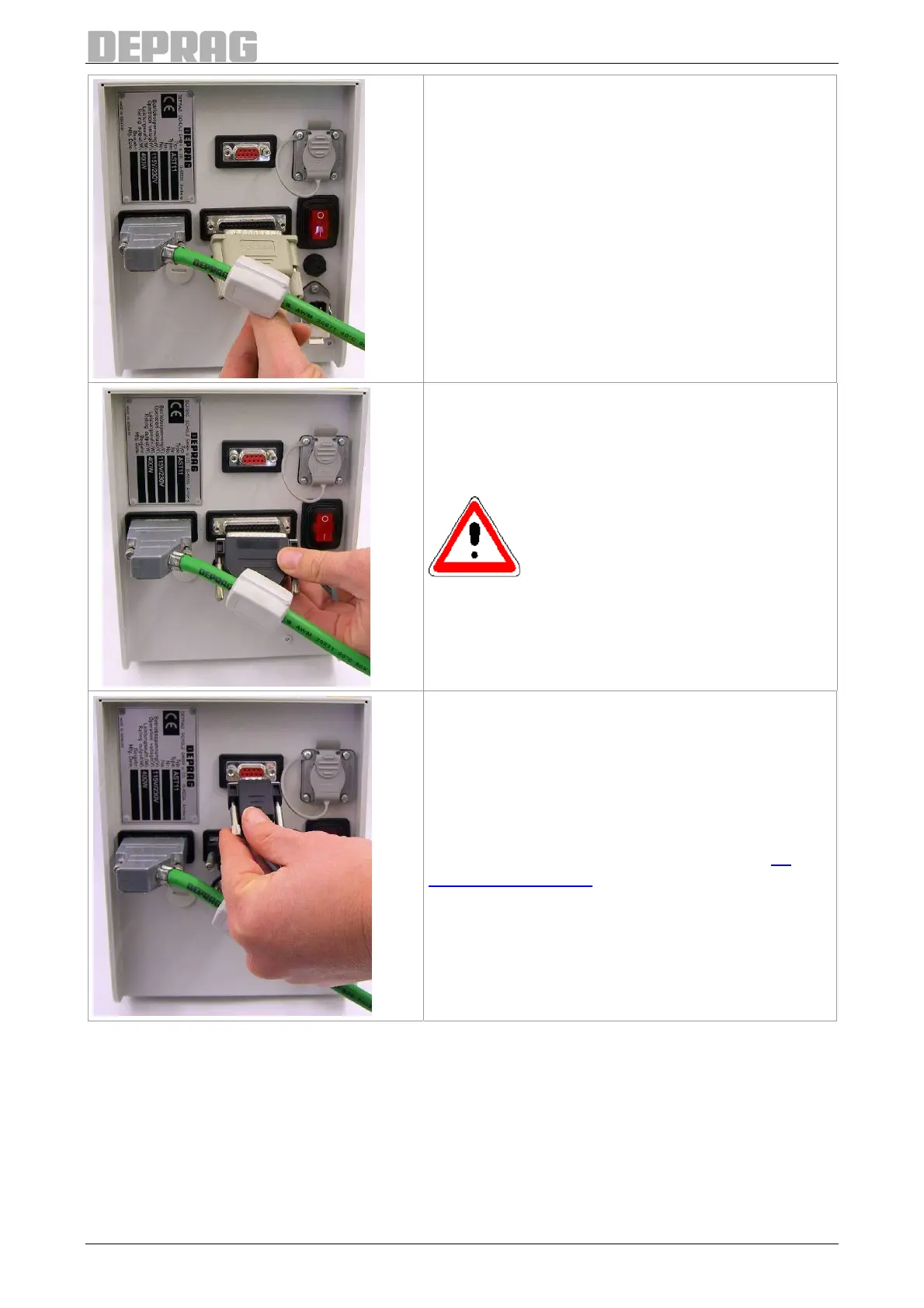

Optional:
Connect the plug of I/O-interface and screw on
the retaining screw tightly.
(to the GX6 interface)
ATTENTION
Sequence controller not function-
ing!
The interface GX6 must always be
occupied.
When the I/O interface is not in use
plug in the connector 385476 A.
Optional:
Multifunctional serial printe
r to connect a printer,
barcode scanner or fieldbus module, see
17
Optional Equipment
(Interface GX10)
19
21
