95-8533
2-9
18.2
EQ21xxPS Series Power Supplies and
EQ2100PSM Power Supply Monitor
The Power Supply, Power Supply Monitor, and
backup batteries are used to provide power
to the system. The power supply monitor
communicates trouble conditions to the
Controller. Monitored status conditions include:
power supply failure, loss of AC power, loss
of battery power, power ground fault, AC and
DC voltage (hi/low level), and backup battery
current charge levels.
The Power Supply provides main and backup
power to the EQP System. The device includes
many features such as voltage regulation, high
efficiency, and high power factor.
An equalize switch is located on the front
panel of the charger for manual activation,
or a multi-mode electronic timer can be used
for automatic activation. Steady state output
voltage remains within +/– 1/2% of the setting
from no load to full load for AC input voltages
within +/– 10% of the nominal input voltage.
EQP21xxPS(–X) Power Supplies and
EQP2410PS(–P) Converter
The Power Supplies and Converter provide
main and backup power to the EQP System
in ordinary and marine applications. Refer
to Section 3 of this manual for complete
information.
EQ2220GFM Ground Fault Monitor
The EQ2220GFM Ground Fault Monitor (see
Figure 2-9) provides ground fault monitoring
in a system that includes a floating 24 Vdc
power source. The device detects ground fault
conditions on +/– power and all secondary
I/O circuits. A positive or negative ground
fault condition is indicated immediately by
local LEDs, and by a relay contact after a 10
second time delay. The ground fault monitor is
intended to be mounted in the same enclosure
as the controller.
FIELD DEVICES
Flame Detectors
For flame detector installation, operation,
maintenance, specifications and ordering
information, refer to Table 2-8.
For information regarding USCG Approval of
the X3301 Flame Detector, refer to Appendix D.
NOTE
Existing Eagle Quantum field devices
such as EQ22xxUV and EQ22xxUVIR
are supported by the Eagle Quantum
Premier system (not FM Approved).
EQ2200UVHT + C7050 Detector
The EQ2200UVHT + C7050 UV Flame Detector
is used with the EQP system to provide UV
flame protection in continuous duty, high
temperature applications such as turbine
enclosures, generator rooms, etc. where the
ambient temperature can continuously exceed
+ 75 deg C (+ 167 def F). The EQ2200 UVHT
is an electronic module assembly that is used
in conjunction with a high temperature rated
C7050B detector.
Model HD Heat Detector
The Model HD Heat Detector senses the
surrounding air temperature and actuates an
electrical contact output at a pre-determined
temperature. It can be used to sense excessive
heat or fire and warn personnel, or it can be
used as a signaling device to sense fire and
send a signal to an alarm panel for actuation of
a fire suppression system.

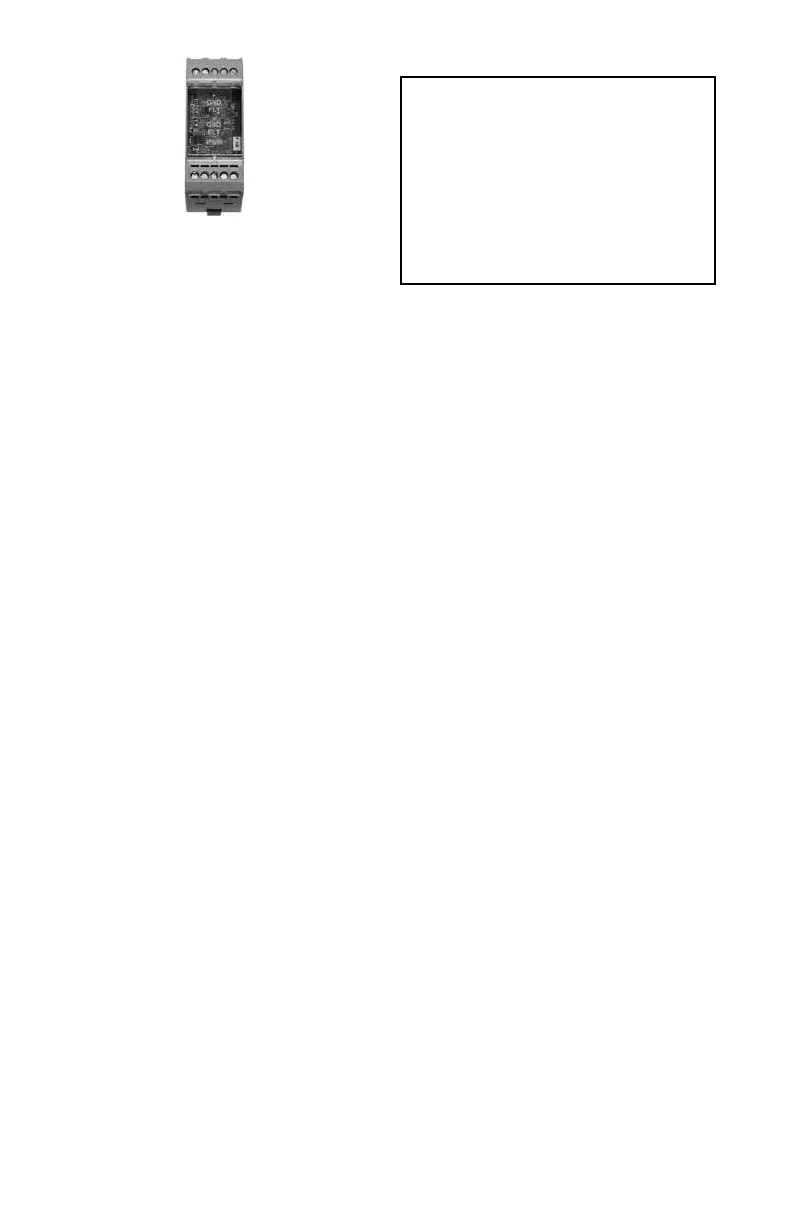

Figure 2-9—Ground Fault Monitor
Table 2-8—Flame Detector Instruction Manuals
Detector Manual Number
X3301 95-8704
X3301A 95-8527 & 95-8534
X3302 95-8576
X5200 95-8546
X2200 95-8549
X9800 95-8554
UVHT 95-8570
