Det-Tronics Eagle Quantum Premier - EQ3 LTM LON Termination Module

95-8533
6-3
18.2
EQ3LTM LON TERMINATION
MODULE
INPUT VOLTAGE—
24 Vdc nominal, 18 to 30 Vdc. 10% overvoltage
will not cause damage to the equipment.
INPUT POWER—
1 watt maximum.
TEMPERATURE RANGE—
Operating: –40°F to +185°F (–40°C to +85°C).
Storage: –-67°F to +185°F (–55°C to +85°C).
HUMIDITY RANGE—
5 to 95% RH, non-condensing.
DIMENSIONS—
See Figure 6-2.
SHIPPING WEIGHT—
0.5 pounds (0.2 kilograms)
CERTIFICATION—
FM / CSA: Class I, Div. 2, Groups A, B, C, D (T4).
Class I, Zone 2, Group IIC (T4 ).
Refer to Appendix A for FM Approval details.
Refer to Appendix B for CSA Approval details.
CE: ATEX/EMC Directive Compliant.
ATEX:
FM
APPROVED
®
II 3 G.
Ex nA IIC T4 Gc.
DEMKO 04 ATEX 138345X.
Tamb = –40°C to +85°C.
IECEx: IECEx ULD 10.0004X.
Ex nA IIC T4 Gc.
Tamb = –40°C to +85°C.
Note: Refer to Appendix C for ATEX and IECEx
approval details and Special Conditions for
Safe Use.
EQ3730EDIO ENHANCED
DISCRETE INPUT/OUTPUT
MODULE
POWER REQUIREMENTS—
3 watts nominal, 11 watts maximum.
INPUT VOLTAGE—
24 Vdc nominal, 18 to 30 Vdc. 10% overvoltage
will not cause damage to the equipment.
Note: Pre-action and deluge applications
further limit the lower operating voltage range,
refer to EDIO installation instructions in section
3.
OUTPUT CURRENT—
10.0 amperes maximum total current, 2.0
amperes maximum per channel.
SLC OUTPUT—
Digital communication, transformer isolated
(78.5 kbps).
TEMPERATURE RANGE—
Operating: –40°F to +185°F (–40°C to +85°C).
Storage: –67°F to +185°F (–55°C to +85°C).
HUMIDITY RANGE—
5% to 95% RH, non-condensing.
VIBRATION—
FM 3260-2000 (clause 4.9).
DIMENSIONS—
Refer to Figure 6-3.
SHIPPING WEIGHT—
1 pound (0.45 kilograms).
CERTIFICATION—
FM / CSA: Class I, Div. 2, Groups A, B, C, D (T4).
Class I, Zone 2, Group IIC (T4).
Refer to Appendix A for FM Approval details.
Refer to Appendix B for CSA Approval details.
CE: ATEX/EMC Directive Compliant.
ATEX:
FM
APPROVED
II 3 G.
Ex nA nC IIC T4 GC EN 60079-29-1.
DEMKO 05 ATEX 138864X.
Tamb = –40°C to +85°C.
0.7
(1.75)
2.95
(7.5)
1.87
(4.75)
2.16
(5.5)
A2253

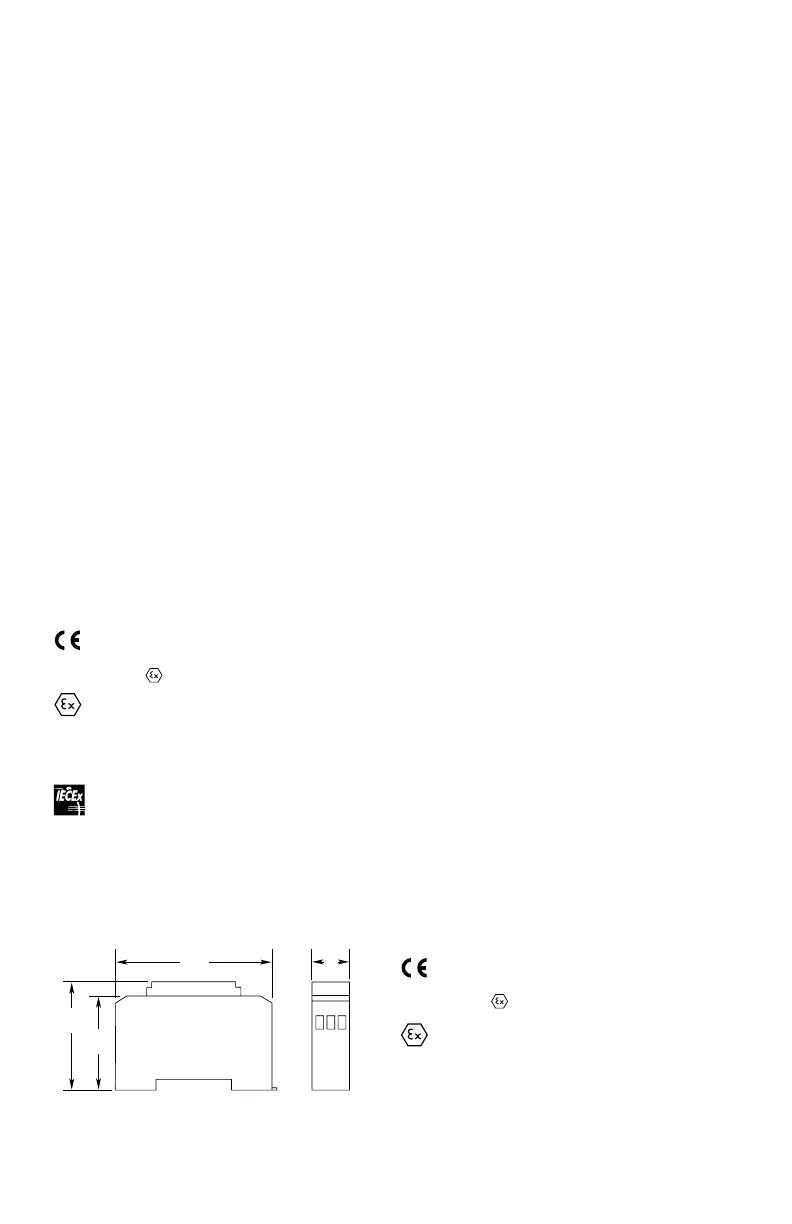

Figure 6-2—Dimensions of LON Termination Module and
HART Interface Module in Inches (Centimeters)
